High Capacity Hammer Roller Crusher for Brick Plant with Various Feed & Output Particle Sizes

Large Image : High Capacity Hammer Roller Crusher for Brick Plant with Various Feed & Output Particle Sizes

Product Details:

Place of Origin:	CHINA
Brand Name:	BBT
Certification:	ISO9001
Model Number:	HC1000B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 13000-16000/set
Packaging Details:	High Capacity Hammer Roller Crusher by common packaging
Delivery Time:	10-15days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10 set per month

Contact Now

High Capacity Hammer Roller Crusher for Brick Plant with Various Feed & Output Particle Sizes

Description

Brick Crusher:	High Capacity Hammer Roller Crusher For Brick Plant With Various Feed & Output Particle Sizes	Capacity:	23-36m3/hr
Power:	75kw	Crusher Of Size:	1400×1750×1880mm
Weight:	7000kg	Processed Material:	Clay, Mud, Soil,fly Ash
Brick Specification:	Solid /hollow	Crushed Material Size:	5-8mm
Highlight:	Clay Brick Plant Roller Crusher Machine , Clay Brick Making Hammer Crusher , 132kw Hammer Roller Crusher Machine

High Capacity Hammer Roller Crusher for Brick Plant with Various Feed & Output Particle Sizes

BBT full automatic clay brick production line machine hammer mill. Hammer crusher with big capacity hammer rolling crushing machinery for clay brick making plants.

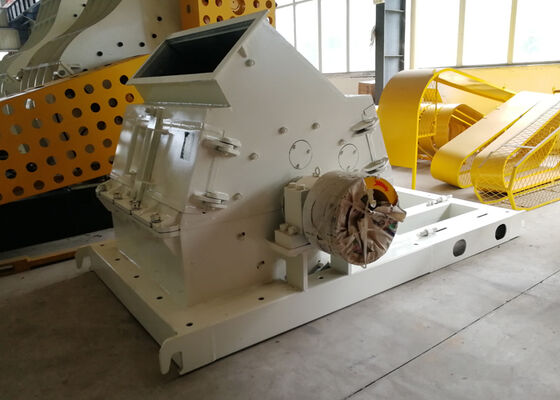

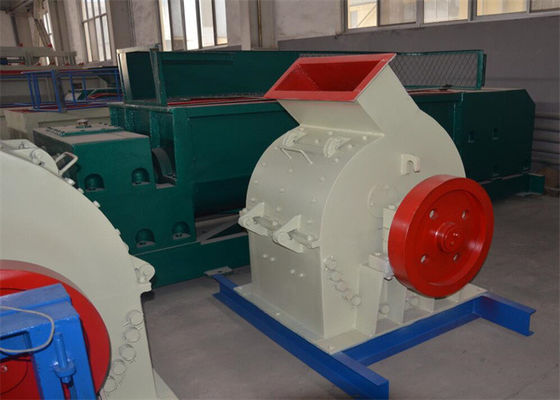

Hammer Crusher Overview:

This machine serves as the raw material crushing equipment in brick production lines. It's suitable for medium and fine crushing of brittle materials with moisture content below 12%.

Operation Principle

The rotor rotates at high speed driven by the motor. Materials entering the action zone are repeatedly crushed through impact with the plate hammer and counterattack device until reaching the desired size, then discharged from the machine's lower part.

Key Features

Large crushing ratio with simple structure
High production capacity with uniform granularity
Convenient and fast maintenance
Large inlet and outlet with high crushing chamber

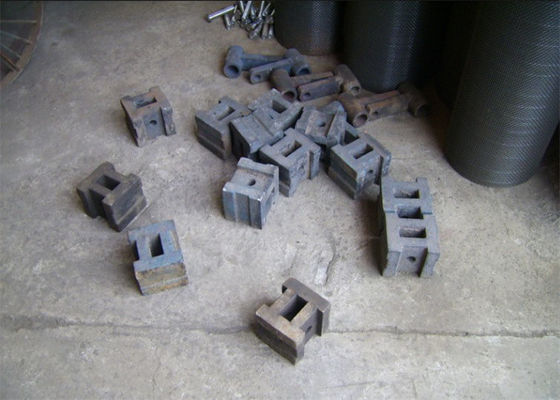

High chromium alloy hammer head for impact resistance
Low abrasion of machine parts with high comprehensive benefit

Technical Parameters:

Specification Model	Capacity (m³/hr)	Power Requirement (kw)	Material Granularity (mm)	Exterior Dimension (mm)
HC800B	18-26	Y4-55	0～5	1400×1050×1400
HC1000B	23-36	Y4-75	0～5	1400×1750×1880
HC1100B	38-52	Y4-90	0～5	1900×1630×1880
HC1200B	48-62	Y4-132	0～8	2300×2420×2170
