Mini Capacity Double Shaft Mixer for Clay Brick & Block Production

Mini Capacity Double Shaft Mixer for Clay Brick & Block Production
Basic Properties
Place of Origin: China
Brand Name: bbt
Certification: ISO9001
Model Number: TWGD
Trading Properties
Minimum Order Quantity: 1 set
Price: Referce for quotation sheet
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per mouth
Tags:

Double Shaft Mixer Machine

Extruder Double Shaft Mixer

Double Shaft Clay Mixer For Bricks
Product Summary
Mini Capacity Double Shaft Mixer for Clay Brick & Block Production TWGD Double Shaft Extruding Mixer Developed by integrating advanced technologies from international premium counterparts, the TWGD double shaft extruding mixer represents a cutting-edge product of our company and maintains a leading ...
Product Custom Attributes
Highlight

mini capacity double shaft mixer

,

block mixing double shaft mixer

,

clay brick double shaft mixer

Item:
Mini Capacity Double Shaft Mixer For Clay Brick & Block Production
Working Function:
Mixing Clay Raw Materials
Mixer Capacity:
20-30m3/hr
Stirrer Type:
Paddle Mixer
Additional:
Milling
Raw Material:
Clay ,mud,soil 1 Sets
Product Description
Detailed Specifications & Features

Mini Capacity Double Shaft Mixer for Clay Brick & Block Production



TWGD Double Shaft Extruding Mixer

Developed by integrating advanced technologies from international premium counterparts, the TWGD double shaft extruding mixer represents a cutting-edge product of our company and maintains a leading level among similar domestic equipment.

As professional raw material processing machinery, it is ideal for sintered brick production lines using clay, shale, coal gangue, sludge and other main raw materials.

It is mainly used for mixing, extruding and kneading raw materials with water, effectively improving the plasticity and formability of materials.

This machine features uniform mixing, strong bearing capacity, long service life and wide application range.

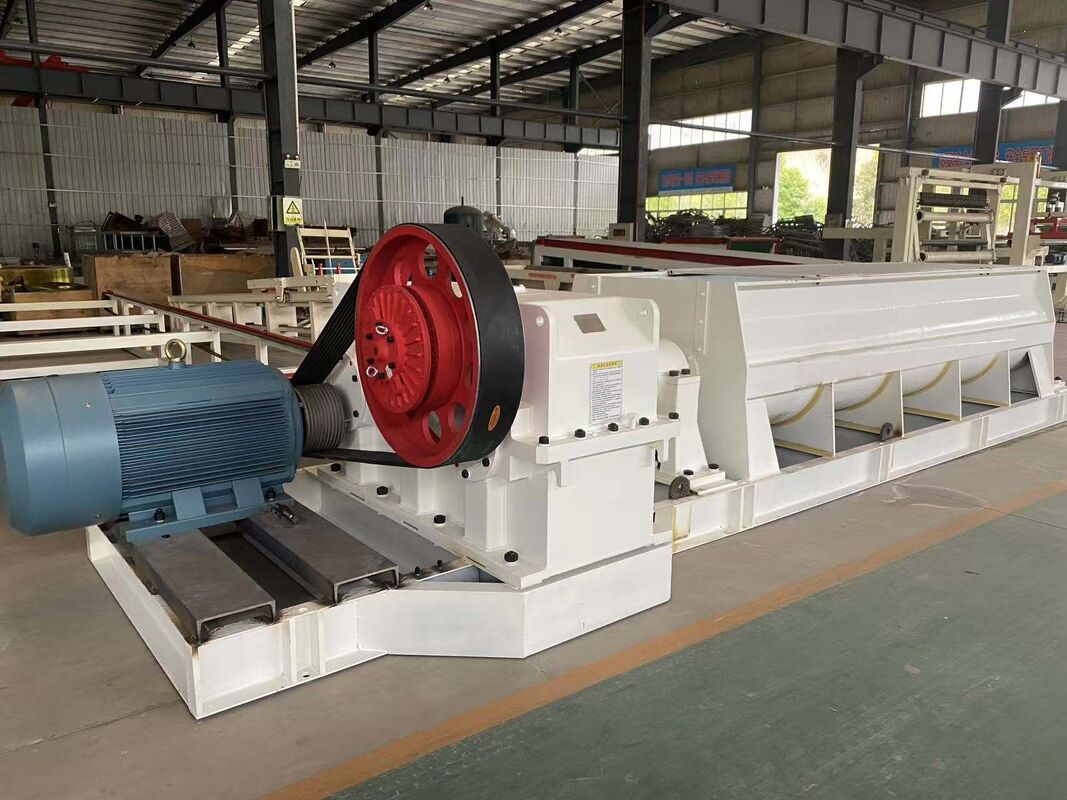

Mini Capacity Double Shaft Mixer for Clay Brick & Block Production 0



Double shaft mixer machinery

1.High efficiency, high wear - resistant alloy.It has high stirring efficiency and little floor space.The spiral blade is made of special alloy with high wear resistance.
2.Low noise.the double shafts mixer adopts reducer drive, steady rotation and low noise.
3.Reasonable structure.In order to improve the mixing uniformity; we use new rotor structure, the rotor and mixing chamber are so close to the minimum gap which can be adjusted to zero mm,
4.Smooth operation.The sealing between the joints is tight and the operation is smooth.



BBT Mini Double Shaft Mixer for Clay Brick Making

Mini Capacity Double Shaft Mixer for Clay Brick & Block Production 1



Double Shaft Mixer Shipped to Customer

Mini Capacity Double Shaft Mixer for Clay Brick & Block Production 2



Double Shaft Mixer Installed for Customer's Automatic Brick Production Line



Mini Capacity Double Shaft Mixer for Clay Brick & Block Production 3



Brick mixing machine of technical parameters:

Specification Model Capacity (m³/hr) Power Requirement (kw) Rotate Speed(t/m) Exterior Dimension (mm)
TWGD3300 22-26 Y6-45 35 5170*1470*870
TWGD3600 23-31 Y6-55 35 5480*1520*930
TWGD4000 28-41 Y6-75 35 5500*1520*980
TWGD5000 33-47 Y6-110 35 5800*1600*1200
TWGD4100 37-41 Y6-75 35 5170*1470*870



BBT Double Shaft Mixer Raw Material Mixing Equipment for Automatic Brick Plant
