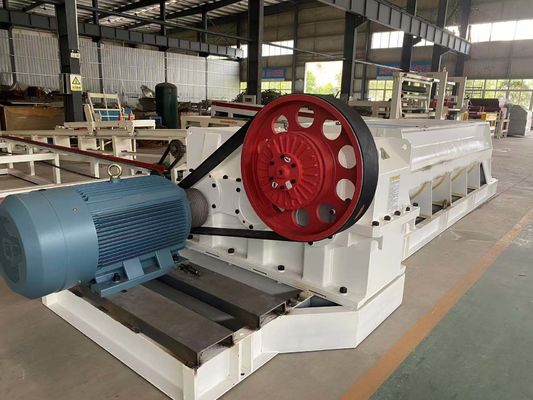

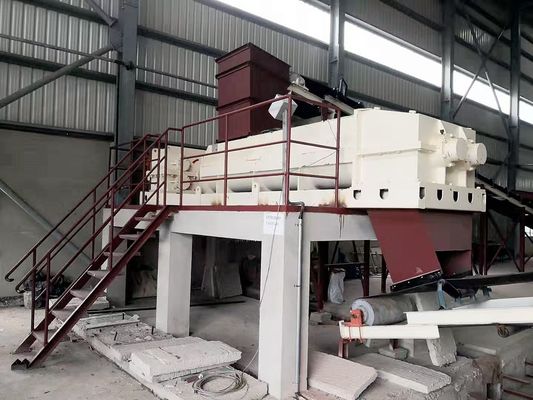

Double shaft extruding mixer

TWGD30/50 model double shaft extruding mixer is a raw material processing equipment, suitable for sintered brick production lines fired with clay, shale, coal gangue and sludge as the main raw materials. It is mainly used for stirring, extrusion and kneading of mixed materials and water to improve the plasticity and forming ability of raw materials. It has the characteristics of uniform stirring, strong load bearing capacity, long service life and wide application range.

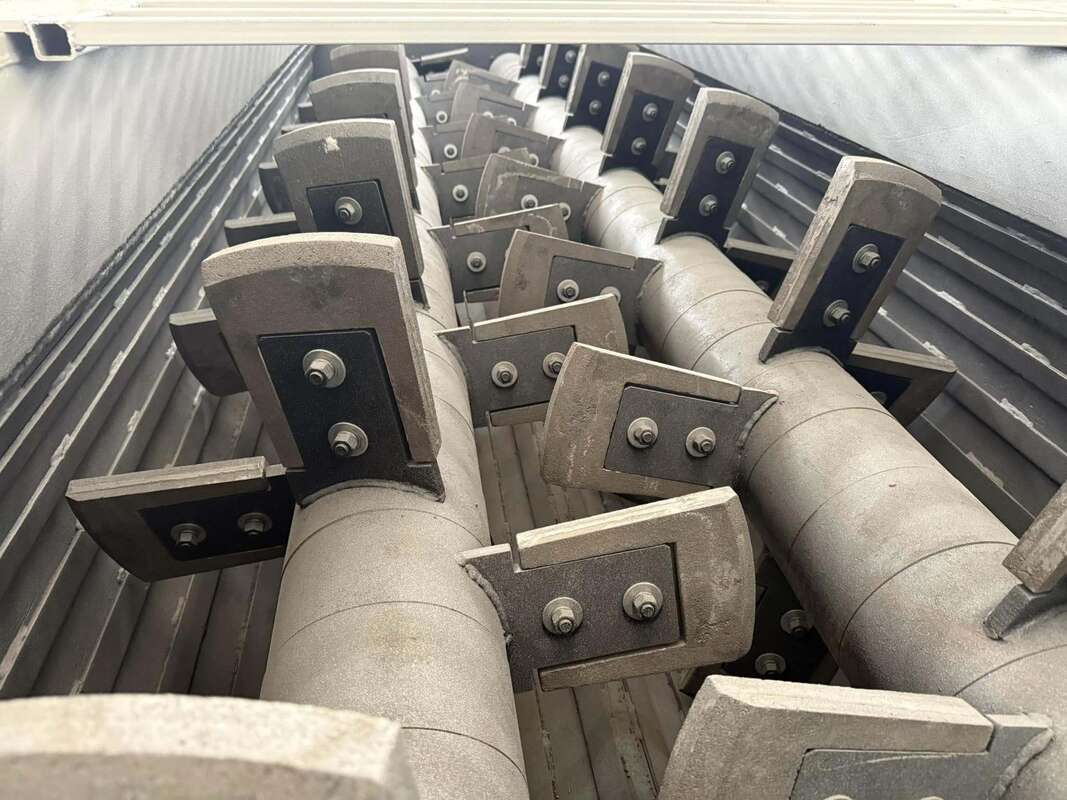

The power drives the two shafts of the mixer to rotate in opposite directions through the reducer and the gear pair of the gearbox. The two shafts are respectively equipped with stirring knives with opposite directions. The stirring knife makes the material toss, shear and convection; at the same time, the water spray system sprays mist water to the material, and mixes it with it. During this process, the kneading effect between the mud materials further improves the homogenization effect on raw materials of different properties.

A pneumatic clutch is arranged between the motor and the reducer, which can realize the unload start of the motor and also provide overload protection. The extrusion reamer and the inner and outer conical sleeves are all made of wear-resistant alloy steel, which is wear-resistant and easy to replace.

BBT supply full auto clay brick making line machinery and equipment

TCNL series of Chain full steel type box feeder

TWGD series of double shaft mixer

GS series of roller crusher

TRA series of double tooth roller crusher

TWJH series of front grid extruding mixer

TWPM series of wet pan mill

QTQG series of cutter

EV series of vacuum extruder

Robot setting machine

Brick machine spare parts

BBT provide full automatic clay brick making project design, construction and technical supporting.
