Product Details:
Place of Origin: China
Brand Name: BBT
Model Number: EV60A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Delivery Time: 60 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 15 sets/50 days

Automatic Vacuum Extruder Clay Brick Making Machine For Solid / Hollow Bricks

Description
Applicable Industries:: Clay Brick Making Plant Automatic: Yes
Method: Vaccum Extruding Materials: Steel
Color: White Or Customized Production Capacity: 18,000-25,000pcs/h
Dimension: 7,500*2,900*2,800mm Weight: 30,000kg
Warranty: 2 Year After-sales Service Provided:: Engineers Available To Service Machinery Overseas
Highlight:

Hollow Bricks Vacuum Extruder Clay Brick

,

Solid Bricks Vacuum Extruder Clay Brick

,

Automatic Clay Brick Making Machine

EV60A Vacuum Extruder Clay Brick Making Machine for Solid and Hollow Bricks



Descriptions of EV60A Vacuum Extruder Clay Brick Making Machine for Solid and Hollow Bricks



The machine is suitable for continuous extruding of wet clay and is a key functional machine in the molding section of brick production line.

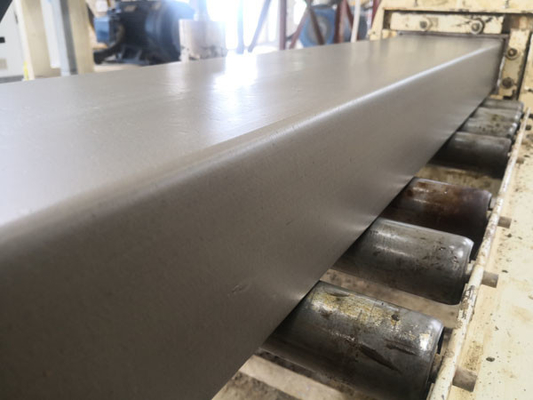

The mud bar extruded by the equipment has a smooth and compact surface, good quality, large extrusion output, easy operation, stable operation and good reliability.



The machine can produce solid brick, hollow brick, porous brick, hollow block and other brick.

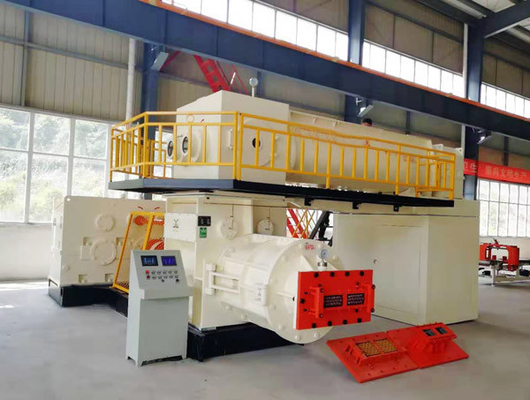

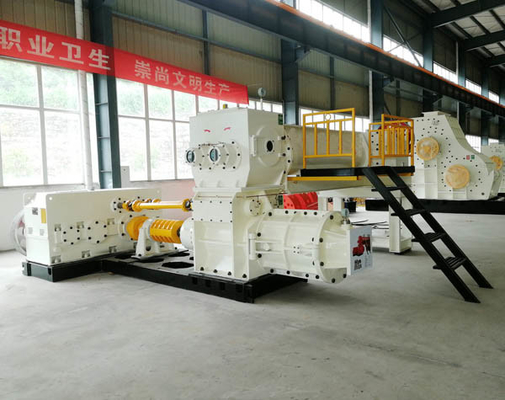

The machine is composed of upper mixing part, vacuuming part and lower extruding part.



The extruder body is welded with high quality steel plate, and the residual stress inside the parts is removed after aging treatment, which increases the hardness and strength. The structure design of the extruder is reasonable, the machine body is solid, stable, reliable and durable. Low energy consumption, high production efficiency and easy maintenance.





Features of EV60A Vacuum Extruder Clay Brick Making Machine for Solid and Hollow Bricks



1. Multi-purpose, functional diversity, through purchase using corresponding head, can produce different varieties, specifications of the brick and tile;

2. Maximum throughput thanks to optimized filling of the de-airing chamber;

3. Reduce the labor, improve the labor efficiency, to minimize the cost of production;

4. High products strength, smooth surface appearance;

5.  Finished products with perfect structure, which has many varieties and high density and strength, precise size, can meet all requirements of building;

6. Safety and control;

7. Maximum versatility;





Technical Parameters of ​EV60A Vacuum Extruder Clay Brick Making Machine for Solid and Hollow Bricks


No. Model EV60A
1 Production capacity 18,000-1925000pcs/h
2 Extrusion pressure ≤4.0Mpa
3 Vacuum degree ≥-0.092
4 Rotate speed of extruding shaft 20rpm
5 Diameter of reamer

Material transporting part :600mm

Extruding part :600mm

6 Vacuum pump 2SK-12
7 Reducer

Upper stage: i=20.49

Lower stage: i=24

8 Triangle belt

Upper stage:5V-4600*6

Lower stage:5V4800*10

9 Power 250+75kw
10 Dimension 7,500*2,900*2,800mm
11 Weight 30,000kg

























































Applications of EV60A Vacuum Extruder Clay Brick Making Machine for Solid and Hollow Bricks in Bangladesh

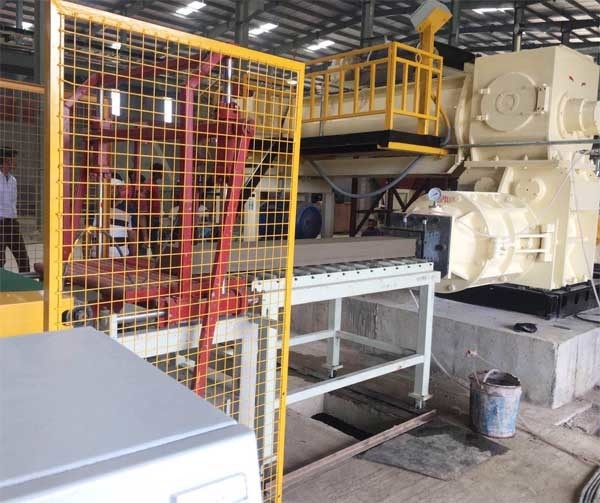

This Vacuum Extruder was installed in bangladesh project in 2018, and which achieve good performance with big output in fully auotomatic brick making plant. The plant is deisnged with 1000,000pcs per day with solid and hollow bricks, adopting two-time setting and firing technology with single layer drying technology.



Automatic Vacuum Extruder Clay Brick Making Machine For Solid / Hollow Bricks 0



Automatic Vacuum Extruder Clay Brick Making Machine For Solid / Hollow Bricks 1
