Solid Red Clay Brick Dryer Machine Single Layer Brick Drying Machine

Bricks Dryer for Red Clay Brick Making plant Single Layer Drying Chamber Dryer Brick Drying Room

1. Brick drying is an indispensable link in brick and tile production. The length of the drying cycle and the quality of drying directly affect the quality and output of brick and tile products;

2. This drying process is suitable for the production of solid bricks, porous bricks, dry wall bricks and floor bricks; it can also be used in the production of wall panels, thermal insulation blocks, hollow blocks and hollow bricks;

3. Chamber type single-layer drying chamber is a modular process, and the number of drying chambers can be selected according to different capacity requirements;
4. The maximum number of drying chambers is 12 chambers, and the maximum production capacity is 40 million pieces/year clear bricks or 150,000 cubic meters/year hollow blocks;
5. The degree of automation of the process is high, the residual moisture content after drying is less than 3%, and the drying efficiency is high;

Working Principle of Bricks Dryer for Red Clay Brick Making plant Single Layer Drying Chamber Dryer Brick Drying Room:

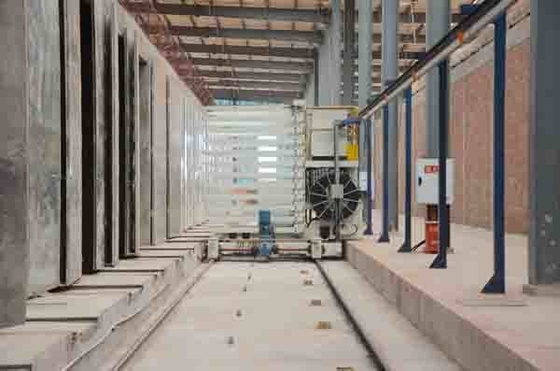

When the drying room is working, the wet blanks are stacked on the pallet and sent to the drying room by the sub-forklift truck; the heat source of the drying room comes from the waste heat of cooling the finished bricks in the tunnel kiln, and the dry hot air medium is transported to the top of the drying room through the external pipeline system. The internal cyclone is evenly blown onto the bricks being dried; the moist and cold air with water sinks into the moisture exhaust air duct at the bottom, is accelerated by the moisture exhaust fan, and is discharged through the chimney at the end of the drying chamber.

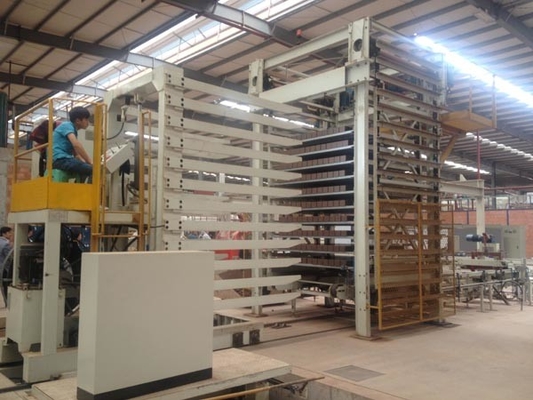

Different Types of Bricks Dryer for Red Clay Brick Making plant Single Layer Drying Chamber Dryer Brick Drying Room:

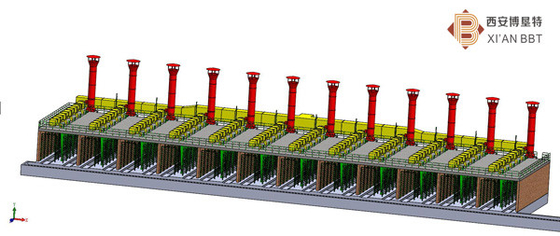

Constructions of Bricks Dryer for Red Clay Brick Making plant Single Layer Drying Chamber Dryer Brick Drying Room:
