clay brick mixer filter mixing machine block mix for clay brick making factory

clay brick mixer filter mixing machine block mix for clay brick making factory
Basic Properties
Place of Origin: China
Brand Name: BBT
Certification: ISO9001
Model Number: TWJH550
Trading Properties
Minimum Order Quantity: 1 set
Payment Terms: L/C, T/T
Supply Ability: 10 set per month
Tags:

Double Shaft Mixer Machine

Extruder Double Shaft Mixer

Double Shaft Clay Mixer For Bricks
Product Summary
Red clay brick mixer filter mixing machine block mix for clay brick making factory Mixing machine filter mixer for thin-walled hollow blocks clay raw material treatment mixing equipment TWJH550 front grid mixer extruder is a new product developed by our company on the basis of absorbing the advanced ...
Product Custom Attributes
Highlight

Clay Brick Mixer Filter Machine

,

Clay Brick Mixer Filter

,

block mix clay brick mixer

Rotating Diameter Of The Stirring:
550mm
Production Capacity:
45-50m3/hr
Rotating Speed:
30rpm
Name:
Clay Brick Mixer Filter Mixing Machine Block Mix For Clay Brick Making Factory
Product Description
Detailed Specifications & Features

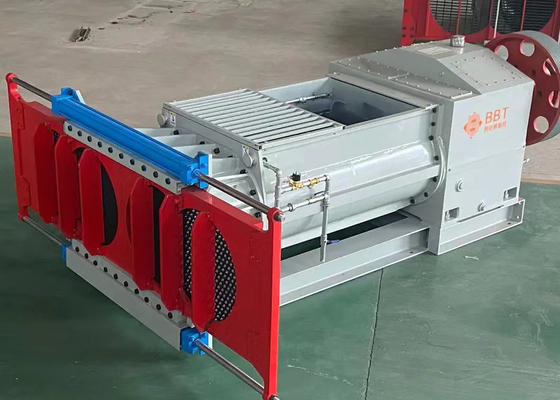

Red clay brick mixer filter mixing machine block mix for clay brick making factory

clay brick mixer filter mixing machine block mix for clay brick making factory 0

Mixing machine filter mixer for thin-walled hollow blocks clay raw material treatment mixing equipment

clay brick mixer filter mixing machine block mix for clay brick making factory 1

TWJH550 front grid mixer extruder is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China.

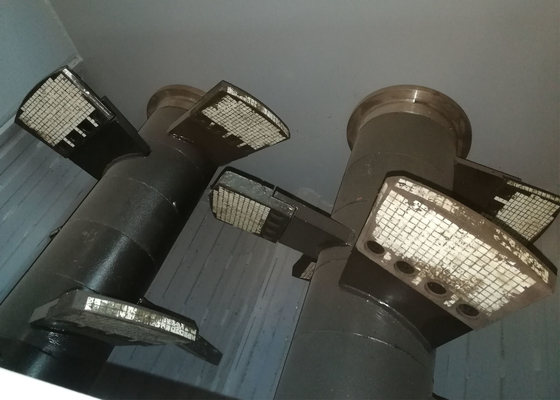

The function of the front grid mixer: homogenize and mix raw materials through biaxial stirring; Through reamer extrusion, strengthen the mutual penetration of water between raw materials and improve the plasticity of materials.

It is equipped with a mesh plate to increase the resistance, thereby improving the kneading efficiency of the raw materials, and can filter the grass roots and bark in the soil, reducing the blockage of the brick machine mold and the probability of breaking the steel wire of the blank cutting machine.

Red clay brick mixer filter mixing machine block mix for clay brick making factory



clay brick mixer filter mixing machine block mix for clay brick making factory 2



clay brick mixer filter mixing machine block mix for clay brick making factory 3



clay brick mixer filter mixing machine block mix for clay brick making factory 4



clay brick mixer filter mixing machine block mix for clay brick making factory 5



clay brick mixer filter mixing machine block mix for clay brick making factory 6



clay brick mixer filter mixing machine block mix for clay brick making factory 7



Filter mixer of technical paramerters:

Item TWJH-550 TWJH-750
Diameter of auger 550mm 750mm
Rotate speed for main shaft ≥30 rpm ≥30rpm
Motor Power 90+5.5 kw 132-160kw
Diameter for screen hole Customized building Customized building
Production capacity 45-50 m³/h 60-75 m³/h
Total weight of equipment 8900 kg 15800 kg



Filter mixer for clay brick making plant machinery

clay brick mixer filter mixing machine block mix for clay brick making factory 8



clay brick mixer filter mixing machine block mix for clay brick making factory 9



Filter mixer machine in auto brick production line

clay brick mixer filter mixing machine block mix for clay brick making factory 10

clay brick mixer filter mixing machine block mix for clay brick making factory 11
