1. Introduction for high speed refine roller crusher for clay brick making output diameter 0-3mm, raw material further processing
The refine roller crusher is one of the main equipment in the raw material preparation of clay brick making, and it is suitable for fine treatment of wet and soft raw materials.

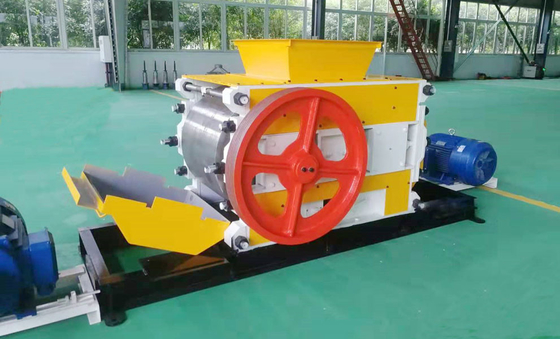

GS800*600 Refine roller crusher/High Speed Rolling Crusher
1. NEW roller crusher in stock, delivery time 5 days;
2. Capacity 23-37m³/h, 35-60 tons/h;
3. Diameter of roller 800mm, width of roller 600mm;
4. Raw materials input size of clay ≤20mm;
5. Output size ≤3mm
6. Power 30+37kw;
7. Dimension 5,000*1,400*1,430 mm;
8. Weight 5.7 tons

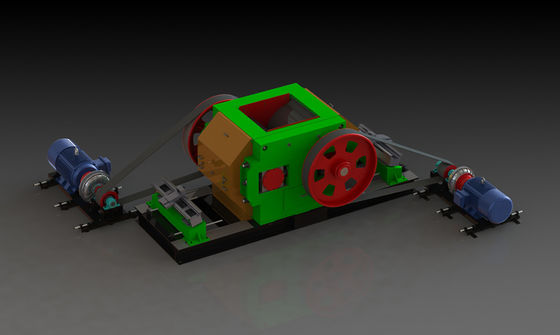

2. Structure of the refine roller crusher for clay brick making preparation
The roller clearance of the refine roller crusher is less than or equal to 3mm, and the refine roller crusher is equipped with heavy body itself.
The side frame is a welded rigid structure, which is machined to ensure the accuracy and shock resistance, and ensure the safe and stable operation of the equipment.
When the roller is worn, the roller ring is automatically repaired by a special grinding lathe to ensure the working quality of the equipment.
The grinding lathe is optional.
3. Structure of roller for the high speed refine roller crusher
In order to ensure a better neutral and support strength, the 2 rollers are supported by adjustable rolling bearing inside the high speed refine roller crusher.
The moving roller adopts pressure spring to increase force, and the crushing pressure can be adjusted according to different raw materials.
When the hard object is stuck, the spring compression will not cause damage to the roller ring.
4. Scraper for the high speed roller crusher
ll adopts cylinder loading, close to the roller, hexagram mud effect is good, and easy to repair and replace the scraper.
Each roller is equipped with an independent stepless speed reduction motor, which is used to drive the roller when the roll is repaired without starting the main motor drive. It is energy-saving and safe.
5. Techncial specifications for high speed roller crusher for clay brick making
| No. |
Model |
GS80 |
| 1 |
Size of roll(diameter * width) |
800x600 |
| 2 |
Hardness of roll |
≥53 HRC |
| 3 |
Thickness of roll surface |
≥120 mm |
| 4 |
Space of roll |
＜3 mm |
| 5 |
Power |
37+30 kw |
| 6 |
Liner speed of rollers |
1412 m/S |
| 7 |
Production capacity |
30-50 tons/h |
| 8 |
Weight |
5,900 kg |
| 9 |
Dimension |
5122*1400*1430 mm |
6. Questions and answers
a. Which part the refine roller crusher is using for please?
Answer: The high speed refine roller crusher is using after primary roller crusher in the production line of clay brick making.
b. How long of the guartee time for the high speed roller crusher?
Answer: 1 year
c. If installation drawings is provided when the refine roller crusher is installed?
Answer: Drawings are provided when order is confirmed.
d. Training operation for the high speed roller crusher is provided or not?
Answer: Yes, it is.
e. Spares for refine roller crusher is provided or not?
Answer:Yes, it is.
f. Online inspection for the high speed roller crusher is available or not?
Answer: Yes, it is.
g. Shipment by railway, by truck and by sea are available or not?
Answer: Yes it is

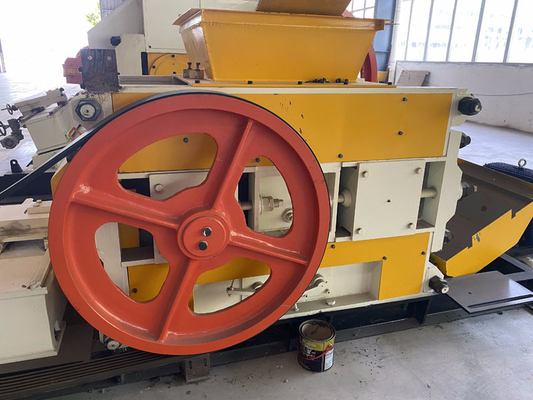

7. Pictures and spares for refine roller crusher for clay brick making
