Custom Automatic Loading And Unloading System 220V 380V For Producing Floor Tiles

Loading And Unloading System Is Suitable For Producing Floor Tiles And Used For The Single Layer Chamber Drying Mode

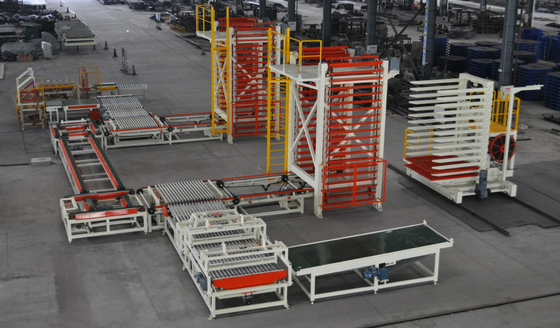

Loading and unloading system

The system is used for the single layer chamber drying mode. Which is used for loading green bricks on the pallet or unloading dried bricks from pallet.

The system is suitable for producing floor tiles, porous bricks and high hole rate hollow bricks with annual output of 40 million bricks below, and suitable for all kinds of raw materials.

According to the actual production requirements of customers, combined with the two time setting and firing process to provide customized, personalized automatic frame equipment, to achieve the brick factory with unmanned operation, full automation and intelligent. Which is also can meet the product diversification and ensure product quality.

Key Equipment

Waste Brick Treatment Bench

The purpose of the device is to automatically send the bad bricks produced by the broken cutting wire in the work of the cutting machine to the waste brick belt, and the qualified bricks to the departing belt conveyor.

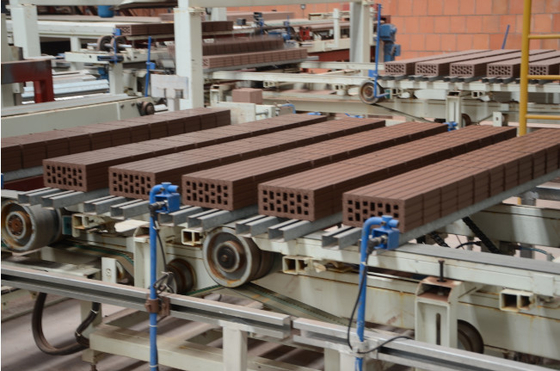

Departing Belt Conveyor

Departing belt conveyor is an equipment for departing qualified bricks automatically due to the belt speed difference. Its purpose is to depart the bricks sent by the cutting machine and send the bricks to the programming bench.

Programming Bench

The automatic programming bench is the key equipment in the brick production line. It is located between the cutting equipment and the stacking equipment in the technological position. The automatic programming bench has many functions such as conveying, turning over, grouping and departing.

Pallet Conveyor

Transport the green brick pallet to loading part; Transport the dry brick pallet from the loading shelf to the programming table

Loading Shelf, Unloading Shelf

The loading shelf stores a whole son-cart's pallets with green bricks and wait for the mother-cart transported that to the drying room; The unloading shelf stores a whole son-cart's pallets with dried bricks.

Forklift

Transport the pallet with green bricks into the drying room; Transport the pallet with dried bricks from the drying room to the unloading shelf.
