50 - 130 T/H Dual Shaft Mixer Front Grid Raw Material Processing Equipment

50 - 130 T/H Dual Shaft Mixer Front Grid Raw Material Processing Equipment
50 - 130 T/H Dual Shaft Mixer Front Grid Raw Material Processing Equipment 50 - 130 T/H Dual Shaft Mixer Front Grid Raw Material Processing Equipment 50 - 130 T/H Dual Shaft Mixer Front Grid Raw Material Processing Equipment

Large Image :  50 - 130 T/H Dual Shaft Mixer Front Grid Raw Material Processing Equipment

Product Details:
Place of Origin: Chongqing, China
Brand Name: BBT
Model Number: JH-750
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Suitable for sea shipment by container
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Contact Now

50 - 130 T/H Dual Shaft Mixer Front Grid Raw Material Processing Equipment

Description
Voltage: 220V/380V After-sales Service Provided: Online Support
Power(w): 160+5.5 Kw Condition: New
Warranty: 1 Year Dimension(l*w*h): 4,420*4,950*1,800 Mm
Function: Mixing Raw Material Capacity: 90-130 T/h
Highlight:

130 T/H Dual Shaft Mixer

,

Front Grid Dual Shaft Mixer

,

Dual Shaft Raw Material Processing Machinery

Capacity 50-130 T/H Front Grid Mixer Raw Material Processing Equipment

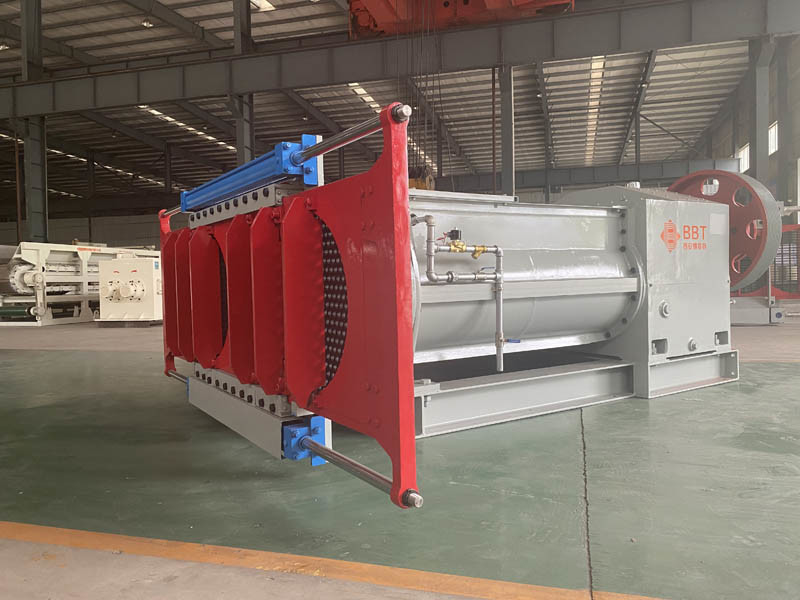

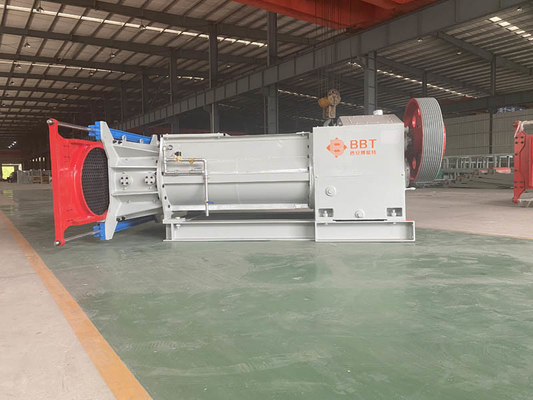

Front Grid Mixer



Function of the front grid extruder is to mixture the raw materials uniformly, and increase the plasticity when come  through the auger extruder.

It is equipped with a front grid to increase the extrusion pressure, thereby increasing the density of the raw material,  and can filter the grass roots, bark and other debris in the mud, reduce the blockage rate of the brick making machine,  and greatly reduce the production cost which caused by blockage.

Especially suitable for thin-walled and high-quality brick or block making.

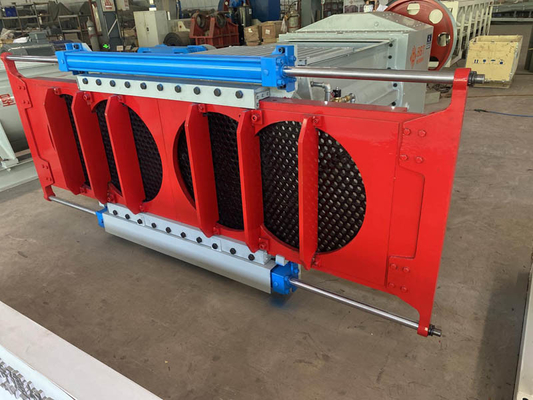

The grid is controlled by the hydraulic system, which can be replaced and cleaned without stopping the working of the
machine, avoid the economic loss caused by the shutdown.

50 - 130 T/H Dual Shaft Mixer Front Grid Raw Material Processing Equipment 0

Technical Parameters

No. Model JH-750 JH-650 JH-550
1
Length of Stirred Tank
1,600 mm
1,500 mm
1,400 mm
2
Speed of Main Shaft
≥26 rpm
≥26 rpm
≥26 rpm
3
Swing Dia. of Stirring Knife
750 mm
650 mm
550 mm
4
Power
160+5.5 kw
110/90 kw
90/75 kw
5
Capacity
90-130 t/h
80-100 t/h
50-80t/h
6
Total Weight
18,000 kg
15,500 kg
12,500 kg
7
Dimension
4,420*4,950*1,800mm
4,200*4,500*1,800mm
4,200*4,400*1,600mm





50 - 130 T/H Dual Shaft Mixer Front Grid Raw Material Processing Equipment 1





Our service



Welcome to contact with BBT

BBT supply following machinery and project :

1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)

2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )

3. Brick kiln project ( hoffman kiln, tunnel kiln )

4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)

5. Kiln firing system ( coal / gas /oil combustion system ,control system )

6. Whole brick making project design and construction .
