Fine Mill Roll Crusher Machine 30 - 50t/h Production capacity For Brick Making
Mill Roll Crusher Machine
,Fine Roll Crusher Machine

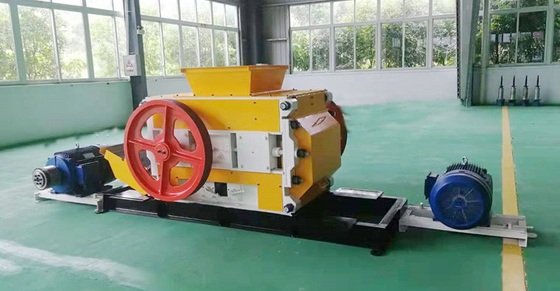

GS8060 Roller Mill Fine Roller Crusher for Clay Brick Making and Minerals Processing
Materials type: wet and soft raw materials;
Materials feeding size: less than 20mm;
Materials size after crushed: less than 3mm.

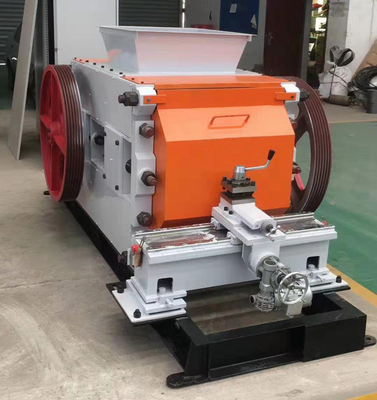

Struactures of GS8060 Roller Mill Fine Roller Crusher for Clay Brick Making and Minerals Processing
Roller: supported by adjustable rolling bearing to ensure a better neutral and support strength.
The moving roller adopts pressure spring to increase force, and the crushing pressure are adjustable with working of different raw materials.
Screw Device: Both sides of the fixed roller are equipped with screw adjusting devices to adjust the position after the size of the roller is reduced.
The inside of the moving roller is equipped with a limit screw to ensure the adjustable roller clearance.
Scraper:All adopt cylinder loading, close to the roller, hexagram mud effect is good, and easy to repair and replace.
The roller ring and the hub adopt separate structure and are connected together by high-strength bolts to facilitate maintenance and replacement of the roller ring, which made of manganese steel with characteristics of high wear resistance, high strength and easy maintenance.
Each roll is equipped with an independent stepless speed reduction motor, which is used to drive the roll when the roll is repaired without starting the main motor drive. It is energy-saving and safe.
Technical Parameters of GS8060 Roller Mill Fine Roller Crusher for Clay Brick Making and Minerals Processing
| Item | Unit | GS8060 |
| Production capacity | t/h | 30-50 |
| Roller diameter*width | mm | 800*600 |
| Tangential speed | m/sec | 14/12 |
| Required power | Kw | 37+30 |
| Approximate weight | Kg | 5,900 |
| Total length | mm | 5,122 |
| Total width | mm | 1,400 |
| Total Height | mm | 1,430 |

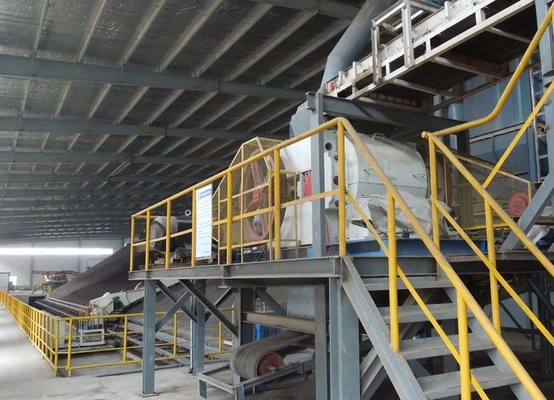

Application of GS8060 Roller Mill Fine Roller Crusher for Clay Brick Making Factory in Bangladesh Project.
The Fine Roller Crusher is one of the main equipment in the raw material processing section of brick production process.
