GS1080 Refine Roll Grinding Machine Mill Crusher For Minerals Processing
Refine Roll Grinding Machine
,Minerals Processing Roll Grinding Machine
,Minerals Processing Roller Mill Crusher
GS1080 Refine Grinder Roller Mill Fine Roller Crusher for Clay Brick Making and Minerals Processing
Materials applicable: wet and soft raw materials;
Materials input size: less than 20mm;
Materials outlet size: less than 3mm.

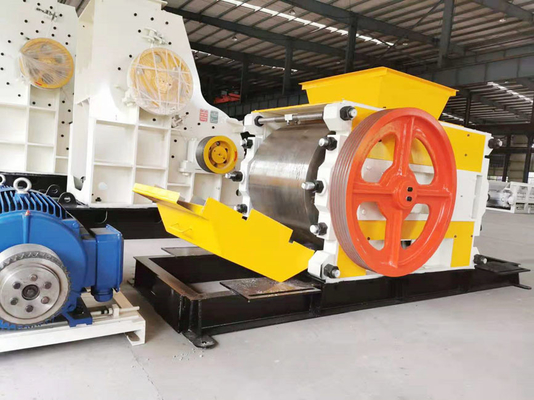

Struactures of GS1080 Refine Grinder Roller Mill Fine Roller Crusher for Clay Brick Making and Minerals Processing
Roller: supported by adjustable rolling bearing to ensure a better neutral and support strength.
The moving roller adopts pressure spring to increase force, and the crushing pressure are adjustable with working of different raw materials.
Screw Device: There are screw adjustment devices on both sides of the fixed roller, which can adjust the position after the roller is reduced.
The inside of the moving roller is equipped with a limit screw to ensure the adjustable roller clearance.
Scraper: all loaded by cylinder, close to the idler, the hexagonal mud effect is good, and the maintenance and replacement is convenient.
Each roller is equipped with an independent stepless reduction motor, which is used to drive the reel during roller maintenance without starting the main motor drive. It is both energy efficient and safe.
The roller ring and the hub adopt a separate structure, which is connected together by high-strength bolts, which is convenient for maintenance and replacement of the roller ring. It is made of high wear-resistant, high-strength, and easy-maintain manganese steel.
Technical Parameters of GS1080 Refine Grinder Roller Mill Fine Roller Crusher for Clay Brick Making and Minerals Processing
| Item | Unit | GS1080 |
| Production capacity | t/h | 55-75 |
| Roller diameter*width | mm | 800*600 |
| Tangential speed | m/sec | 14/12 |
| Required power | Kw | 55+75 |
| Approximate weight | Kg | 14,800 |
| Total length | mm | 6,200 |
| Total width | mm | 4,000 |
| Total Height | mm | 1,700 |

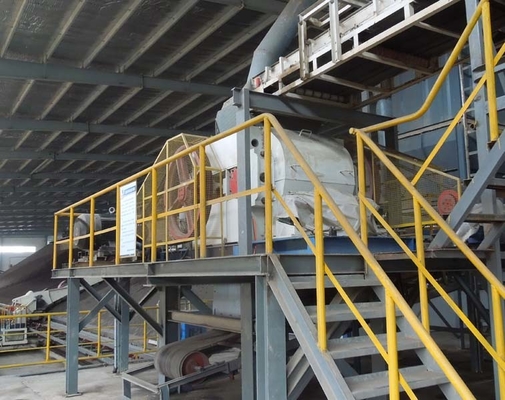

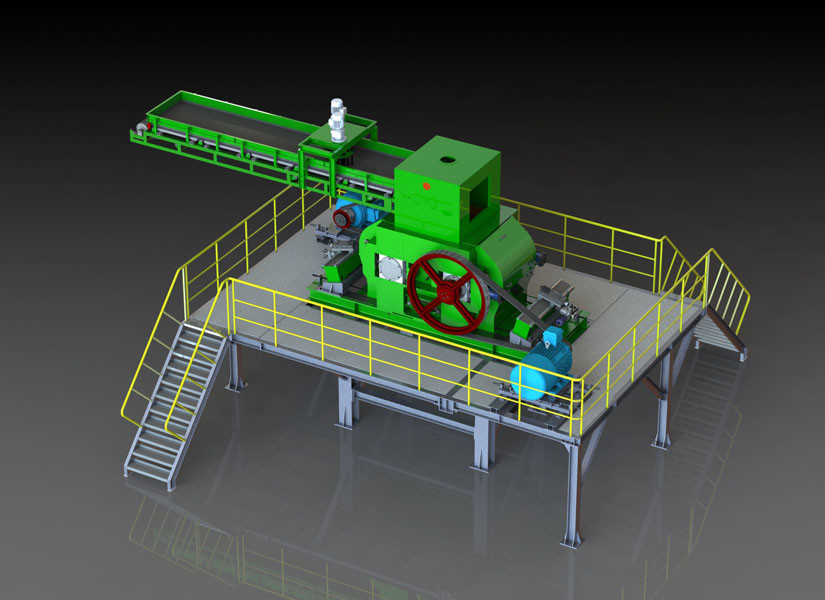

Application of GS1080 Refine Grinder Roller Mill Fine Roller Crusher for Clay Brick Making Project
The Fine Roller Crusher is one of the main equipment in the materials processing section of brick making process.
