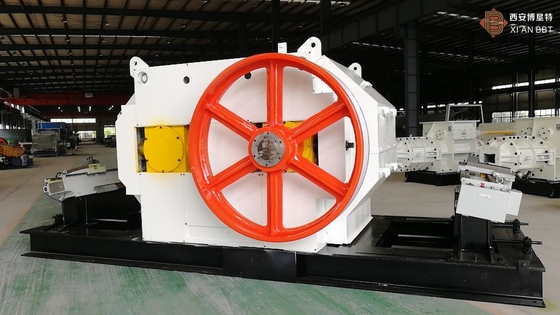

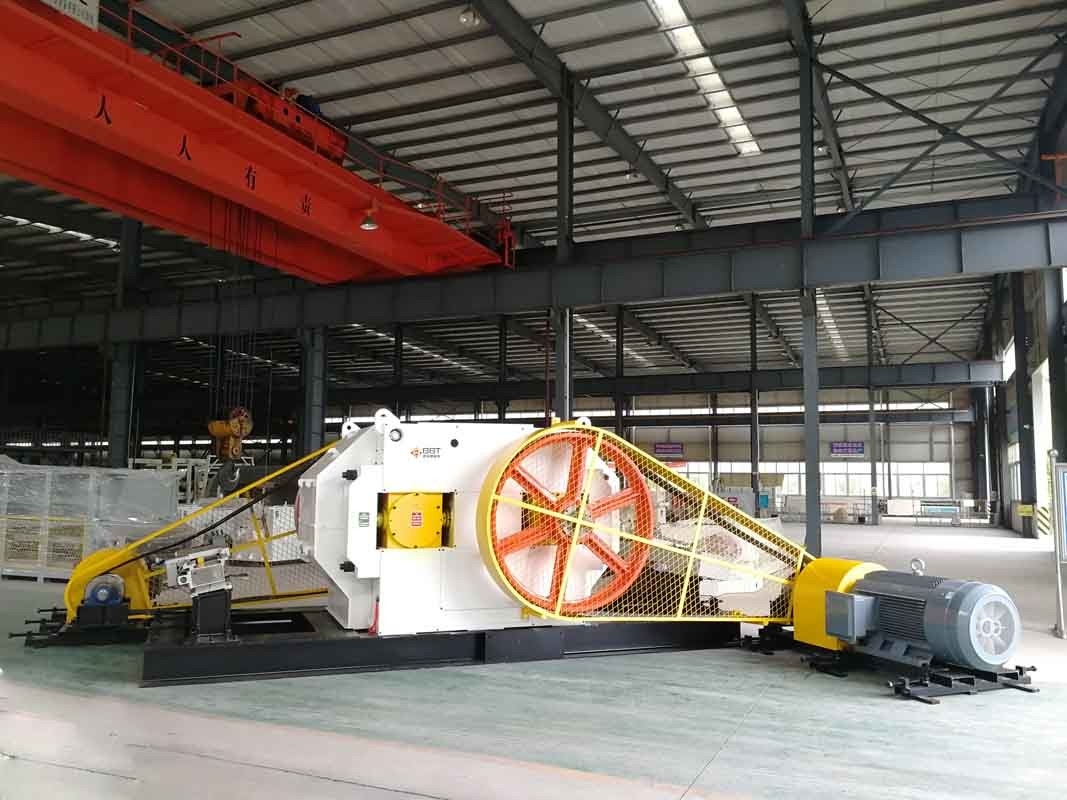

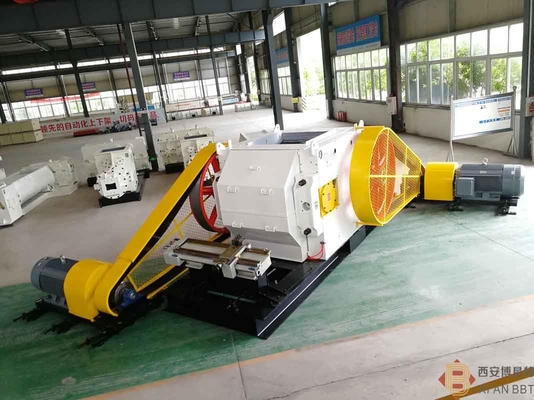

GS1412 Fine Roller Crusher Machine High Speed Refine Grain Roller Mill

GS1412 Refine Grinder Roller Mill High Speed Fine Roller Crusher for Materials Processing Grinding

Materials applicable: wet and soft raw materials;
Materials input size: less than 20mm;

Materials outlet size: less than 3mm.

Struactures of GS1412 Refine Grinder Roller Mill High Speed Fine Roller Crusher for Materials Processing Grinding

Roller: supported by adjustable rolling bearing to ensure a better neutral and support strength.

         The moving roller adopts pressure spring to increase force, and the crushing pressure are adjustable with working of different raw materials.

Screw Device: Both sides of the fixed roller are equipped with screw adjusting devices to adjust the position after the size of the roller is reduced.

                     The inside of the moving roller is equipped with a limit screw to ensure the adjustable roller clearance.


Scraper:All adopt cylinder loading, close to the roller, hexagram mud effect is good, and easy to repair and replace.

Each roller is equipped with an independent stepless reduction motor, which is used to drive the reel during roller maintenance without starting the main motor drive. It is both energy efficient and safe.

The roller ring and the hub adopt a separate structure, which is connected together by high-strength bolts, which is convenient for maintenance and replacement of the roller ring. It is made of high wear-resistant, high-strength, and easy-maintain manganese steel.


Specifications of ​GS1412 Refine Grinder Roller Mill High Speed Fine Roller Crusher for Materials Processing Grinding
