Brick Production Line Plate Box Feeder For Transport Hard Raw Materials
Brick Plate Box Feeder
,Raw Materials Plate Box Feeder
Plate Feeder

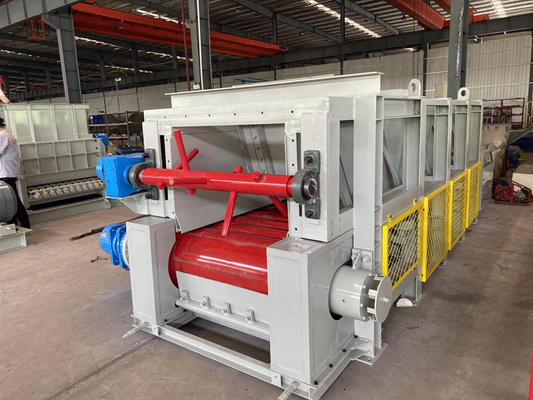

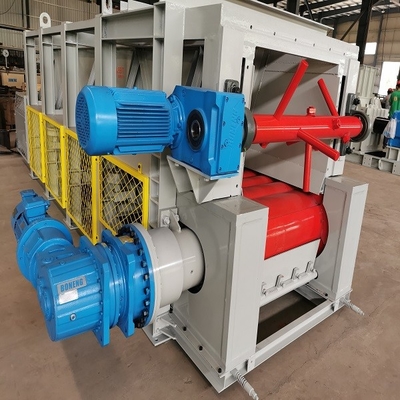

This machine is a uniform and quantitative supply equipment for raw materials of brick-making production line equipment, The material unloaded from the tail silo is transported to the front of the machine body along the conveying line for discharge, so as to achieve the purpose of continuous and uniform feeding to the working machinery below.
The equipment controls the feeding amount of raw materials by adjusting the speed of the chain plate, and can mix the raw materials and internal fuel proportionally. It is especially suitable for transporting bulky and sharp materials, and can work reliably in open air and humid and harsh environments
Technical Parameters
| No. | Model | TCNL 1045 |
| 1 |
Production capacity |
10-50m3/h |
| 2 | Center distance between the driving and tensioning sprocket |
4,500 mm |
| 3 |
Chain travel track center distance |
1,175 mm |
| 4 |
Weight |
6200kg |
| 5 |
Dimensions |
6,015×2,500×1,750 mm |
| 6 |
Power |
4+4 KW |
Our service
Welcome to contact with BBT
BBT supply following machinery and project :
1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)
2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )
3. Brick kiln project ( hoffman kiln, tunnel kiln )
4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)
5. Kiln firing system ( coal / gas /oil combustion system ,control system )
6. Whole brick making project design and construction .
