Double Shaft Mixer Filter Screen Mixer TWJH550 Mix Equipment
This equipment is designed to achieve higher material uniformity and raw material quality. It can also filter the grass roots, bark and other sundries in the soil, reduce the blocking probability of the brick machine mold,and greatly reduce the production cost waste caused by blocking.It is especially suitable for thin-walled high-quality products.
TWJH550 front grid mixer extruder is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China.
The function of the front grid mixer: homogenize and mix raw materials through biaxial stirring; Through reamer extrusion, strengthen the mutual penetration of water between raw materials and improve the plasticity of materials.

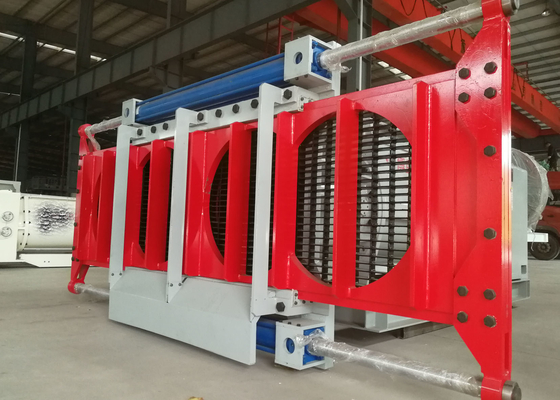

It is equipped with a mesh plate to increase the resistance, thereby improving the kneading efficiency of the raw materials, and can filter the grass roots and bark in the soil, reducing the blockage of the brick machine mold and the probability of breaking the steel wire of the blank cutting machine.
It is especially suitable for thin-walled high-quality product.

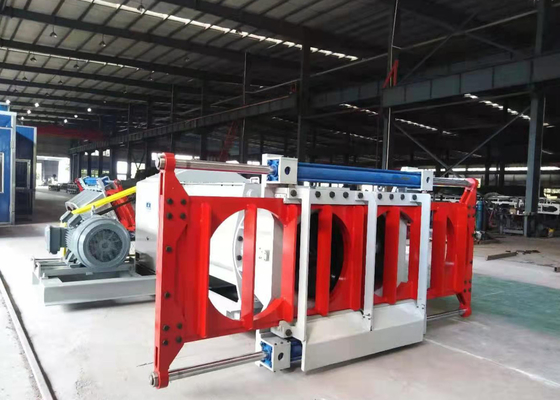

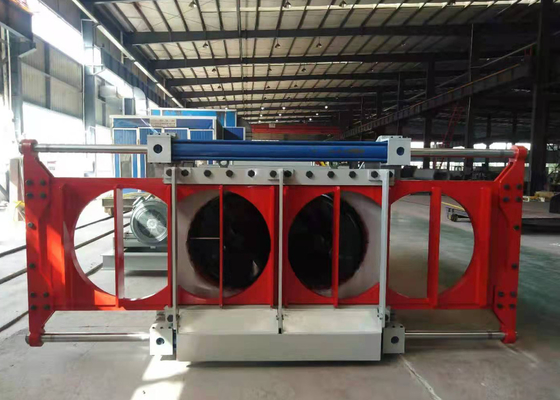

The stencil is controlled by a hydraulic system, which can quickly clean and replace the stencil and improve production efficiency.
Working principle and structural characteristics:

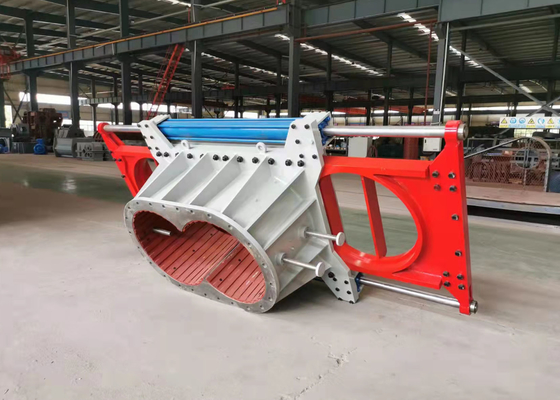

The power is driven by the motor through the reducer and the gear pair of the gearbox to drive the two shafts of the mixer to rotate in opposite directions. The two shafts are respectively equipped with stirring knives with opposite directions. The stirring knife makes the material toss, shear and convectively mix; at the same time, the water spray system sprays mist water to the material, and mixes it with it. With the rotation of the stirring shaft, the stirring blade continuously stirs, mixes and homogenizes the raw materials, and continuously pushes the raw materials to the feeding port of the sealing cylinder. After the raw material enters the sealed cylinder, its density increases continuously due to the influence of the volume compression of the compressor head. During this process, the kneading effect between the mud materials further improves the homogenization effect on raw materials of different properties. Under the action of the thrust of the screw reamer, the mud is forced and continuously extruded from the wear-resistant mesh plate of the discharge port of the compressor head and falls into the next production process.
Item Unit TWJH-550 TWJH-650 TWJH-750
Production t/h 50-80 80-100 90-130
capacity
Reamer mm 550 650 750
diameter
Installed power Kw 90/110 110/132 132/160
Total weight Kg 9,100 13,800 18,700
Total length mm 4,200 4,200 4,200
Total width mm 4,400 4,500 4,950
Total height mm 1,600 1,800 1,800
Grid front extruding mixer of technical paramerters:
| Item |
TWJH-550 |
TWJH-750 |
| Diameter of auger |
550mm |
750mm |
| Rotate speed for main shaft |
≥30 rpm |
≥30rpm |
| Motor Power |
90+5.5 kw |
132-160kw |
| Diameter for screen hole |
Customized building |
Customized building |
| Production capacity |
45-50 m³/h |
60-75 m³/h |
| Total weight of equipment |
8900 kg |
15800 kg |

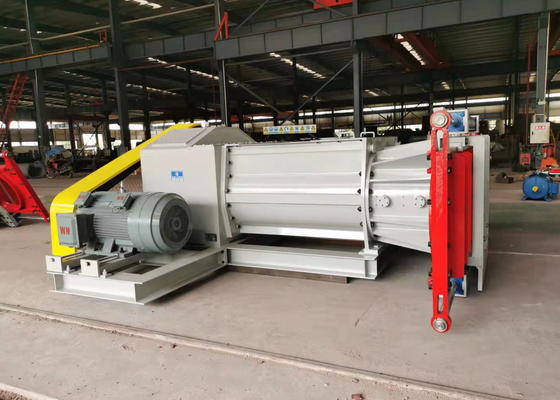

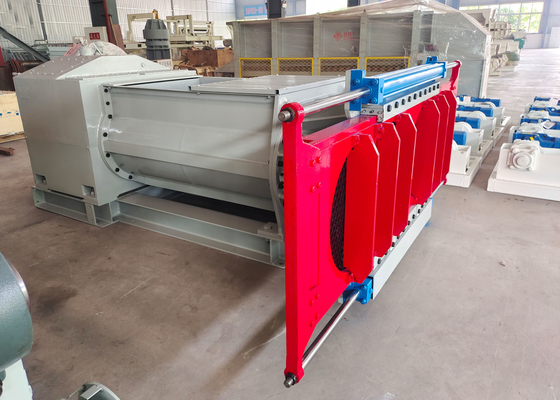

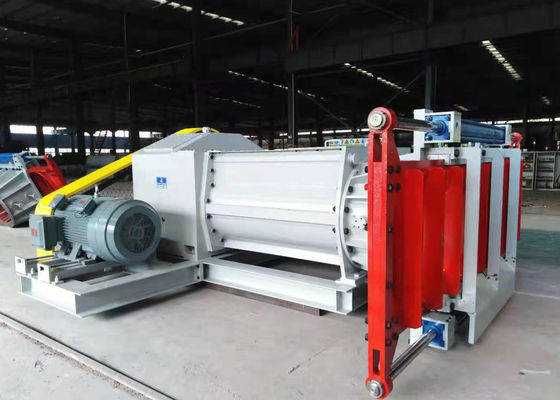

Grid front extruding mixer for clay brick making plant machinery
Front grid extruding mixer machine in auto brick production line
