1. Introduction for 30-120 t/h Chain plate box feeder for preparation of clay fired bricks or for construction and mining
30-120 t/h Chain plate box feeder for preparation of clay fired bricks is reasonable in structure, stable in operation, low in failure rate, and easy to use and maintain.
The 30-120 t/h Chain plate box feeder for preparation of clay fired bricks is widely used in mining, building materials, metallurgy and other industries to achieve uniform feeding and batching, and can also be used in other occasions where similar sharp block materials are uniformly fed.
2. Explaination for model of 30-120 t/h Chain plate box feeder for preparation of clay fired bricks
TCNL--referred to TCNL series chain plate box feeder;
1045-- referred to he center distance between the driving and tensioning sprocket is 4,500mm;
3. Specifications for 30-120 t/h Chain plate box feeder for preparation of clay fired bricks
a. Production capacity 10-50 m3/h
b. Center distance between the driving
and tensioning sprocket 4,500 mm
c. Chain travel track center distance 1,175 mm
d. Weight 6.2T
e. Dimensions 6,015×2,500×1,750 mm
f. Power 4+4 KW
Optional
a. Transmission direction selection: right drive/left drive;
4. Structural characteristics for 30-120 t/h Chain plate box feeder for preparation of clay fired bricks
The plate feeder is mainly composed of the following components:
Transmission system: electric motor, reducer, driving shaft, driven shaft, sprocket, chain plate.
Other devices: silo gate, scraper, feeding system, rack, silo, guard.
5. Working principle for 30-120 t/h Chain plate box feeder for preparation of clay fired bricks
The power of the plate feeder is driven by the motor of the transmission device, and after being decelerated by the reducer, the power is transmitted to the driving shaft.
At that time, the two sprockets mounted on the drive shaft rotate with the drive shaft.
In addition, the two chains meshing with the head and tail sprockets also move forward with the rotation of the driving sprocket and the tail wheel, and the chain plate is installed on the chain to move synchronously with the chain.

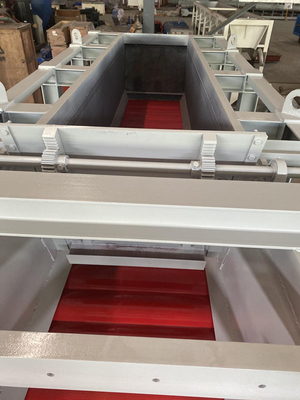

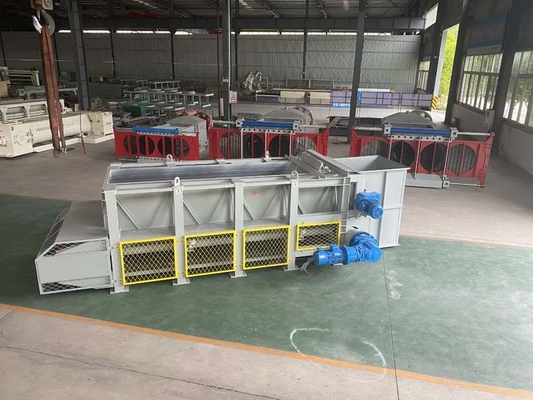

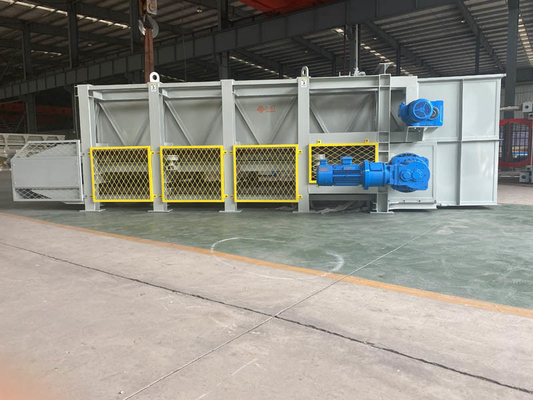

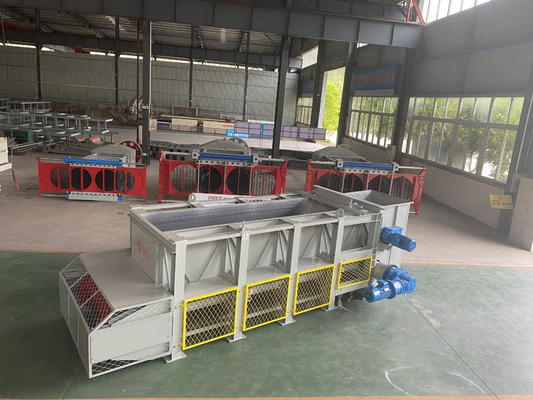

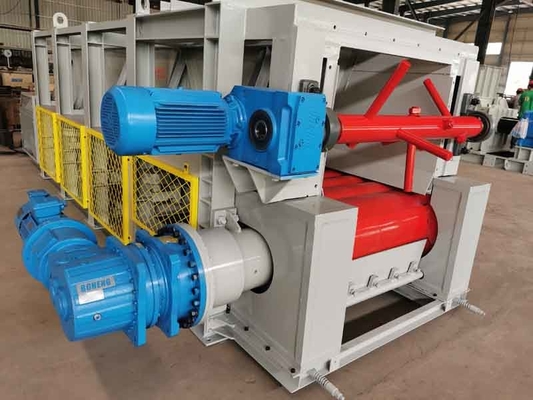

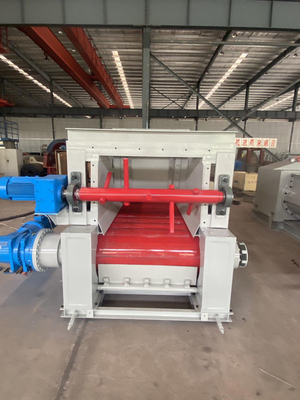

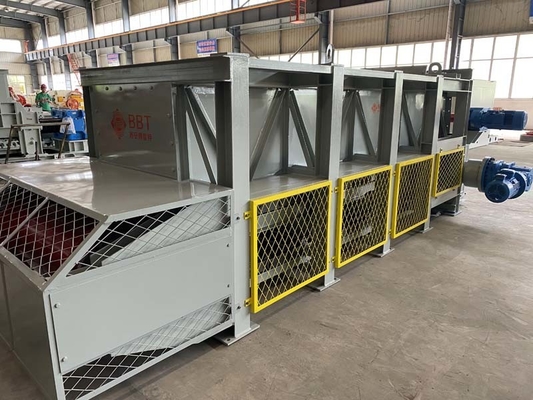

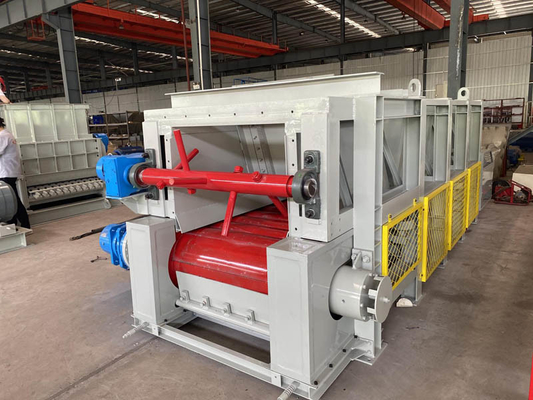

6. Other pictures and spares for 30-120 t/h Chain plate box feeder for preparation of clay fired bricks
