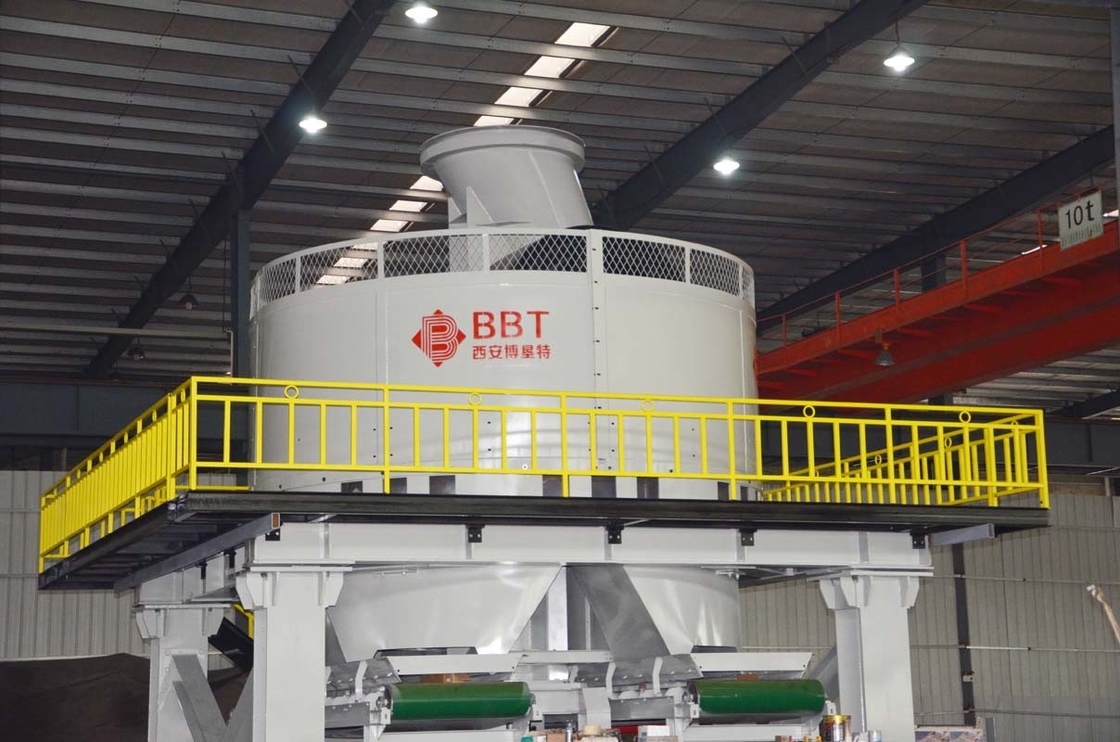

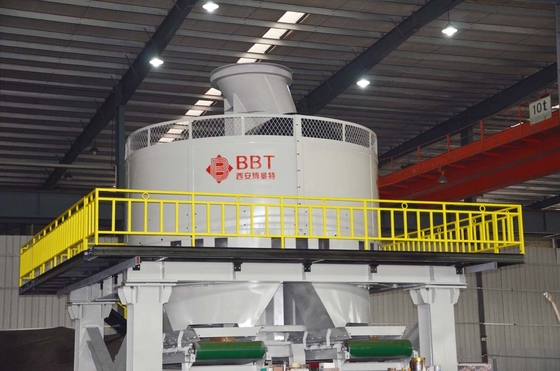

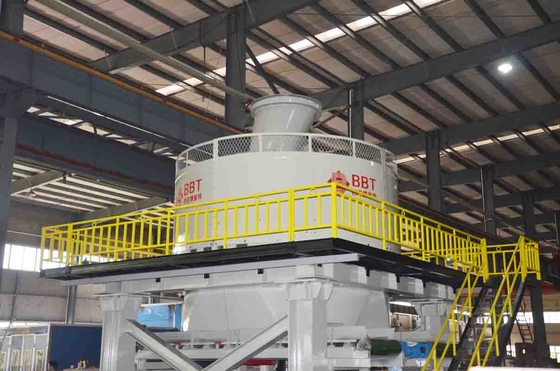

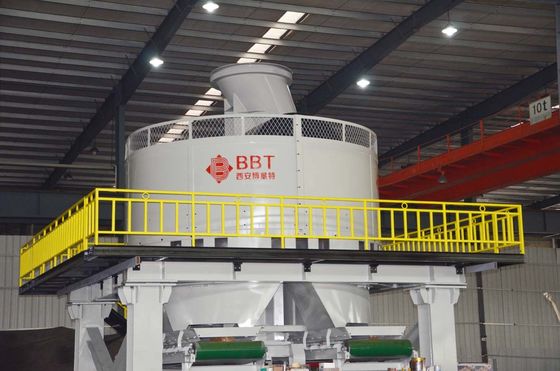

Wet Pan Pan Mills for Minerals Processing Equipment for Materials Grinding and Crushing
1. Q: What is the Usage of Wet Pan Pan Mills ?
A: Pan Mills is the most versatile and best performing machine for the grinding and crushing of wet clay and other minerals. Commonly used as clay brick making machine and processing to grind other minerals and waste materials.
2. Q: What is the Key Part of Wet pan mill?

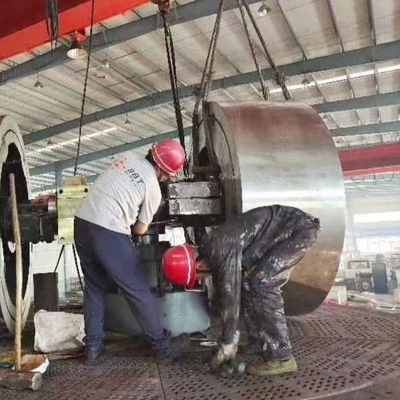

A: the key part of pan mills is roller, sleeve, drive shaft and reducer.
3. Q: What is the Features of Pan Mills from BBT Clay, China?
A: Both the motor and the reducer realize the overload protection function.
The opening and closing detection switch of the inspection door and the main motor start and stop switch realize interlock control.
There is a real-time feed detection switch at the feed inlet.
The floating scraper fits the sieve plate to ensure the output.
All link points have shock-absorbing pads to protect the equipment while reducing noise during machine operation.
The vertical shaft support shaft is lubricated centrally, which can be refueled without stopping and prolong the service life.
Hardened gear reducer.
Equipped with water filling device.
4. Q: Why Choose Wet Pan Mills from BBT Clay, China?
A: more than 15 years experience for brick making factory and Minerals processing Factory
own Technical R&D team to specific requirements for different machines
own manufacturing workshops.
more than 15 years experiences in overseas marketing.
5. Q: What is BBT Clay,China supply?
A: Key equipment in materials processing: Hammer Crusher, Double Shaft Mixer, Double-toothed Roller Crusher, Wet Pan Mill, Roller Mill, Extruder-mixer
Fully automatic cutting, marshalling, stacking, loading and unloading Equipment(especially for brick making factory)
Process design of directing setting, twice setting technology for clay brick making factory
7. Q: How to vist BBT Clay, China?
Taking the plane to Xian Xianyang International Airport
Taking the high-speed rail to XiAn Bei Station.
Specifications of Wet Pan Pan Mills for Minerals Processing Equipment for Materials Grinding and Crushing. Customized equipment are available.
|
Item
|
Unit
|
TWPM160
|
TWPM185
|
|
Production capacity
|
t/h
|
40-60
|
60-85
|
|
Diameter and width of runners
|
mm
|
1,600*700
|
1850*700
|
|
Weight of inner/outer runners
|
Kg
|
5,700/6,500
|
8,500/12,500
|
|
Required power
|
Kw
|
55
|
98
|
|
Approximate total weight
|
Kg
|
46,000
|
54,000
|
|
Total length
|
mm
|
4,000
|
6,700
|
|
Total width
|
mm
|
4,000
|
6,400
|
|
Total Height
|
mm
|
6,200
|
6,460
|
