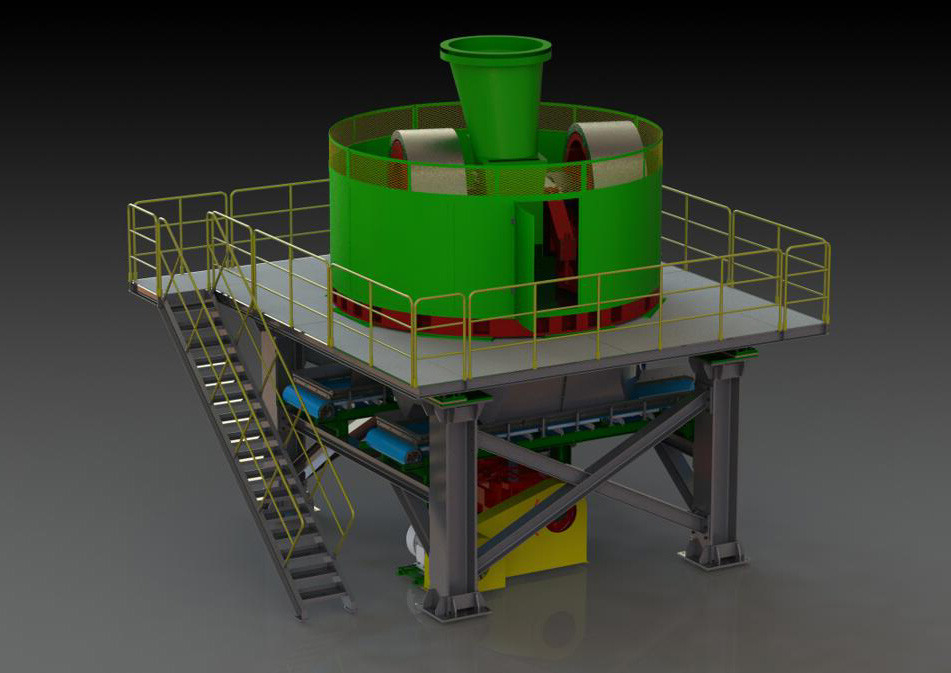

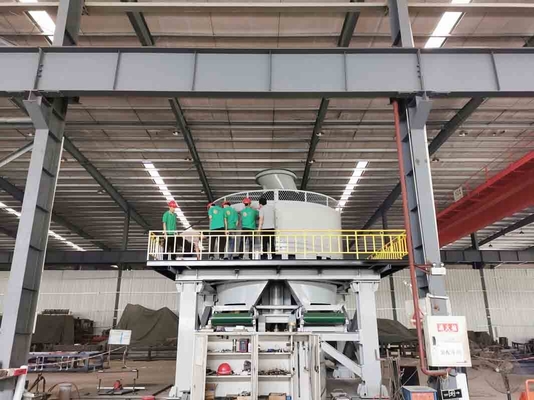

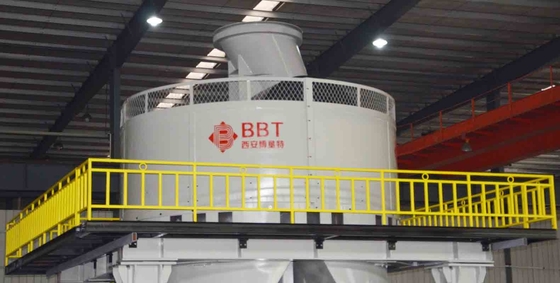

Minerals Processing Equipment Wet Clay Grinding And Crushing Wet Pan Mills
1. Q: What is the Usage of Wet Pan Mills ?
A: Pan Mills is the most versatile and best performing machine for the grinding and crushing of wet clay and other minerals. Commonly used as clay brick making machine and processing to grind other minerals and waste materials.
2. Q: What is the main Part of Wet Pan Mills?
A: the main part of pan mills is roller, sleeve, drive shaft and reducer.
3. Q: What is the advantages of Pan Mills from BBT , China?
A: The motor and reducer both realize overload protection function.
The open and closed detection switch of the inspection door and the main motor start and stop switch realize interlock control.
There is a real-time feeding detection switch at the feeding port.
Floating scraper, fit the sieve plate to ensure output.
All link points have shock-absorbing pads to protect the equipment and reduce the noise of the machine during operation.
The vertical shaft support shaft is lubricated in a centralized manner, which can be refueled without stopping and prolong the service life.
Hard tooth surface reducer.
Equipped with water filling device.
4. Q: Why Wet Pan Mills from BBT , China?
A: more than 15 years experience for brick making factory and Minerals processing Factory
own Technical R&D team to specific requirements for different machines
own manufacturing workshops.
more than 15 years experiences in overseas marketing.
5. Q: What is BBT ,China supply?
A: Key equipment in materials processing: Hammer Crusher, Double Shaft Mixer, Double-toothed Roller Crusher, Wet Pan Mill, Roller Mill, Extruder-mixer
Fully automatic cutting, marshalling, stacking, loading and unloading Equipment(especially for brick making factory)
Process design of directing setting, twice setting technology for clay brick making factory
7. Q: How to vist BBT, China?
Taking the plane to Xian Xianyang International Airport
Taking the high-speed rail to XiAn Bei Station.
Specifications of Minerals Processing Equipment Wet Clay Grinding and Crushing Wet Pan Mills. Customized equipment are available from BBT,China.
|
Item
|
Unit
|
TWPM160
|
TWPM185
|
|
Production capacity
|
t/h
|
40-60
|
60-85
|
|
Diameter and width of runners
|
mm
|
1,600*700
|
1850*700
|
|
Weight of inner/outer runners
|
Kg
|
5,700/6,500
|
8,500/12,500
|
|
Required power
|
Kw
|
55
|
98
|
|
Approximate weight
|
Kg
|
46,000
|
54,000
|
|
Total length
|
mm
|
4,000
|
6,700
|
|
Total width
|
mm
|
4,000
|
6,400
|
|
Total Height
|
mm
|
6,200
|
6,460
|
