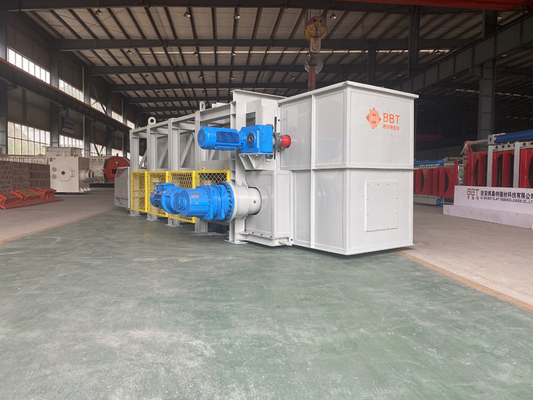

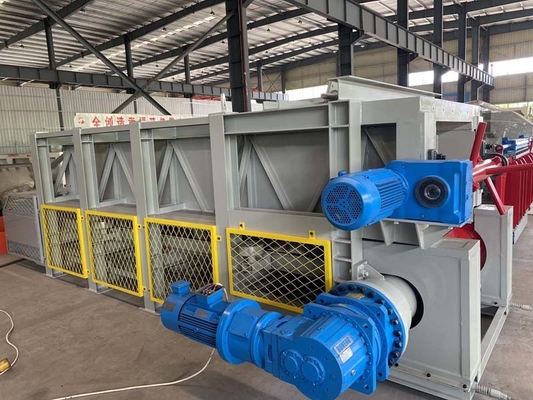

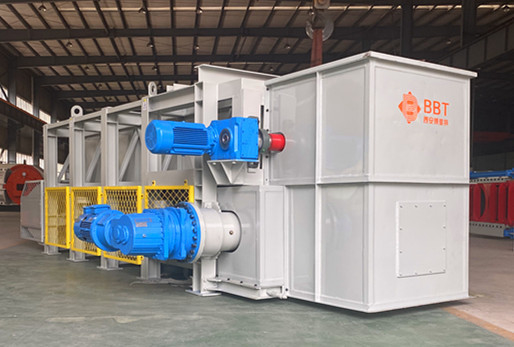

Clay Brick Box Feeder Machine Belt Type TCNL1045 Customized Color

Clay brick box Feeder TCNL1045 for automatic clay brick production line

Clay brick making machine belt type box feeder machine

Automatic plate box feeder for materials storage and feeding for clay brick production line

1. The driving motor of the transmission system is the frequency conversion of speed regulation;

2. The feeding system is driven separately from the mud stick;

3. The completed machine has a reasonable structure, reliable performance, convenient maintenance, low running resistance and low energy consumption;

4. Equipped with manual adjustment gate. The feeding amount of the raw material can be controlled by adjusting the height of the gate and the speed of the motor;
5. For the mud stick can choose different structures and types, in addition to the material shifting functions, it can also break up larger block of soft mud;

6. The conveying arc-shaped scraper is made of manganese steel, and the center in the bottom is supported by rollers, which has good rigidity, large bearing capacity and long service life;

7. The transmission structure adopts a shaft-mounted hard-tooth surface reduction motor, which has a large carrying capacity and a long service life;

8. The driving chain plates and rollers are made of alloy steel, with the surface heat treated;

9. Equipped with head guard and side safety protection net;

10. The box feeder can be optionally equipped with a material-receiving belt conveyor, and installed at the bottom so that the powdery materials that leak from the gap of the conveying scraper can be transported to the lower hopper of the head.

Clay brick box feeder of technical parameters:

Clay brick box feeder machinery manufacturing
