large capacity different raw materials box feeder machine for clay brick production line

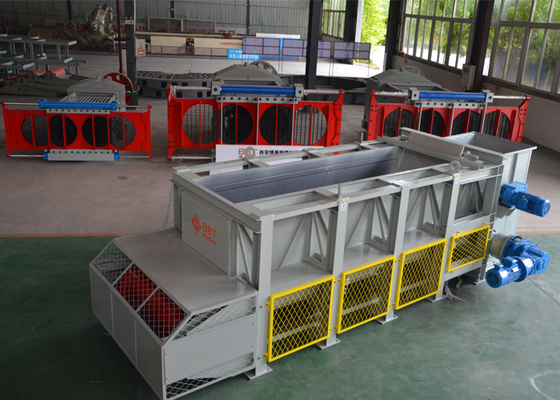

Clay Brick Box Feeder Machine
,Large Capacity Box Feeder Machine
large capacity different raw materials box feeder machine for clay brick production line
Clay brick box Feeder TCNL1045 for automatic clay brick production line
Big output box feeder machine for clay brick production line
Clay brick making line box feeder machinery
Box feeder is quantitative feeding equipment of brick producing line. It’s suitable for all kinds of powder and block material. It is the ideal equipment to control the feeding speed and adjust the feeding capacity.
Automatic plate box feeder for materials storage and feeding for clay brick production line

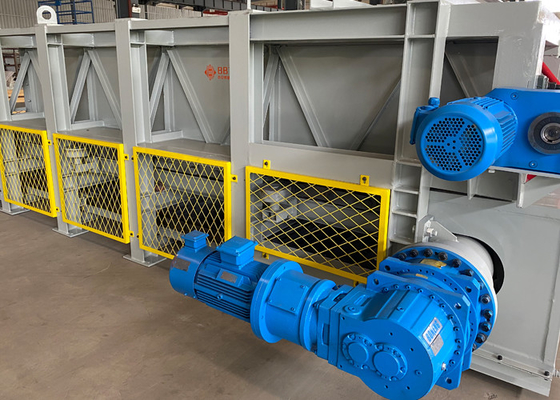

1. The driving motor of the transmission system is the frequency conversion of speed regulation;
2. The feeding system is driven separately from the mud stick;
3. The completed machine has a reasonable structure, reliable performance, convenient maintenance, low running resistance and low energy consumption;
4. Equipped with manual adjustment gate. The feeding amount of the raw material can be controlled by adjusting the height of the gate and the speed of the motor;
5. For the mud stick can choose different structures and types, in addition to the material shifting functions, it can also break up larger block of soft mud;
Clay brick box feeder of technical parameters:
| Item | Unit | TCNL1045 |
| Production capacity | m3/h | 15-50 |
|
Center distance (Driving and tighten sprocket) |
mm | 4500 |
| Center distance of chain track | mm | 1175 |
| Required power | Kw | 4 |
| Approximate weight | Kg | 6200 |

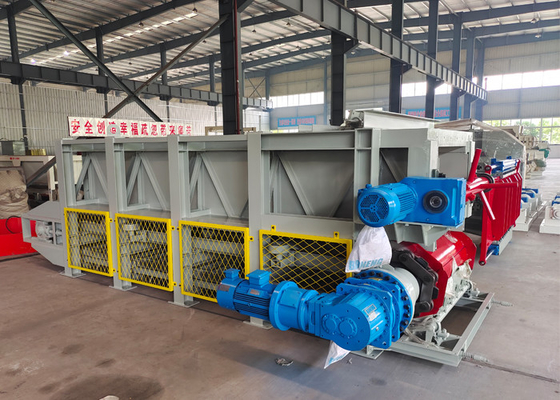

Clay brick box feeder machinery manufacturing
Clay brick box feeder for clay brick production line raw material feeding equipment
