Solid Clay Brick Cutting Machine Auto Wire Cut Brick Making Machine
Solid Clay Brick Cutting Machine
,Auto Clay Brick Cutting Machine
,Auto Wire Cut Brick Making Machine
Solid Clay Brick Cutting Machine Auto brick making plant wire cut brick making machine
Auto brick cutting machine clay brick cutter red brick making machine brick wall cutting machine
This model is the mostly common used. A combination of pneumatic column cutting machine and green brick cutter, it is realizes the operation without labors so that it can save labour cost and avoid automatic system failur.
This brick cutter is suitable to a wide range of raw materials ,such as clay, coal gangue, fly ash, shale mud soft extrusion,semi-stiff extrusion and stiff extrusion.
Clay brick cutter/ brick cutting system manufacturing in factory of BBT, China.
Technical parameters of clay brick cutting machine/ brick cutting system
| No. | Item | Power (kw) | Speed and specifications | Dimension (mm) |
| 1 | Automatic column cutter | 1.1+0.75 | cutting length:1800mm-2000mm | Custom building |
| 2 | Acceleration belt bench | 1.5 | 0-1m/s | Custom building |
| 3 | 90°lifting reversing bench | 2.2+1.5+1.1 | 1m/s | Custom building |
| 4 | Automatic green brick cutter | 5.5+1.1 |
cutting length 190mm, 8 bricks/time Cutting cycle 6-8 times/min Maximum cutting height 240 mm Maximum cutting width 520 mm |
|
| 5 | Electrical control boards for above machines | / | / | Custom building |

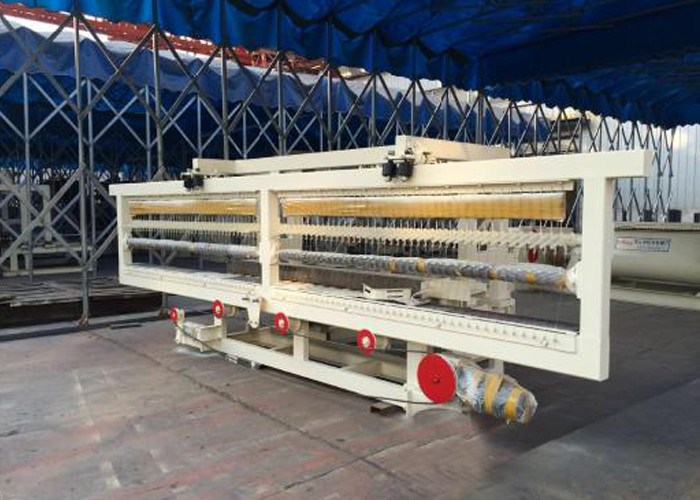

Clay brick cutting machine shipment

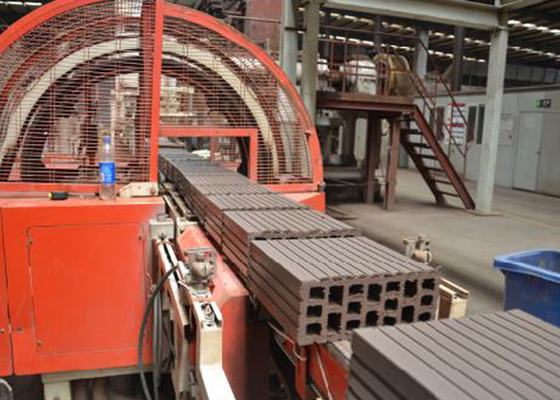

Clay brick cutting machinery in auto brick making line
