Automatic Mineral Processing Machine Brick Production Wet Pan Mill Machine
Automatic Mineral Processing Machine Brick Production Wet Pan Mill Machine
Basic Properties
Place of Origin:
Chongqing, China
Brand Name:
BBT
Model Number:
TWPM185,TWPM200
Trading Properties
Minimum Order Quantity:
1 set
Payment Terms:
L/C, T/T
Supply Ability:
1 set per month
Product Summary
TWPM200 Wet pan mill Mineral processing equipment in brick production line Wet Pan Mill It is used in the raw material preparation section of the brick production line to fully mix, crush and grind various materials. The roller adopts the structure that the roller is separated from the hub, and is ...
Product Custom Attributes
Highlight
Automatic Mineral Processing Machine
,Brick Production Mineral Processing Machine
,Brick Production Wet Pan Mill Machine
Power(w):
90+2.2+2.2+1.5kw
Condition:
New
Warranty:
1 Year
Dimension:
5300*4600*6500mm
Production Capacity:
40-50 M³/h
Weight:
65200kg
Roller Size:
1850*700mm Diameter*width
Effective Diameter Of Rollers:
1850mm
Product Description
Detailed Specifications & Features

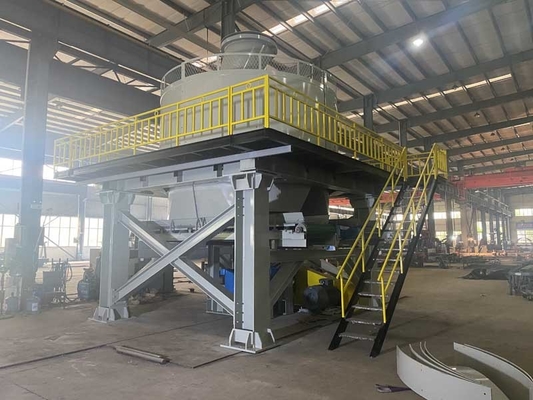

TWPM200 Wet pan mill Mineral processing equipment in brick production line
Wet Pan Mill
It is used in the raw material preparation section of the brick production line to fully mix, crush and grind various materials.
The roller adopts the structure that the roller is separated from the hub, and is connected as a whole by the wedge key, which is convenient for the replacement of the roller;
The rolling skin is made of high manganese chromium alloy steel, with high strength and wear resistance, its thickness is up to 150 mm, and the service life is long;
The main shaft is made of alloy steel forgings and is heat treated, with high strength, fatigue resistance, and can withstand a large radial eccentric force;
The torque-limiting hydraulic coupling is used for power transmission between the main engine motor and the input shaft of the reducer, which can effectively protect the reducer and the motor and prevent the impact on the mechanical parts when starting with full load; the main reducer is equipped with a forced lubrication system and cooling fan.
The rolling skin is made of high manganese chromium alloy steel, with high strength and wear resistance, its thickness is up to 150 mm, and the service life is long;
The main shaft is made of alloy steel forgings and is heat treated, with high strength, fatigue resistance, and can withstand a large radial eccentric force;
The torque-limiting hydraulic coupling is used for power transmission between the main engine motor and the input shaft of the reducer, which can effectively protect the reducer and the motor and prevent the impact on the mechanical parts when starting with full load; the main reducer is equipped with a forced lubrication system and cooling fan.
Key Parts
Sieve plate
Raw material for the sieve plate is high manganese steel, module designing, anti-wearing and also can be removed with new spare easily.

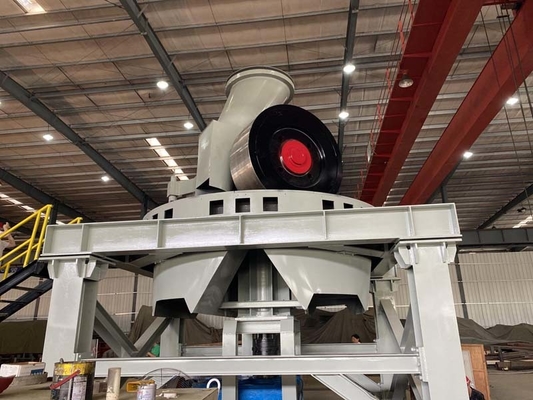

Mill
The roller adopts a structure that the roller skin is separated from the hub, which is connected as a whole by a wedge-shape key; it is convenient to replace the skin when needs.
Roller skin
Thickness of the roller skin is 150 mm, made of high-manganese-chromium alloy steel, which is high-strength and wear-resistance
Pan
It is the lattice structure which welded by steel wool, which is stronger and could bear huge impact compaction.

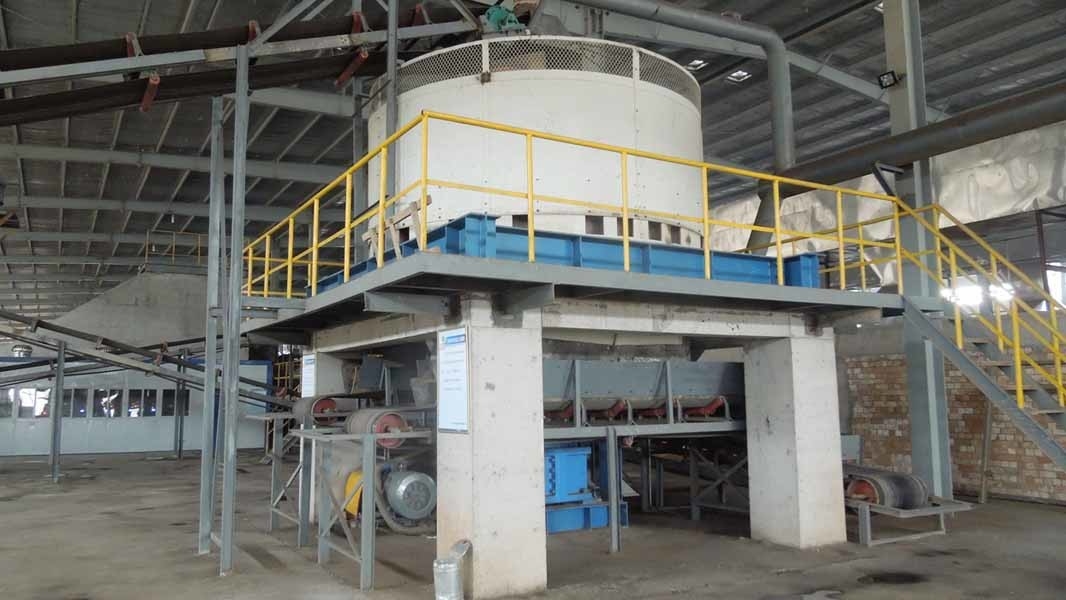

Structure support
There is polyurethane shock-absorbing pad between the platform and reducer, which is used to absorb the impact force and vibration of the equipment during operation.
Note: Structure supporting and maintenance platform are optional and
customers can weld in the local.
Main shaft
The main shaft is made of alloy steel forgings, and has been heat treated, which has high strength;
Fatigue resistance and can bear large radial eccentric forces.
Motor&reducer
A torque-limited and hydraulic coupling is used for power transmission between the main engine motor and the input shaft of the reducer, which effectively protect the reducer and the motor from the impact on the mechanical parts when working at full load; the main reducer is equipped with a forced lubrication system and cooling fan.
Technical Parameters
| No. | Item | TWPM185 | TWPM200 |
| 1 | Roller size | 1850*700mm diameter*width | 2000*900mm diameter*width |
| 2 | Rotate speed for main shaft | ≥13 rpm | ≥13 rpm |
| 3 | Power | 90+2.2+2.2+1.5kw | 142kw |
| 4 | Effective diameter of rollers | 1850mm | 2000mm |
| 5 | Rotating speed | ≥29rpm | ≥29rpm |
| 6 | Diameter for screen hole | Customized building | Customized building |
| 7 | Production capacity | 40-50 m³/h | 60-90 m³/h |
| 8 | Total weight of equipment | 65200 kg | 70000 kg |
| 9 | Dimensions | 5300*4600*6500mm | 6700*6500*6700mm |
Our service
Welcome to contact with BBT
BBT supply following machinery and project :
1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)
2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )
3. Brick kiln project ( hoffman kiln, tunnel kiln )
4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)
5. Kiln firing system ( coal / gas /oil combustion system ,control system )
6. Whole brick making project design and construction .
