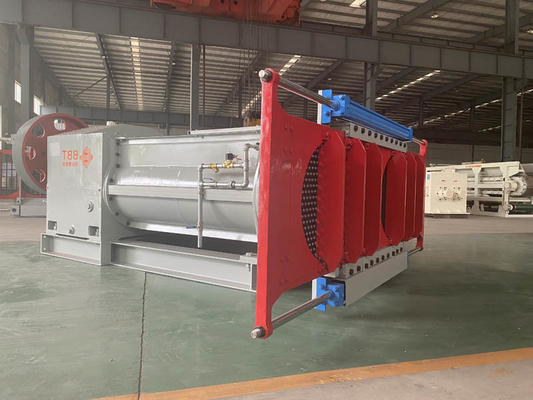

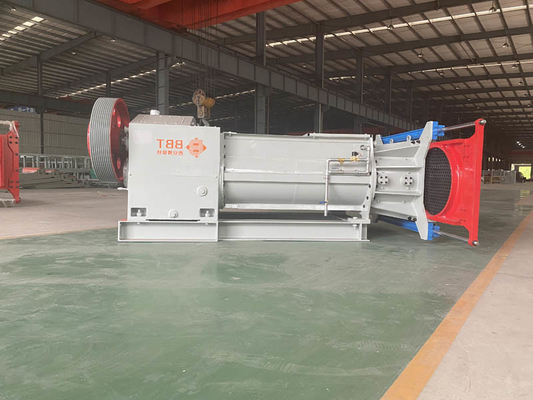

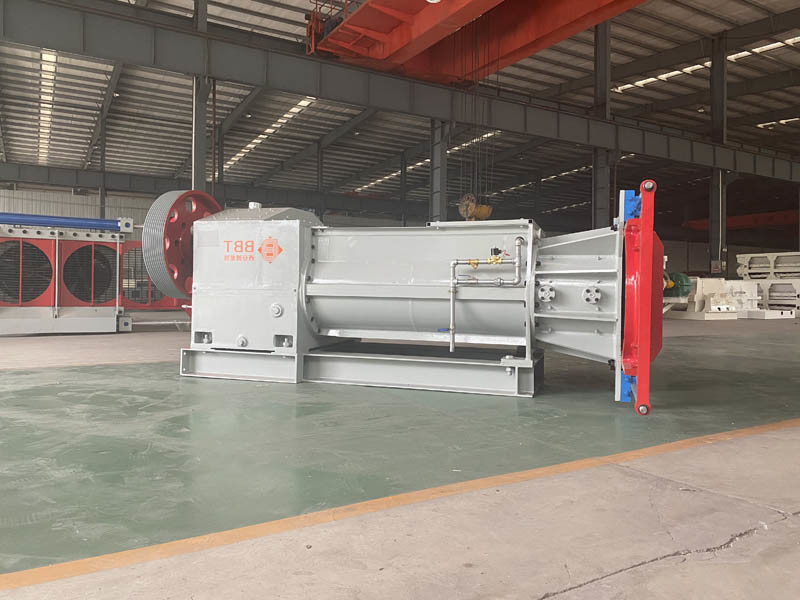

Brick Minerals Processing Equipment 220V / 380V Double Shaft Paddle

The equipment to make raw materials mixing, highly efficient homogenization, improve the quality of raw materials mixing homogenization, make raw material intensive mixing between particles and particles, by cutting the evenness of particle size and shape.

Evenly stirring and mixing raw materials, improve the extrusion by screw extrusion pressure, increase the density of raw material, filter the grassroots, bark in clay and other sundry, brick machine mould, reduce the blocking probability and greatly reduce the production cost of waste caused by obstruction

Working principle and structural features:

The power is driven by the motor through the gear pair of the reducer and the gearbox, which drives the mixer to rotate in the opposite direction in two axes. The two axes are respectively equipped with agitating knives in opposite directions. The stirring knife makes the material roll, shear and convection mixing; At the same time, the water spray system sprays water mist onto the material and mixes with it. With the rotation of the mixing shaft, the mixing blade continuously stirs, mixes and homogenizes the raw material, and constantly pushes the raw material to the feed port of the sealing cylinder. After entering the sealed cylinder, the density of the raw material increases due to the compression of the shrinkage volume. In this process, the kneading effect between the mud further improves the homogenization effect of the raw materials with different properties. Under the influence of screw thrust of reamer, mud from the compressor head discharging mouth wear-resisting screen forced continuous extrusion, into the next line of production process.

Our service

Welcome to contact with BBT

BBT supply following machinery and project :

1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)

2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )

3. Brick kiln project ( hoffman kiln, tunnel kiln )

4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)

5. Kiln firing system ( coal / gas /oil combustion system ,control system )

6. Whole brick making project design and construction .
