Brick Cutter Of Clay Brick Cutting Machine In Brick Production Line
automatic brick cutting machine clay brick cutting machine red brick making machine brick wall cutting machine
Small automatic clay brick cutting machine automatic clay brick cutting machine for tunnel kiln brick factory

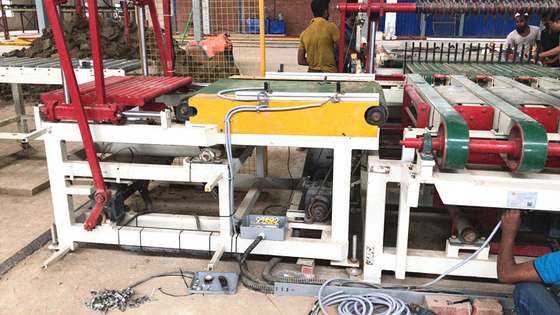

This model is the mostly used. A combination of pneumatic column cutting machine and super green brick cutter,that realizes the operation without workers so that it can save labours and when meets one automatic system failur.
This brick cutter is suitable to a wide range,such as clay, coal gangue, fly ash, shale mud soft extrusion,semi-stiff extrusion and stiff extrusion.
Fully automatic clay brick making line clay brick cutter machinery
Block Brick Fully Automatic Cutting Machine
Automatic cutting system
Choose different types of cutting units according to different products.
Features:
Cutting speed, stroke adjustable, accurate positioning;
A variety of different cutting methods;
Energy saving, environmental protection, economical and efficient;

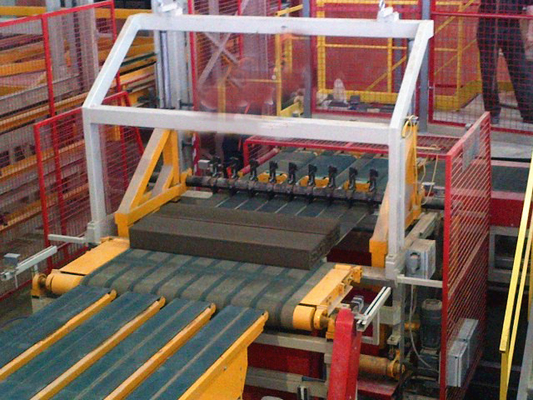

Down pressure cutting machine
Suitable for medium and large scale, semi-hard plastic, soft plastic extrusion products cutting (standard brick, KP1, block).
Specification
1. Maximum cutting frequency: 16 times/min;
2. Maximum mud strip length: 2.1 meters;
3. Maximum cutting height: 300mm;
4. Maximum cutting width: 600mm;
main feature:
1. Static cutting of mud strips, accurate cutting and high precision;
2. Servo motor as cutting power, high speed and stable, strong without impact, no damage to bricks;
3. Especially suitable for high porosity block cutting;
Technical parameters of clay brick cutting machine
| No. |
Item |
Power (kw) |
Speed and specifications |
Dimension (mm) |
| 1 |
Automatic column cutter |
1.1+0.75 |
cutting length:1800mm-2000mm |
Custom building |
| 2 |
Acceleration belt bench |
1.5 |
0-1m/s |
Custom building |
| 3 |
90°lifting reversing bench |
2.2+1.5+1.1 |
1m/s |
Custom building |
| 4 |

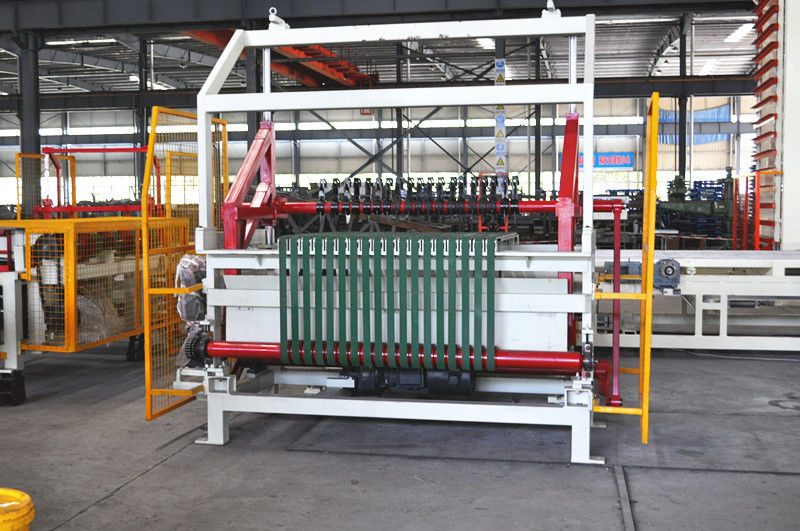

Automatic green brick cutter |
5.5+1.1 |
cutting length 190mm, 8 bricks/time
Cutting cycle 6-8 times/min
Maximum cutting height 240 mm
Maximum cutting width 520 mm
|
| 5 |
Electrical control boards for above machines |
/ |
/ |
Custom building |
Our service
Welcome to contact with BBT
BBT supply following machinery and project :
1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)
2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )
3. Brick kiln project ( hoffman kiln, tunnel kiln )
4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)
5. Kiln firing system ( coal / gas /oil combustion system ,control system )
6. Whole brick making project design and construction .
