High Speed Automatic Clay Brick Cutting Machine Cutter Heavy Duty

High Speed Automatic Clay Brick Cutting Machine Cutter Heavy Duty
Basic Properties
Place of Origin: China
Brand Name: BBT
Certification: ISO9001
Trading Properties
Minimum Order Quantity: 1 set
Payment Terms: L/C, T/T
Supply Ability: 8-10 sets per month
Tags:

Auto Clay Brick Cutting Machine

Clay Block Cutter Machine

Solid Clay Brick Cutting Machine
Product Summary
Automatic Clay Brick Cutting Cutter Machine Auto brick plant Automatic brick making project clay brick cutting cutter machine Fully automatic clay brick production line machine clay brickc cutter Clay brick cutter machinery Heavy-duty Push-in Cutter Suitable for the cutting of medium and large size, ...
Product Custom Attributes
Highlight

Automatic Clay Brick Cutting Machine

,

High Speed Clay Brick Cutting Machine

,

Heavy Duty Clay Brick Cutter

Product Description
Detailed Specifications & Features

Automatic Clay Brick Cutting Cutter Machine



Auto brick plant Automatic brick making project clay brick cutting cutter machine

Fully automatic clay brick production line machine clay brickc cutter

High Speed Automatic Clay Brick Cutting Machine Cutter Heavy Duty 0

Clay brick cutter machinery

Heavy-duty Push-in Cutter

Suitable for the cutting of medium and large size, semi-hard plastic, soft plastic extrusion products. (standard brick, KP1, block)

Specification:

Maximum cutting frequency: 12-16 times per minute

Maximum sliver length: 2.1 m

Maximum cutting height: 300mm

Main Characteristic:

Hydraulic or servo motor for cutting power, accurate cutting, high speed and smooth;

Automatically alarm when the steel wire is broken , the cutting frame is automatically transposed for easy operation;

The cutting frame swings up and down and the saw cutting reduces the damage of the bricks;

Single or double frame can be selected for saving time.

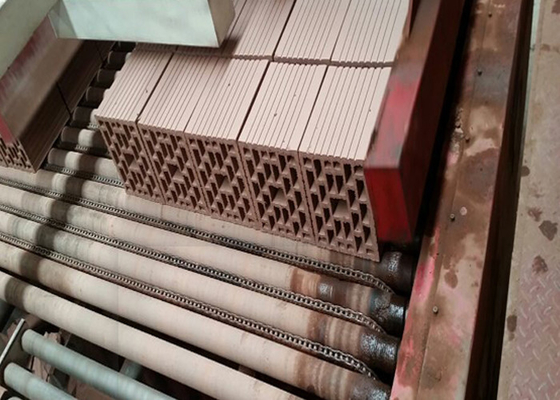

High Speed Automatic Clay Brick Cutting Machine Cutter Heavy Duty 1

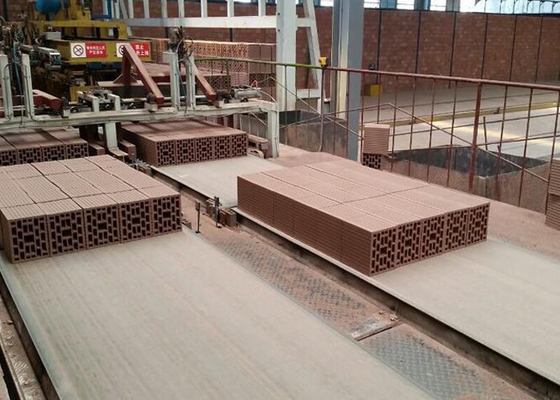

High Speed Automatic Clay Brick Cutting Machine Cutter Heavy Duty 2

Clay brick cutting machine technical parameters:

Specification Model Length (mm) Max Cutting Degree(f/m) Power Requirement (kw) Exterior Dimension (mm)
QTQD-1 1254 17 Y4-5.5 2320x1320x1100 1700x2000x1560
QTQD-1G 1254 17 Y4-7.5
QTA2+QPO1 1430 17 Y4-7.5 5000×2200×1750

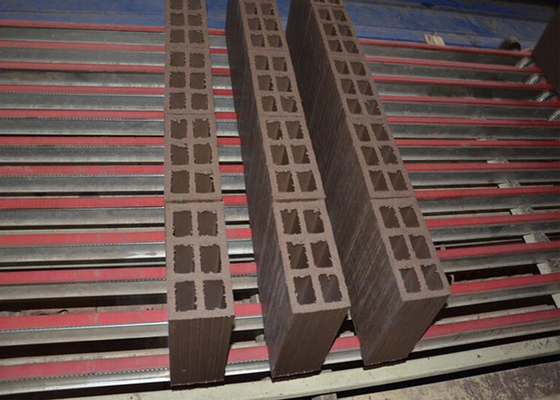

High Speed Automatic Clay Brick Cutting Machine Cutter Heavy Duty 3

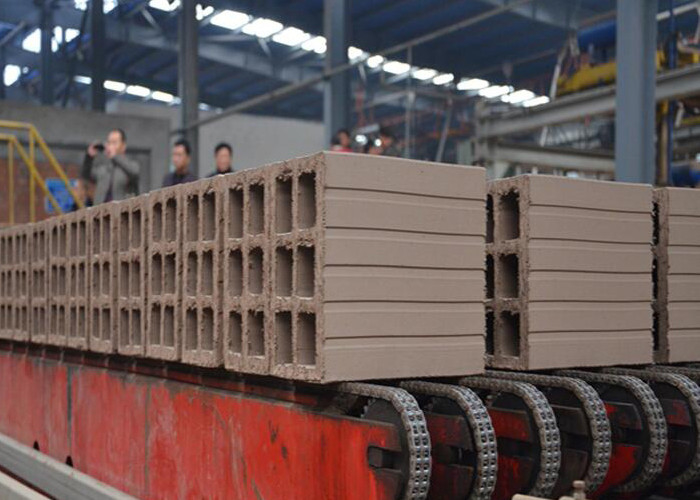

High Speed Automatic Clay Brick Cutting Machine Cutter Heavy Duty 4

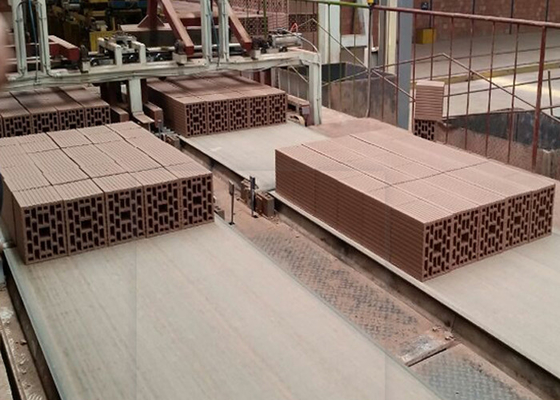

High Speed Automatic Clay Brick Cutting Machine Cutter Heavy Duty 5

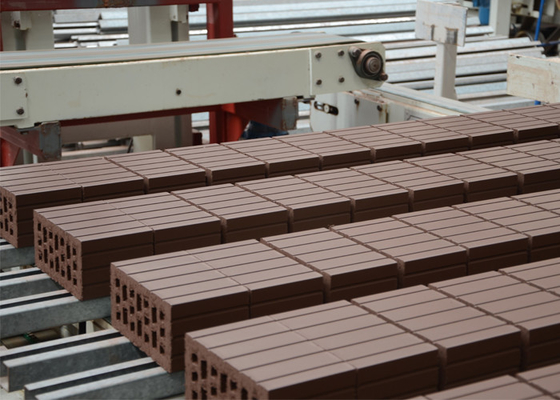

High Speed Automatic Clay Brick Cutting Machine Cutter Heavy Duty 6

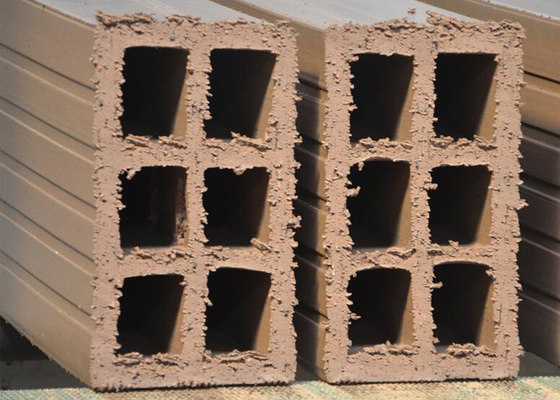

High Speed Automatic Clay Brick Cutting Machine Cutter Heavy Duty 7
