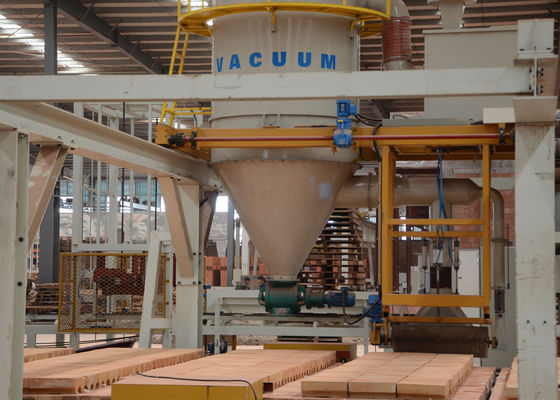

Automatic Kiln Car Cleaning System for Tunnel Kiln ,Energy-Saving , Eco-Friendly Brick making Factory Equipment

Automatic Kiln Car Cleaning System for Tunnel Kiln ,Energy-Saving , Eco-Friendly Brick making Factory Equipment

Working process of Clay brick making project tunnel kiln automatic vacuum cleaner for kiln cart cleaning

①. After the kiln car stops at the cleaning position, the lifting and vacuuming part expands to the required working height,

At the same time, the suction part and the roller brush part start to work. Dust on the surface of the kiln car and it will be absorbed in the gap during work;

②. After the moving part reaches the end of the kiln car, the first kiln car is cleaned and stops working, and the lifting and vacuuming part rises and moves to the end of the kiln in parallel with the rolling brush. Cleaning the next position of the kiln car, the vacuum section will extend to the desired height and cycle to the next position.

③. There is dust in the ash hopper, which is regularly discharged into the box through the electric feeder.

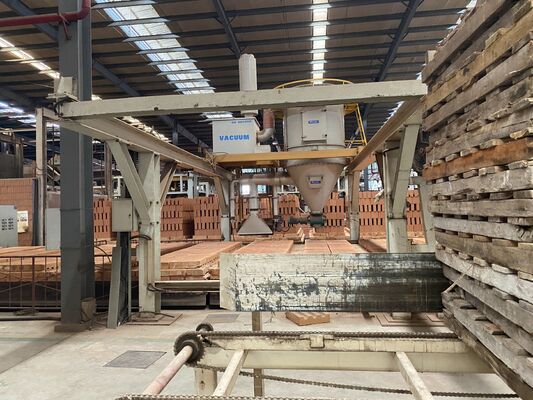

Automatic Kiln Car Cleaning Equipment for Tunnel Kiln Brick Factory

Why Use an Automatic Vacuum Cleaner for Kiln Car Cleaning?

During the firing process of clay bricks and tiles, brick plants inevitably generate large amounts of dust. This dust mainly comes from incomplete internal combustion, as coal and combustion additives are mixed into raw materials to support firing, leading to fine dust particles being released into the air. When kiln cars exit the tunnel kiln with finished fired bricks, a considerable amount of dust and debris remains attached to the kiln cars.

After unloading the fired bricks, manual cleaning can only remove large particles from the surface of the kiln cars. However, fine dust accumulated inside the kiln car structure cannot be fully eliminated by manual work, which will accelerate wear and tear, reduce service life, and affect the normal operation of the kiln car over time.

The automatic vacuum cleaner developed by BBT is specially designed for thorough kiln car cleaning. It features high efficiency, environmental protection, energy saving, and significant labor cost reduction for brick factories.

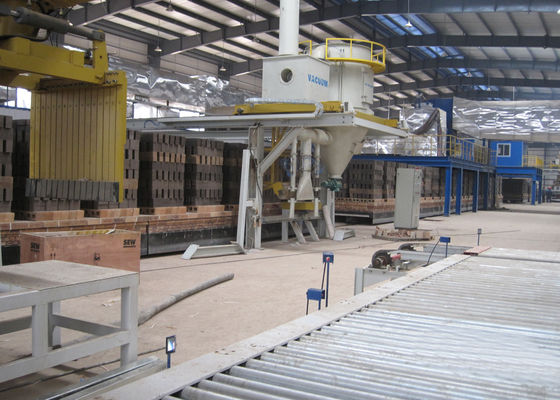

Automatic Kiln Car Cleaning System for Tunnel Kiln

Structure of kiln cart cleaner/sweeper:
The automatic vacuum cleaner adopts a bridge-frame as the designing layout,
* whole structure are divided into 5 parts:
1. The supporting frame of the whole machine,
2. The rolling brush cleaning part,
3. The lifting dust suction part,
4. The walking moving part,
5. The electrical controlling part.



Tunnel kiln cart automatic vacuum cleaner,Automatic vacuum cleaner for kiln car cleaning:

* Works automatically
* Simple structure
* high working efficiency
* Easy to maintain
* Used for kiln car cleaning in clay brick production line
*It can be customized according to the size of the kiln car.
