Clay Brick Making Box Feeding Equipment Plate Steel Type

Description
Name: Plate Steel Box Feeder Clay Brick Plant Box Feeder Type: Steel Type
Raw Material: Wet Clay /hard Clay Materials Brick Type: Solid /hollow Bricks Blocks
Application: Supplying Clay Bricks Raw Materials
Highlight:

Clay Brick Box Feeding Equipment

,

Plate Steel Box Feeding Equipment 4kw

,

Wet Clay Brick Plate Feeder

Plate steel type box feeder machinery for clay brick making factory box feeding equipment

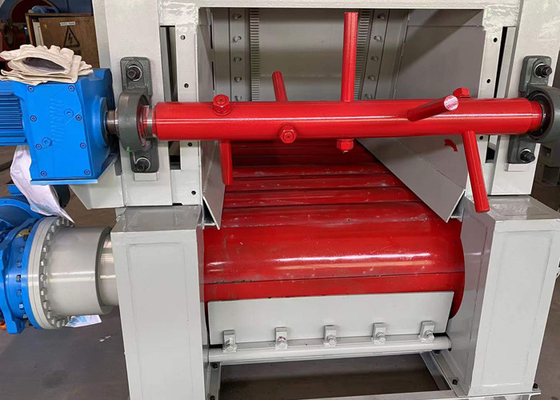

Clay Brick Making Box Feeding Equipment Plate Steel Type 0

Plate steel type box feeder machinery for clay brick making factory

Box feeding machine plate feeder is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China.



Plate steel type box feeder machinery for clay brick making factory box feeding equipment

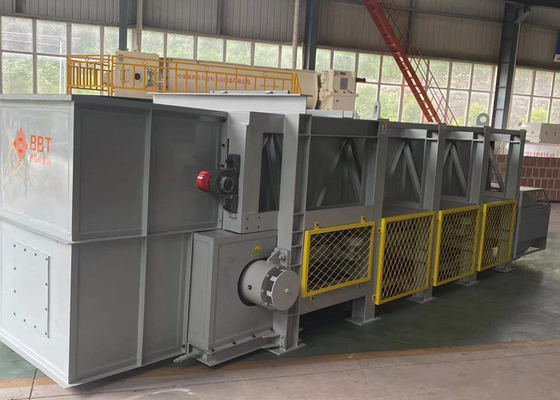

Clay Brick Making Box Feeding Equipment Plate Steel Type 1

Working principle and structural characteristics

The power of the plate feeder is driven by the motor of the transmission device, and after being decelerated by the reducer, the power is transmitted to the driving shaft. At that time, the two sprockets mounted on the drive shaft rotate with the drive shaft.  the two chains meshing with the head and tail sprockets also move forward with the rotation of the driving sprocket and the tail wheel, and the chain plate is installed on the chain to move synchronously with the chain.

The function of the chain plate is to afford the full weight of the material. With the movement of the chain, the chain plate also completes the process of transporting the material.

The gate can be raised and lowered manually to control the amount of material discharged, the scraper at the bottom can clean the raw materials stuck on the chain plate, and the feeding rod is driven by the motor and decelerated by the reducer to make the material run more uniformly and smoothly.



The plate feeder is mainly composed of the following components:

Transmission system: electric motor, reducer, driving shaft, driven shaft, sprocket, chain plate.

Other devices: silo gate, scraper, feeding system, rack, silo, guard.



Plate steel type box feeder machinery for clay brick making factory box feeding equipment

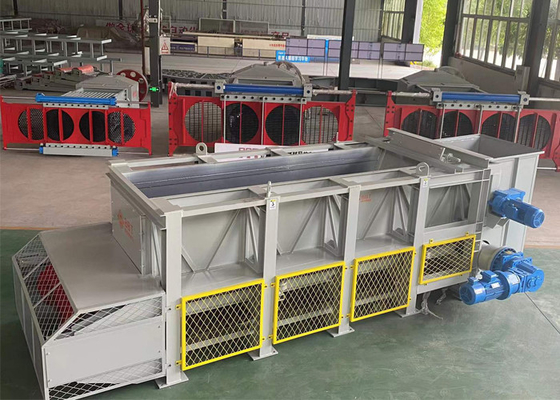

Clay Brick Making Box Feeding Equipment Plate Steel Type 2



Full auto red clay brick box feeder technical parameters:

Item Specification
Production capacity 10-50m3/hr
Center distance between the driving and tensionomg sprocket 4500mm
Chain travel track center distance 1175mm
Weight 6200kg
Dimensions 6015*2500*1750 mm
Power 4+4kw



Clay brick production line box feeder machinery

Clay Brick Making Box Feeding Equipment Plate Steel Type 3
