Clay Brick Plant Box Feeder Machine Plate Steel Type With Large Capacity 6.2t

Certification
China Xi'an BBT Clay Technologies Co., Ltd. certification
I'm Online Chat Now

Clay Brick Plant Box Feeder Machine Plate Steel Type With Large Capacity 6.2t

Clay Brick Plant Box Feeder Machine Plate Steel Type With Large Capacity 6.2t
Clay Brick Plant Box Feeder Machine Plate Steel Type With Large Capacity 6.2t Clay Brick Plant Box Feeder Machine Plate Steel Type With Large Capacity 6.2t Clay Brick Plant Box Feeder Machine Plate Steel Type With Large Capacity 6.2t

Large Image :  Clay Brick Plant Box Feeder Machine Plate Steel Type With Large Capacity 6.2t

Product Details:
Place of Origin: China
Brand Name: BBT
Certification: ISO9001:2008
Model Number: TCNL1045
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Box feeder machine by container sea shipment
Delivery Time: 7-15days
Payment Terms: L/C, T/T

Clay Brick Plant Box Feeder Machine Plate Steel Type With Large Capacity 6.2t

Description
Name: Auto Brick Factory Red Clay Brick Plant Box Feeder Type: Plate Steel Type Box Feeder Machine
Raw Material: Wet /hard Clay Soil Mud Fly Ash Of Materials Brick Type: Solid /hollow/ceramic Blocks
Application: Clay Bricks Raw Materials Feeder Machine Weight: 6.2t
Highlight:

Clay Brick Plant Box Feeder Machine

,

Plate Steel Brick Feeder Machine

,

Clay Brick Plate Feeder Machine

BBT Clay brick box feeder machinery price with large capacity brick making plant equipment

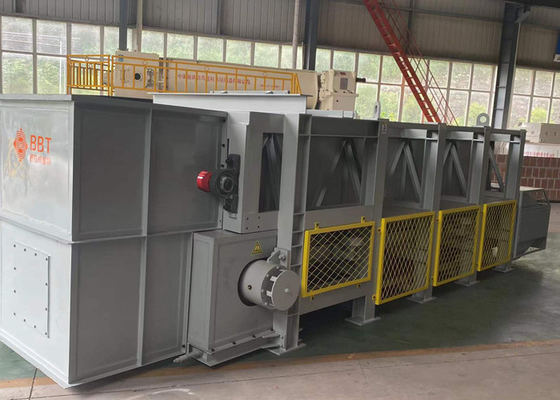

Clay Brick Plant Box Feeder Machine Plate Steel Type With Large Capacity 6.2t 0

Plate steel type box feeder machinery for clay brick making factory box feeding equipment

BBT NEW TYPE DESIGN TCNL1045 plate feeder is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China. The machine is reasonable in structure, stable in operation, low in failure rate, and easy to use and maintain. This product is widely used in mining, building materials, metallurgy and other industries to achieve uniform feeding and batching, and can also be used in other occasions where similar sharp block materials are uniformly fed.



Clay brick box feeder machinery price with large capacity brick making plant equipment

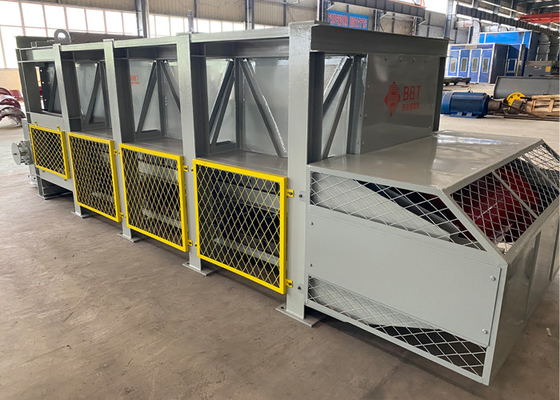

Clay Brick Plant Box Feeder Machine Plate Steel Type With Large Capacity 6.2t 1

Box feeder machine of Working principle and structural characteristics

The power of the plate feeder is driven by the motor of the transmission device, and after being decelerated by the reducer, the power is transmitted to the driving shaft. At that time, the two sprockets mounted on the drive shaft rotate with the drive shaft. In addition, the two chains meshing with the head and tail sprockets also move forward with the rotation of the driving sprocket and the tail wheel, and the chain plate is installed on the chain to move synchronously with the chain.

The function of the chain plate is to afford the full weight of the material. With the movement of the chain, the chain plate also completes the process of transporting the material.

The gate can be raised and lowered manually to control the amount of material discharged, the scraper at the bottom can clean the raw materials stuck on the chain plate, and the feeding rod is driven by the motor and decelerated by the reducer to make the material run more uniformly and smoothly.



The plate feeder is mainly composed of the following components:

Transmission system: electric motor, reducer, driving shaft, driven shaft, sprocket, chain plate.

Other devices: silo gate, scraper, feeding system, rack, silo, guard.



Clay brick box feeder machinery price with large capacity brick making plant equipment

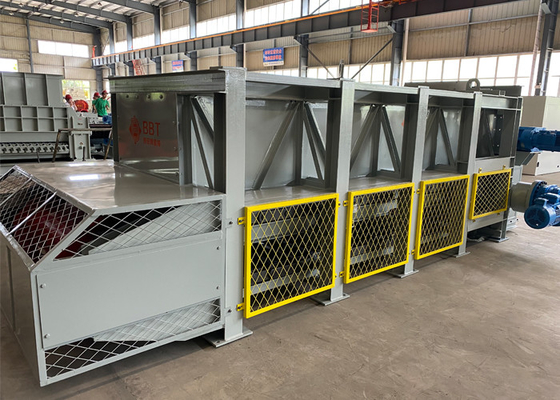

Clay Brick Plant Box Feeder Machine Plate Steel Type With Large Capacity 6.2t 2



Full auto red clay brick box feeder technical parameters:

Item Specification
Production capacity 10-50m3/hr
Center distance between the driving and tensionomg sprocket 4500mm
Chain travel track center distance 1175mm
Weight 6200kg
Dimensions 6015*2500*1750 mm
Power 4+4kw



Clay brick production line box feeder machinery with large capacity brick making line equipment

Clay Brick Plant Box Feeder Machine Plate Steel Type With Large Capacity 6.2t 3
