TWGD3300 Double Shaft Mixer Fully Automatic Clay Brick Mixing Machinery

Large Image : TWGD3300 Double Shaft Mixer Fully Automatic Clay Brick Mixing Machinery

Product Details:

Place of Origin:	China
Brand Name:	BBT
Certification:	ISO9001
Model Number:	TWGD3300

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Double shaft mixer machine by container sea shipment
Delivery Time:	7-15 days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Contact Now

TWGD3300 Double Shaft Mixer Fully Automatic Clay Brick Mixing Machinery

Description

Item:	TWGD3300 Double Shaft Mixer Fully Automatic Clay Brick Mixing Machinery	Raw Material:	Clay
Brick Type:	Solid,hollow	Distance Between The Inlet And Outlet Is:	3300mm
Production Capacity:	30-40m3/hr	Rotating Speed:	30 Rpm
Weight:	9300kg	Dimensions:	706024501150mm
Highlight:	TWGD3300 Double Shaft Mixer , Automatic Brick Clay Mixing Machine , Twin Shaft Clay Brick Mixer Machine

BBT TWGD3300 double shaft mixer fully automatic clay brick mixing machinery

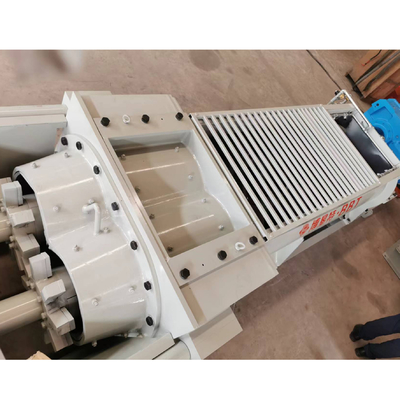

TWGD3300 Double Shaft Mixer Fully Automatic Clay Brick Mixing Machinery 0

Clay brick double shaft mixer machinery

TWGD3300 double shaft extruding mixer is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China. This machine is a raw material processing equipment, suitable for sintered brick production lines fired with clay, shale, coal gangue and sludge as the main raw materials. It is mainly used for stirring, extrusion and kneading of mixed materials and water to improve the plasticity and forming ability of raw materials. It has the characteristics of uniform stirring, strong load bearing capacity, long service life and wide application range.

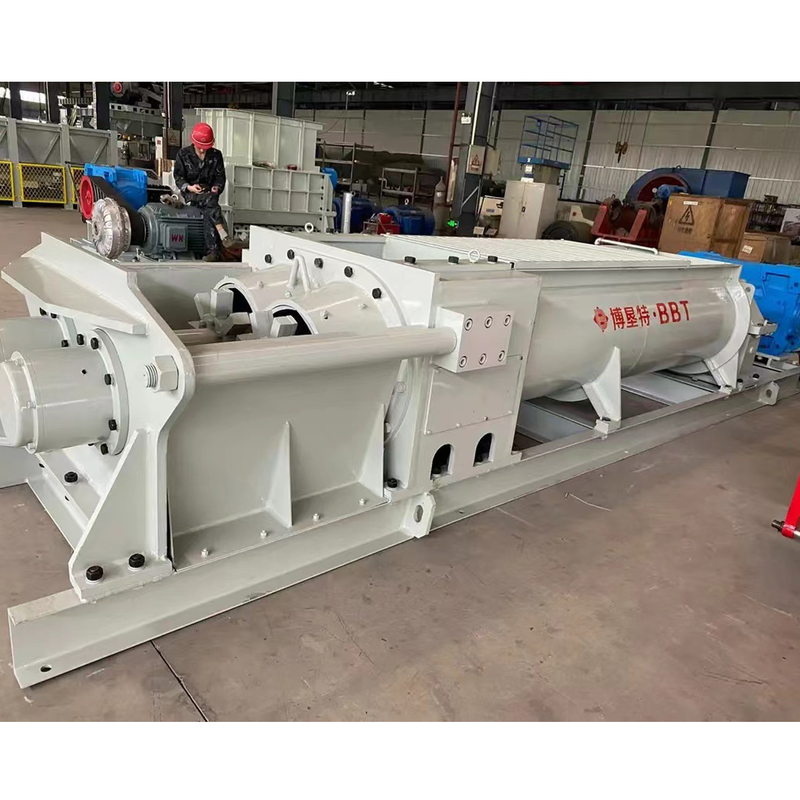

TWGD3300 Double Shaft Mixer Fully Automatic Clay Brick Mixing Machinery 1

TWGD3300 double shaft mixer fully automatic clay brick mixing machinery

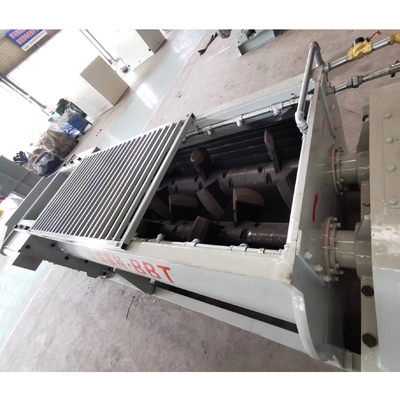

TWGD3300 Double Shaft Mixer Fully Automatic Clay Brick Mixing Machinery 2

Double shaft mixer of technical parameters:

Item	Production capacity	Rotating speed	Weight	Dimensions	Power
Data	30-40m3/hr	30rpm	9300kg	706024501150mm	75kw

Tag:

Contact Person: Ms. Pan

Tel: 86 177 9142 2086
