TWPM185 Wet Pan Mill for Clay Brick Making with 90+2.2+2.2+1.5kw Power Crushing Grinding Kneading Mixing and Stable Operation

TWPM185 Wet Pan Mill for Clay Brick Making with 90+2.2+2.2+1.5kw Power Crushing Grinding Kneading Mixing and Stable Operation
TWPM185 Wet Pan Mill for Clay Brick Making with 90+2.2+2.2+1.5kw Power Crushing Grinding Kneading Mixing and Stable Operation TWPM185 Wet Pan Mill for Clay Brick Making with 90+2.2+2.2+1.5kw Power Crushing Grinding Kneading Mixing and Stable Operation TWPM185 Wet Pan Mill for Clay Brick Making with 90+2.2+2.2+1.5kw Power Crushing Grinding Kneading Mixing and Stable Operation

Large Image :  TWPM185 Wet Pan Mill for Clay Brick Making with 90+2.2+2.2+1.5kw Power Crushing Grinding Kneading Mixing and Stable Operation

Product Details:
Place of Origin: China
Brand Name: BBT
Certification: ISO9001
Model Number: TWPM-185
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wet pan mill by container sea shipment
Delivery Time: 20-30days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per year
Contact Now

TWPM185 Wet Pan Mill for Clay Brick Making with 90+2.2+2.2+1.5kw Power Crushing Grinding Kneading Mixing and Stable Operation

Description
Item: New Brick Making Factory Wet Pan Mill Machinery For Clay Brick Making 1850 X 700 Material: Clay,mud
Diameter Of Rollers: 1850 Production Capacity: 40-50
Roller Specification: 1850*700 Weight: 65200
Dimension: 5300*4600*6500 Power: 90+2.2+2.2+1.5kw
Model: TWPM185
Highlight:

Clay Brick Wet Pan Mill Machine

,

Pan Wet Grinding Mills

,

Brick Making Wet Milling Equipment

TWPM185 Wet Pan Mill Machinery for Clay Brick Making
Premium Wet Pan Mill for Clay Brick Production
TWPM185 Wet Pan Mill for Clay Brick Making with 90+2.2+2.2+1.5kw Power Crushing Grinding Kneading Mixing and Stable Operation 0

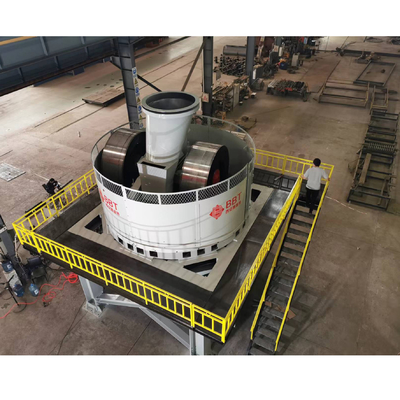

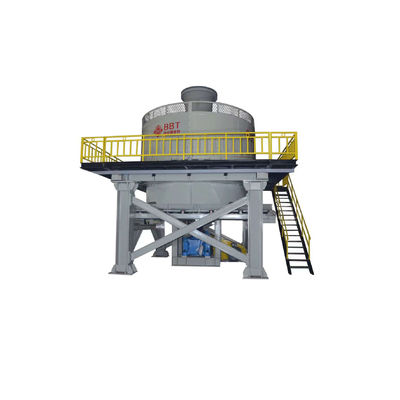

The TWPM-185 wet pan mill is an advanced raw material processing machine developed through international technology absorption, offering superior performance in China's brick manufacturing sector. Designed for sintered brick production using coal gangue, fly ash, shale, clay, and sludge, this machine combines crushing, grinding, kneading, and mixing functions to significantly enhance raw material properties and final product quality.
Working Principle

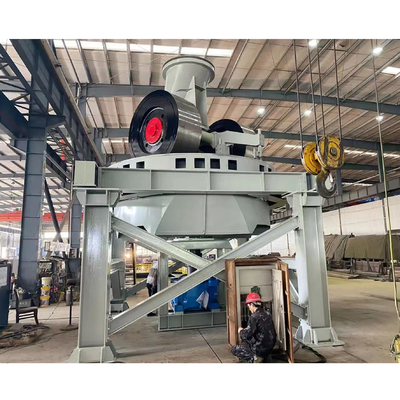

The motor-driven system utilizes a hydraulic coupling for smooth startup, transmitting power through a reducer to the main shaft. The innovative expansion sleeve connection between shaft and suspension seat ensures easy maintenance and overload protection. Dual rollers perform simultaneous rotation around both the main shaft and their own axes, processing water-mixed materials through a precise crushing and grinding sequence that culminates in sieve plate extrusion.
TWPM185 Wet Pan Mill for Clay Brick Making with 90+2.2+2.2+1.5kw Power Crushing Grinding Kneading Mixing and Stable Operation 1 TWPM185 Wet Pan Mill for Clay Brick Making with 90+2.2+2.2+1.5kw Power Crushing Grinding Kneading Mixing and Stable Operation 2 TWPM185 Wet Pan Mill for Clay Brick Making with 90+2.2+2.2+1.5kw Power Crushing Grinding Kneading Mixing and Stable Operation 3
Technical Specifications
No. Item TWPM185 TWPM200
1 Roller size 1850*700mm diameter*width 2000*900mm diameter*width
2 Rotate speed for main shaft ≥13 rpm ≥13 rpm
3 Motor Power 90+2.2+2.2+1.5kw 142kw
4 Effective diameter of rollers 1850mm 2000mm
5 Rotating speed ≥29rpm ≥29rpm
6 Diameter for screen hole Customized building Customized building
7 Production capacity 40-50 m³/h 60-90 m³/h
8 Total weight of equipment 65200 kg 70000 kg
9 Dimensions 5300*4600*6500mm 6700*6500*6700mm
Complete Clay Brick Production Solutions
  • TCNL series of Chain full steel type box feeder
  • TWGD series of double shaft mixer
  • GS series of roller crusher
  • TRA series of double tooth roller crusher
  • TWJH series of front grid extruding mixer
  • TWPM series of wet pan mill
  • QTQG series of cutter
  • EV series of vacuum extruder
  • Robot setting machine
  • Brick machine spare parts
BBT provides comprehensive automatic clay brick production solutions including project design, construction, and technical support.
