2 Ton/H Pottery Vacuum Extruder Clay Brick For Laboratory
Ceramic Extruder Machine
,Pottery Vacuum Extruder Clay Brick
,2 Ton/H Vacuum Extruder Clay Brick

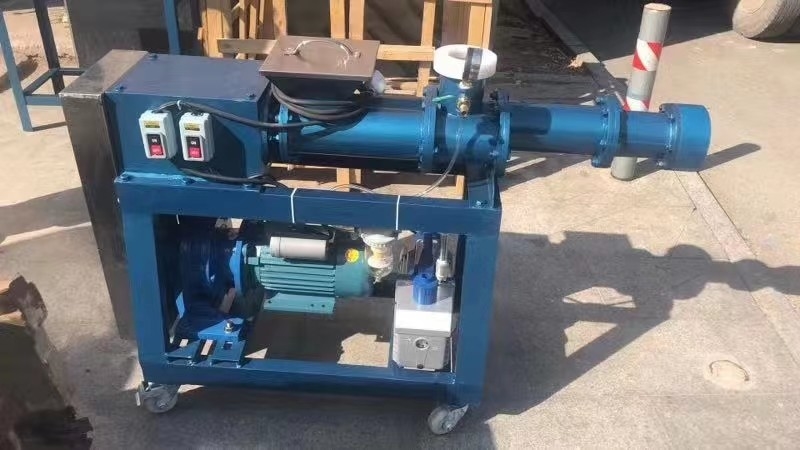

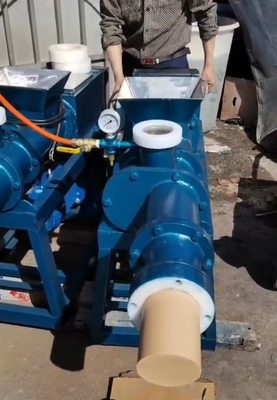

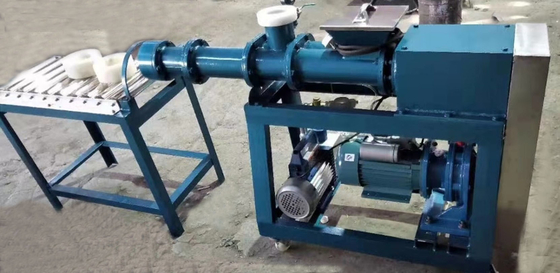

Ceramic extruded machine for pottery Laboratory use vacuum extruder clay brick use
ceramic extruded machine for pottery Laboratory use vacuum extruder clay brick use is a mechanical equipment that mainly kneads and degasses the mud in ceramic production. It can also be used for mixing the mud before drawing, and can eliminate the bubbles in the mud. The machine is suitable for the mud with a moisture content of about 20% - 24%, and the mud or recycled mud can be used.
Specification of ceramic extruded machine for pottery Laboratory use vacuum extruder clay brick use
| Model | type 200 |
| capacity (ton/h) | 2 |
| size of outlet (mm) | 150 |
| screw speed(rpm) | 35 |
| Power required (kw) | 5.5 |
Structures of ceramic extruded machine for pottery Laboratory use vacuum extruder clay brick use:
The sculpture mud mixer adopts two pairs of shafts for feeding and mixing, and uses a suspended rotating trowel to completely rotate and extrude the raw materials in the mud tank. The trowel can be pulled out directly, which is convenient for later maintenance, and the The hardness and viscosity of the produced clay can reach the pottery workshop, reducing the labor force of stepping on the mud in the artificial pottery pond. And it reduces the problem of ceramic trachoma when the soil size is large during artificial and mud.
Welcome to us about ceramic extruded machine for pottery Laboratory use vacuum extruder clay brick use
