Clay Fine Roller Crusher Machine For Brick Making Factory

I'm Online Chat Now

Clay Fine Roller Crusher Machine For Brick Making Factory

Clay Fine Roller Crusher Machine For Brick Making Factory
Clay Fine Roller Crusher Machine For Brick Making Factory
Clay Fine Roller Crusher Machine For Brick Making Factory Clay Fine Roller Crusher Machine For Brick Making Factory

Large Image :  Clay Fine Roller Crusher Machine For Brick Making Factory

Product Details:
Place of Origin: CHINA
Brand Name: BBT
Certification: ISO
Model Number: GS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Suitable for sea shipment by container
Delivery Time: 20-30 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month

Clay Fine Roller Crusher Machine For Brick Making Factory

Description
Item: Clay Fine Roller Crusher Machine For Brick Making Factory Brick Raw Material: Clay Soil Mud Shale
Method: Roller Crushing Production Capacity (Pieces/8 Hours): 20-30 M3/hour
Highlight:

Clay Fine Roller Crusher Machine

,

Brick Making Roller Crusher Machine

,

30 M3/Hour Fine Roller Crusher

Clay Fine Roller Crusher machine for Brick Making Factory

Clay Fine Roller Crusher Machine For Brick Making Factory 0

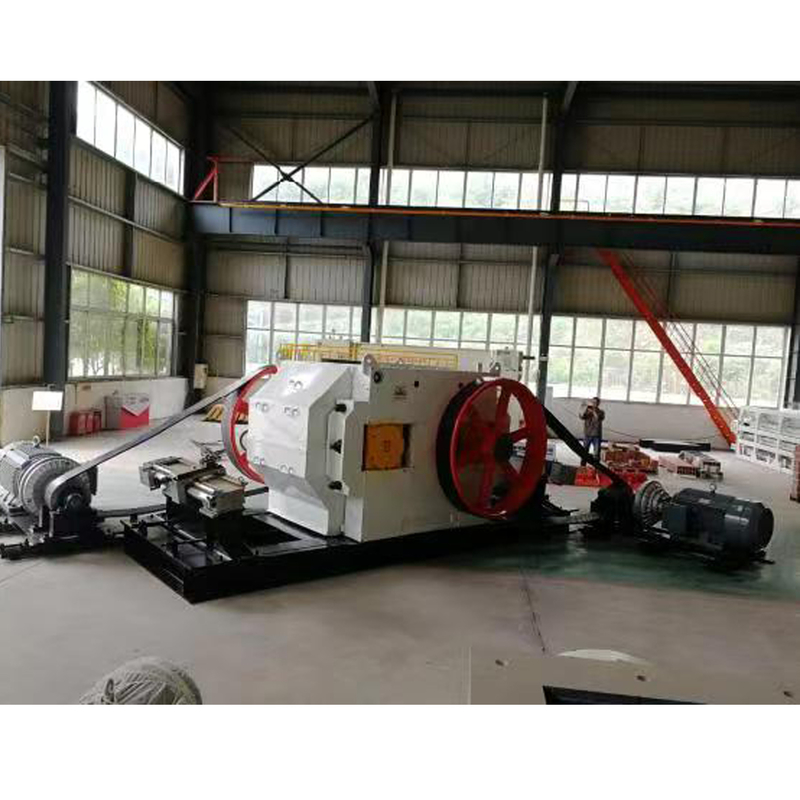

Fine roller crusher

This machine is high wear-resistant fine roller crusher with compact structure, stable operation, high crushing rate, low noise and less dust etc, which is well used in grinding of coal gangue, shale, slag and other materials in brick and tile industry.

Clay Fine Roller Crusher Machine For Brick Making Factory 1



Product Feature of Fine roller crusher

1.the minimum gap between two rollers down to 0.5mm, width between roller could be adjusted with high precision.
2.The roller ring adopts special hard materials with hardness ≥ HRC50., long serving life, low cost for maintenance.
3.Input entrance equipped with homogenizer, which offers uniformly distribution for crushing and extended service life of roller ring.

Clay Fine Roller Crusher Machine For Brick Making Factory 2



Clay roller crusher machine of technical parameters:

No. Model GS1080 GS1210 GS1412
1 Size of roll(diameter * width) 1000*800mm 1200*1000mm 1400*1200mm
2 Hardness of roll ≥53HRC ≥57HRC ≥57HRC
3 Thickness of roll surface ≥140mm ≥160mm ≥160mm
4 Space of roll <1.5 <1.5 <1.5
5 Power 55+75(90)kw ≤110+75kw 160+90kw
6 Linear speed of roll 18.4/15.5m/s 18.4/15.5m/s 18.4/15.5m/s
7 Production capacity 35-50m³/h 45-65m³/h 60-80m³/h
8 Weight 14800kg 23000kg 34000kg
9 Dimension 6200*4000*1700mm 6800*4460*2860mm 7800*6500*2300mm
