GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine

GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine
GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine
GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine

Large Image :  GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine

Product Details:
Place of Origin: CHINA
Brand Name: BBT
Certification: ISO9001,CE, SGS
Model Number: GS series
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: from18000usd to 110000usd for different models.
Packaging Details: fine grinder machine by container sea shipment
Delivery Time: 30-45days
Payment Terms: L/C, T/T, D/P
Supply Ability: 10 sets
Contact Now

GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine

Description
Fine Grinder: GS Series Double Roller Crusher GS700B GS800B GS1000B For Mining And Clay Brick Crushing Clay Brick Machine Material: Clay, Mud,soil
Type: Roller Crushing Equipment Application: Mining ,crusher
Motor Type: AC Motor Maximum Feed Size: 20mm
Highlight:

Mining Clay Bricks Crusher Machine

,

Rock Stone Clay Bricks Crusher Machine

,

High Efficiency Clay Bricks Crusher Machine

GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine 0

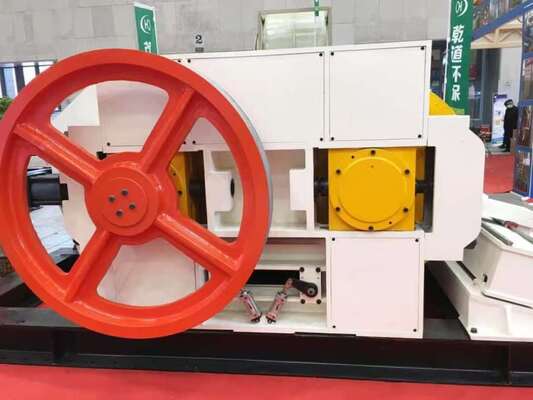

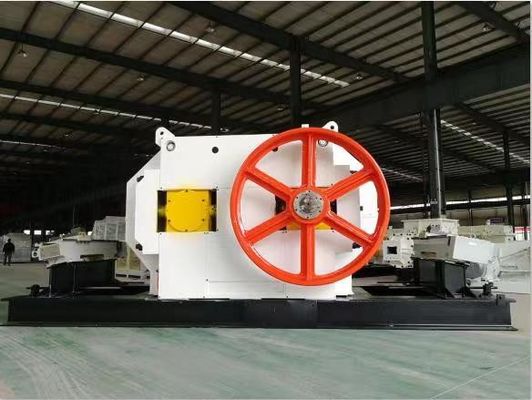

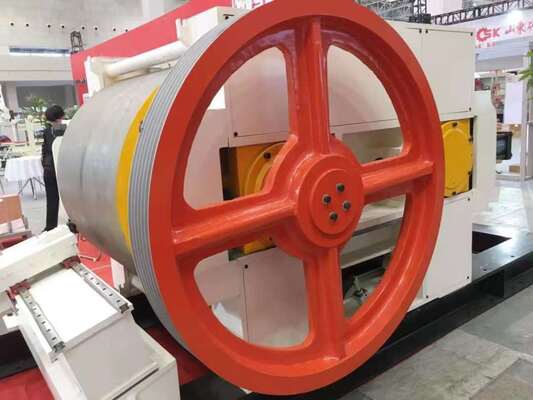

Fine Grinder Roller Crusher for Clay Brick Making Factory

This machine is one of the key equipment in the raw material processing section of the brick production line. It is specially designed for fine grinding of wet and soft raw materials. By crushing, it improves the grain composition and plasticity of brick materials, making it ideal for materials with a moisture content ≤25%. The crushing ratio is 1:4–6, and the maximum feed size is controlled below 20 mm.

The roller clearance of this machine is ≤3 mm. The rollers are supported by two hydraulic cylinders, which can withstand the maximum working load. With a heavy-duty design, the machine features a strong steel structure. The side frame adopts a welded rigid structure with precision machining, ensuring high accuracy, good shock resistance, and safe & stable operation.

When the rollers are worn, a special grinding lathe (optional) can automatically repair the roller rings to maintain stable working performance.

GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine 1

Clay Brick Fine Crusher Machine of Technical Parameters:
This table lists the core technical specifications of GS series clay brick fine crusher, covering multiple models to meet different production capacity demands of brick factories.
All models feature stable performance, uniform discharge granularity, and are specially designed for wet and soft clay material fine crushing treatment.
Specification Model
Capacity (m³/hr)
Power Requirement (kw)
Discharge Granularity (mm)
Exterior Dimension (mm) (L×W×H)
GS700B
13-26
Y6-18.5+18.5
≤3
2940×1430×1440
GS800B
23-37
Y6-22+22
≤3
3150×1700×1520
GS1000B
33-42
Y6-37+37
≤3
5600×1850×1750
GS800M
30-40
Y6-22+22
≤3
3150×1700×1520
GS700M
15-25
Y6-15+15
≤3
1940×1430×1440
Note: The above parameters are standard configuration data, and can be customized according to actual production needs, raw material properties and site conditions of brick factories.

GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine 2



Workshop Production & Manufacturing:

GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine 3



GS Series Double Roller Crusher GS700B GS800B GS1000B for Mining and Clay Brick Crushing Clay Brick Machine 4
