2026 Vacuum Extruder Automatic Red Hollow Clay Brick Making Machinery

2026 Vacuum Extruder Automatic Red Hollow Clay Brick Making Machinery
Basic Properties
Place of Origin: CHINA
Brand Name: BBT
Certification: ISO9001
Model Number: EVS
Trading Properties
Minimum Order Quantity: 1 set brick making machine vacuum extruder
Price: refer to quotation sheet
Payment Terms: L/C, T/T
Supply Ability: 10 sets brick extruder
Tags:

AC Motor Toothed Roller Crusher

Raw Materials Double Toothed Roll Crusher

Mobile Brick Manufacturing Equipment
Product Summary
Fully Automatic Red Clay Soil Brick Vacuum Extruder Hollow Brick Making Production Machinery Brick Extruder used in shaping process of brick production, the treated clay will be plastic extruded by up stage then via vacuum room into down stage extruding into solid or hollow clay column of required ...
Product Custom Attributes
Highlight

Bricks Vacuum Extruder

,

red soil mud brick making machinery

,

automatic brick making machinery

Brick Extruder:
2026 Vacuum Extruder Automatic Red Hollow Clay Brick Making Machinery
Raw Material:
Clay, Clay,coal Gangue ,soil ,fly Ash
Method Of Bricks:
Vacuum Extruding
Electricty Voltage:
380-415kw
Core Components:
PLC, Engine, Motor, Pump, Bearing,auger
Production Capacity:
7000-12000pcs/h
Product Description
Detailed Specifications & Features

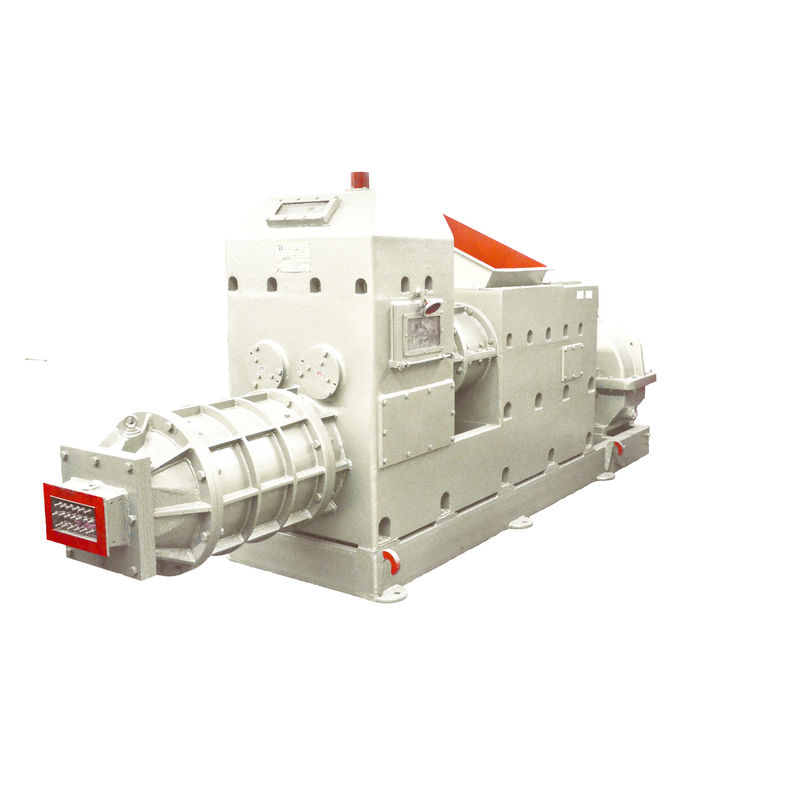

Fully Automatic Red Clay Soil Brick Vacuum Extruder Hollow Brick Making Production Machinery



Brick Extruder used in shaping process of brick production, the treated clay will be plastic extruded by up stage then via vacuum room into down stage extruding into solid or hollow clay column of required cross section and shape which then cut into green brick by green brick cutter.

It is a key device to make solid and hollow bricks.

Red brick making machine Lower Price bricks vacuum extruder red soil mud clay hollow automatic brick making machinery

2026 Vacuum Extruder Automatic Red Hollow Clay Brick Making Machinery 0



Bricks Vacuum Extruder Red Soil Mud Clay Hollow Automatic Brick Making Machinery

2026 Vacuum Extruder Automatic Red Hollow Clay Brick Making Machinery 1



Brick Extruder Main technical parameter:

Item Unit of measurement EVS40
Production capacity

standard brick/hour

(240*115*53)

 9000-12000
Maximum extrusion pressure Mpa 1.0-2.0
Vacuum degree Mpa ≥0.092
Power KW 55-75
Weight t 10





Clay brick making plant vacuum extruder in clay brick making production line

2026 Vacuum Extruder Automatic Red Hollow Clay Brick Making Machinery 2





Other recommendations for your business

BBT provides all machinery and equipment for full automatic clay brick production lines:

· TCNL series Chain full steel type box feeder

· MD/ME series Double shaft mixer

· GS/SGSP series Roller crusher

· TRA series Double tooth roller crusher

· JH series Front grid extruding mixer

· TWPM series Wet pan mill

· QTQG series Cutter

· EV series Vacuum extruder

· Robot setting machine

· Brick machine spare parts
