Automatic Clay Brick Production Line Wet Pan Mill Machine with 8500kg Inner Roller Weight

Large Image : Automatic Clay Brick Production Line Wet Pan Mill Machine with 8500kg Inner Roller Weight

Product Details:

Place of Origin:	CHINA
Brand Name:	BBT
Certification:	ISO90001
Model Number:	TWPM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	0
Packaging Details:	wet pan mill of packaging is suitable for sea shipment
Delivery Time:	15-30days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	5 sets per month

Contact Now

Automatic Clay Brick Production Line Wet Pan Mill Machine with 8500kg Inner Roller Weight

Description

Item:	Automatic Clay Brick Production Line Wet Pan Mill Machine With 8500kg Inner Roller Weight	Diameter*width（mm）:	1,850*700
Power（kw）:	98kw	Inner Roller Weight（kg）:	8500
Outer Roller Weight（kg）:	12750kg	Key Components:	Sieve Plate ,Roller ,Pan ,Supporting Structure,Spindle ,Motor And Reducer
Highlight:	8500kg Wet Pan Mill , Automatic Wet Pan Mill , Automatic Clay Brick Production Line

Automatic Clay Brick Production Line Wet Pan Mill Machine with 8500kg Inner Roller Weight

Wet pan mill

The wet pan mill is used in the raw material preparation section of brick-making production line, which can improve the comprehensive process performance of raw materials.It is mainly used for medium and fine crushing of materials, and can crush medium-hard clay, clinker, silica, coal gangue, fly ash, shale, sludge, coal slime, etc. , mixing a variety of materials and other functions. The material particles crushed by the roller are approximately spherical, and the edges and corners are not sharp.The equipment is easy to maintain daily and the feeding size is not too strict. The equipment is self-heavy, the overall rigidity is strong, the impact resistance is strong, and the equipment operation is safe and stable.

Wet pan mill of technical parameters:

No.	Item	TWPM185	TWPM200
1	Roller size	1850700mm diameterwidth	2000900mm diameterwidth
2	Rotate speed for main shaft	≥13 rpm	≥13 rpm
3	Motor Power	90+2.2+2.2+1.5kw	142kw
4	Effective diameter of rollers	1850mm	2000mm
5	Rotating speed	≥29rpm	≥29rpm
6	Diameter for screen hole	Customized building	Customized building
7	Production capacity	40-50 m³/h	60-90 m³/h
8	Total weight of equipment	65200 kg	70000 kg
9	Dimensions	530046006500mm	670065006700mm

Full automatic clay brick making production line machine Wet pan mill

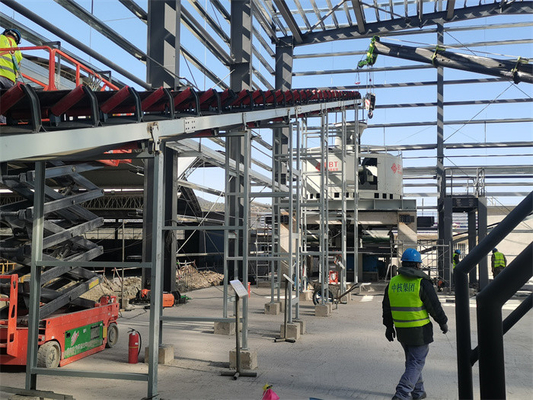

Automatic Clay Brick Production Line Wet Pan Mill Machine with 8500kg Inner Roller Weight 0

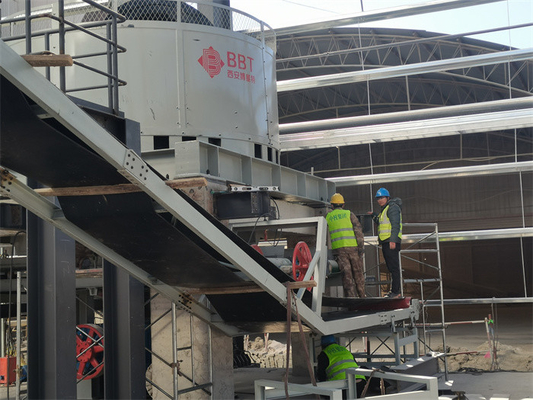

Automatic Clay Brick Production Line Wet Pan Mill Machine with 8500kg Inner Roller Weight 1

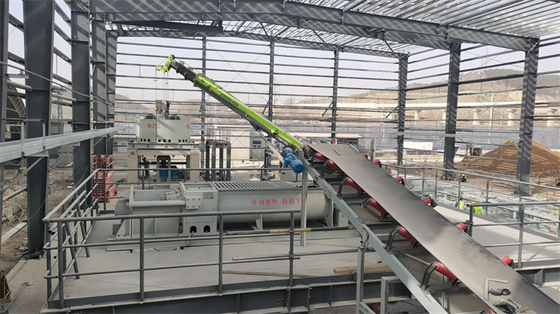

Automatic Clay Brick Production Line Wet Pan Mill Machine with 8500kg Inner Roller Weight 2

Automatic Clay Brick Production Line Wet Pan Mill Machine
