Clay Brick Wet Pan Mill Wet Grinding Wheel Mill For Brick Making

Large Image : Clay Brick Wet Pan Mill Wet Grinding Wheel Mill For Brick Making

Product Details:

Place of Origin:	China
Brand Name:	BBT
Certification:	ISO9001
Model Number:	TWPM-185

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	wet pan mill by container sea shipment
Delivery Time:	20-30days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per year

Contact Now

Clay Brick Wet Pan Mill Wet Grinding Wheel Mill For Brick Making

Description

Item:	Clay Brick Wet Pan Mill Wet Grinding Mill For Brick Making	Model:	TWPM185
Production Capacity:	45-50	Roller Specification:	1850*700
Total Weight:	54000kg	Material:	Clay Sand Shale
Highlight:	TWPM185 Wet Pan Mill , 45-50 Size Wet Pan Mill

Clay Brick Wet Pan Mill Wet Grinding Mill For Brick Making from BBT China

The wet pan mill auto clay brick making factory wet pan mill price with high quality

Clay brick making plant wet pan mill for auto brick making project

wet pan mill is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China. The machine is reasonable in structure, stable in operation, low in failure rate, and easy to use and maintain

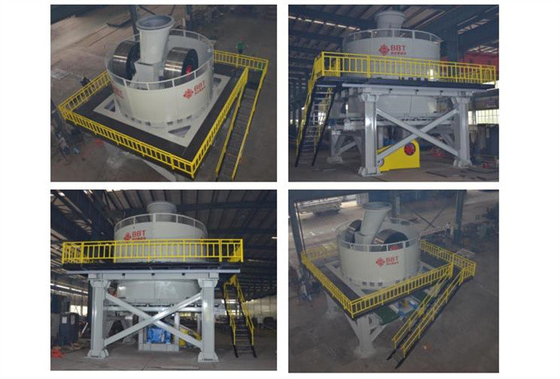

Clay brick wet pan mill production processing in BBT manufacturer

Clay Brick Wet Pan Mill Wet Grinding Wheel Mill For Brick Making 0

Clay Brick Wet Pan Mill Wet Grinding Wheel Mill For Brick Making 1

Clay Brick Wet Pan Mill Wet Grinding Wheel Mill For Brick Making 2

Wet pan mill of technical parameters:

No.	Item	TWPM185	TWPM200
1	Roller size	1850700mm diameterwidth	2000900mm diameterwidth
2	Rotate speed for main shaft	≥13 rpm	≥13 rpm
3	Motor Power	90+2.2+2.2+1.5kw	142kw
4	Effective diameter of rollers	1850mm	2000mm
5	Rotating speed	≥29rpm	≥29rpm
6	Diameter for screen hole	Customized building	Customized building
7	Production capacity	40-50 m³/h	60-90 m³/h
8	Total weight of equipment	65200 kg	70000 kg
9	Dimensions	530046006500mm	670065006700mm

Tag:

Contact Person: Ms. Pan

Tel: 86 177 9142 2086

Other Products

BBT Clay Brick Wet Pan Mill / Wet Grinding Mill For hollow Brick block ceramic Making plant

Inner roller: 12500 kg

Outer roller: 8500kg

Pan: 9.7t

Item: BBT Clay Brick Wet Pan Mill / Wet Grinding Mill For hollow Brick block ceramic Making plant

Steel Pan Wet Milling Machine Materials Processing Wet Grinding Machine

Color: White

Material: Steel

Production Capacity: 40-90 tons/hr availble

Core Components:: Motor, Roller, Reducer

Large Capacity Wet Pan Mill / Gold Grinding Machine For Clay Material

Inner roller: 12500 kg

Outer roller: 8500kg

Pan: 9700kg

Customized Wet Grinding Mill 65200kg Weight For Clay Brick Production Line

Power(w): 90+2.2+2.2+1.5kw

Condition: New

Warranty: 1 year

Dimension: 5300*4600*6500mm

Compact Wet Pan Mill Machine Fully Automatic For Brick Making Equipment

Inner roller: 12500 kg

Outer roller: 8500kg

Pan: 9700kg
