Big Hole Blocks Making Mixer Extruder Machine Filter Mixing Machinery 650mm Reamer Diameter

Big Hole Blocks Making Mixer Extruder Machine Filter Mixing Machinery 650mm Reamer Diameter
Basic Properties
Place of Origin: China
Brand Name: BBT
Certification: ISO
Model Number: TWJH
Trading Properties
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6 sets per month
Tags:

Double Shaft Mixer Machine

Extruder Double Shaft Mixer

Double Shaft Clay Mixer For Bricks
Product Summary
2025 Good quality red bricks blocks mixing machine new design big hole blocks making factory mixer extruder machine (Filter mixing machinery) Filter mixing double shaft mixer machinery for auto brick making factory TWJH550 front grid mixer extruder is a new product developed by our company on the ...
Product Custom Attributes
Highlight

Big Hole Blocks Making Mixer Extruder

,

650mm Reamer Diameter Filter Mixing Machinery

Name:
Big Hole Blocks Making Factory Mixer Extruder Machine (Filter Mixing Machinery)
Item:
TWJH650 Front Grid Mixer Extruding
Brick Type:
Solid Brick, Hollow Blocks
Factory:
Clay Red Brick Making Factory
Reamer Diameter:
650（mm）
Weight:
13800（kg）
Height:
1800（mm）
Width:
4500（mm）
Power:
110/132（kw）
Product Description
Detailed Specifications & Features

2025 Good quality red bricks blocks mixing machine new design big hole blocks making factory mixer extruder machine (Filter mixing machinery)



Filter mixing double shaft mixer machinery for auto brick making factory

TWJH550 front grid mixer extruder is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China.

The function of the front grid mixer: homogenize and mix raw materials through biaxial stirring; Through reamer extrusion, strengthen the mutual penetration of water between raw materials and improve the plasticity of materials. It is equipped with a mesh plate to increase the resistance, thereby improving the kneading efficiency of the raw materials, and can filter the grass roots and bark in the soil, reducing the blockage of the red solid /hollow brick machine mold and the probability of breaking the steel wire of the blank cutting machine.

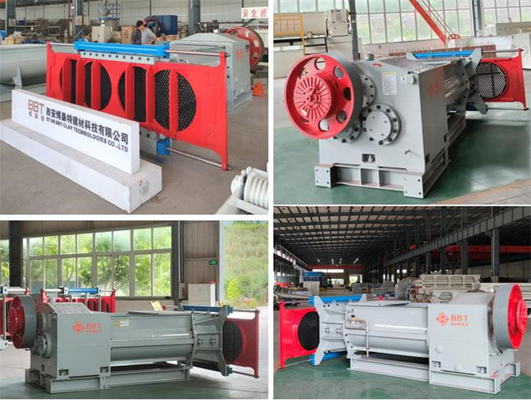

Big Hole Blocks Making Mixer Extruder Machine Filter Mixing Machinery 650mm Reamer Diameter 0



Filter mixer of technical paramerters:

Item TWJH-550 TWJH-750
Diameter of auger 550mm 750mm
Rotate speed for main shaft ≥30 rpm ≥30rpm
Motor Power 90+5.5 kw 132-160kw
Diameter for screen hole Customized building Customized building
Production capacity 45-50 m³/h 60-75 m³/h
Total weight of equipment 8900 kg 15800 kg

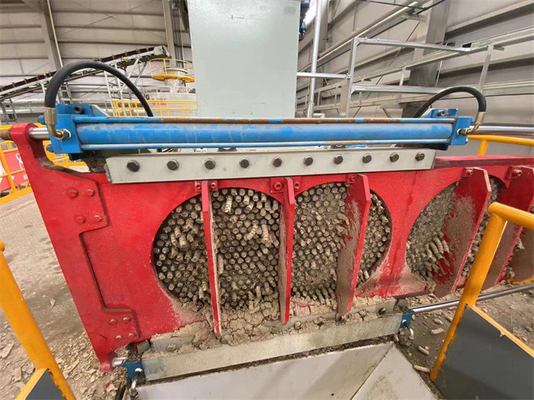

Big Hole Blocks Making Mixer Extruder Machine Filter Mixing Machinery 650mm Reamer Diameter 1

Big Hole Blocks Making Mixer Extruder Machine Filter Mixing Machinery 650mm Reamer Diameter 2
