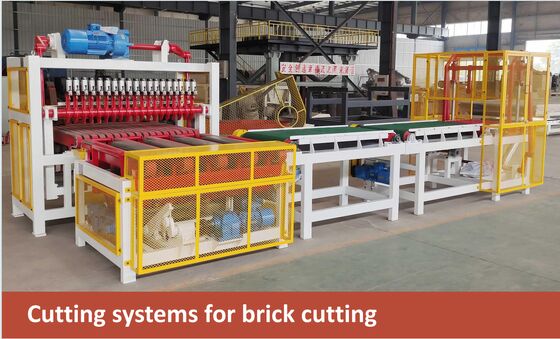

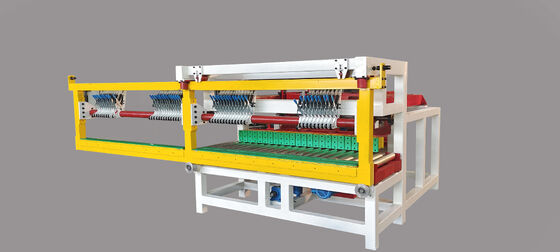

Full Automatic Brick Cutting System for Sintered Brick Factory
Full Automatic Brick Cutting System for Sintered Brick Factory
Basic Properties
Place of Origin:
CHINA
Brand Name:
BBT
Certification:
ISO9001
Model Number:
QTQP
Trading Properties
Minimum Order Quantity:
1 set
Price:
USD
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
10 SET PER MONTH
Product Summary
Full Automatic Brick Cutting System for Sintered Brick Factory Automatic Sintered Brick Cutting Equipment of Working Principle: The flat conveyor belt transports the mud bar to the preset position and then stops. Upon receiving the mud bar in-position signal, the crank-connecting rod mechanism ...
Product Custom Attributes
Highlight
Solid and Hollow Blocks Cutter
,Highly Fully Automatic Clay Brick Cutter
,Flat Conveyor Belt Clay Brick Cutter
Brick Making Machine:
Full Automatic Brick Cutting System For Sintered Brick Factory
Brick Type:
Solid ,hollow Block
Degree Of Automation:
Fully Automatic
Crank-connecting Rod Mechanism:
7.5kw/h
Flat Conveyor Belt:
1.55 Kw
Equipment External Dimensions:
1335*2885*2870mm
Product Description
Detailed Specifications & Features
Full Automatic Brick Cutting System for Sintered Brick Factory
Automatic Sintered Brick Cutting Equipment of Working Principle:
The flat conveyor belt transports the mud bar to the preset position and then stops. Upon receiving the mud bar in-position signal, the crank-connecting rod mechanism activates and vertically cuts the mud bar into green bricks of specified specifications.
The cut green bricks are then conveyed to the setting table for grouping and stacking, after which the mechanism resets and prepares for the next working cycle.
During operation, the steel wire tensioning device is equipped with an automatic alarm function for wire breakage.
The cut green bricks are then conveyed to the setting table for grouping and stacking, after which the mechanism resets and prepares for the next working cycle.
During operation, the steel wire tensioning device is equipped with an automatic alarm function for wire breakage.
Clay brick making line automatic clay brick cutter of technical parameters:
1. Maximum cutting frequency: 16 times/min;
2. Maximum mud strip length: 2.1 meters;
3. Maximum cutting height: 300mm;
4. Maximum cutting width: 600mm;
