New Type Crusher Mixing Front Grid Mixing Extruding Machinery For Clay Brick Factory

A new product clay mud mixer filter mixer machine TWJH-550 brick mixer extruder

New type crusher mixing front grid mixing extruding machinery for clay brick factory

TWJH550 front grid mixer extruder is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China.

It is equipped with a mesh plate to increase the resistance, thereby improving the kneading efficiency of the raw materials, and can filter the grass roots and bark in the soil, reducing the blockage of the brick machine mold and the probability of breaking the steel wire of the blank cutting machine.

Clay brick filter mixer extrtuder Working principle and structural characteristics:

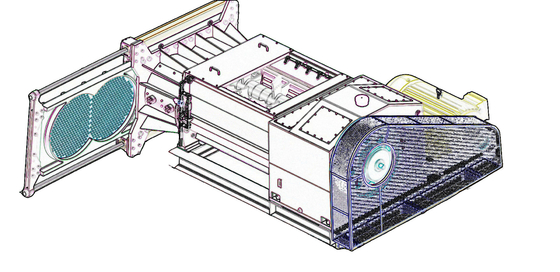

The main part of this series of equipment is mainly composed of transmission motor, pneumatic clutch, hard tooth surface reducer, gear box, stirring tank, stirring shaft, stirring knife, sealing cylinder, extrusion reamer, compressor head, sieve plate, hydraulic station, base and other parts composition. There is a water adding pipeline on the stirring tank, which is used to adjust the molding moisture content of the raw materials. A pneumatic clutch is arranged between the motor and the reducer, which is used for overload protection of frequent start and stop of the equipment. The cutter head and sieve plate of the stirring blade are cast with wear-resistant alloy, and are connected with the fixed seat by high-strength bolts, which is convenient for maintenance and replacement. The extrusion reamer and the inner and outer conical sleeves are all made of wear-resistant alloy steel, which is wear-resistant and easy to replace.

Filter mixer of technical paramerters:

Filter mixer for clay brick making plant machinery

Filter mixer machine in auto brick production line from BBT
