Front Grid Extruding Mixer For Clay Brick Making Plant Machinery
Clay Brick Making Plant Machinery
,Front Grid Extruding Mixer
BBT Front grid extruding mixer for clay brick making plant machinery
Clay brick mixer fiter mixing machine of Usage

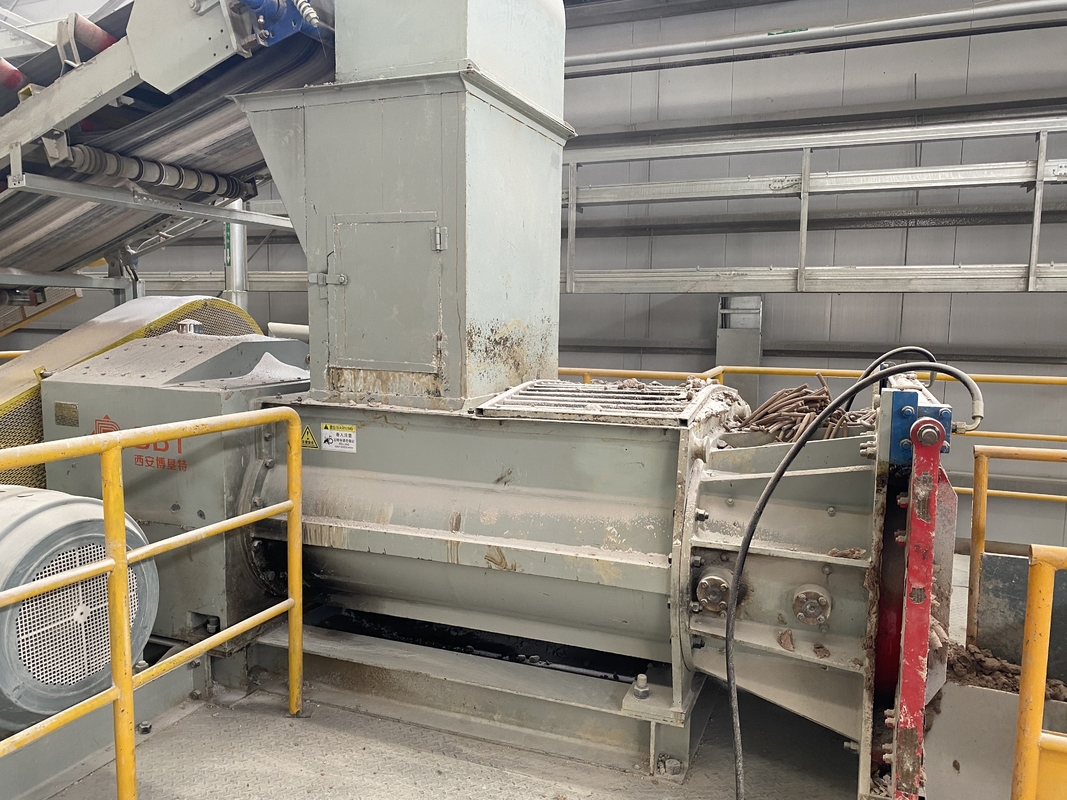

TWJH550 front grid mixer extruder
The function of the front grid mixer: homogenize and mix raw materials through biaxial stirring; Through reamer extrusion, strengthen the mutual penetration of water between raw materials and improve the plasticity of materials. It is equipped with a mesh plate to increase the resistance, thereby improving the kneading efficiency of the raw materials, and can filter the grass roots and bark in the soil, reducing the blockage of the brick machine mold and the probability of breaking the steel wire of the blank cutting machine. It is especially suitable for thin-walled high-quality product. The stencil is controlled by a hydraulic system, which can quickly clean and replace the stencil and improve production efficiency.
Clay brick production line mixing machine filter mixer
BBT Front grid extruding mixer for clay brick making plant machinery
Automatic clay brick mixer for brick making machine
Filter mixer of technical paramerters:
| Item | TWJH-550 | TWJH-750 |
| Diameter of auger | 550mm | 750mm |
| Rotate speed for main shaft | ≥30 rpm | ≥30rpm |
| Motor Power | 90+5.5 kw | 132-160kw |
| Diameter for screen hole | Customized building | Customized building |
| Production capacity | 45-50 m³/h | 60-75 m³/h |
| Total weight of equipment | 8900 kg | 15800 kg |
