Bentonite Producing Plant Machinery Wet Pan Mill For Bentonite Producing Equipment

Large Image : Bentonite Producing Plant Machinery Wet Pan Mill For Bentonite Producing Equipment

Product Details:

Place of Origin:	China
Brand Name:	BBT
Certification:	ISO9001
Model Number:	TWPM-185

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	wet pan mill by container sea shipment
Delivery Time:	20-30days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per year

Contact Now

Bentonite Producing Plant Machinery Wet Pan Mill For Bentonite Producing Equipment

Description

Item:	Bentonite Producing Plant Machinery Wet Pan Mill For Bentonite Producing Equipment	Model:	TWPM185
Production Capacity:	40-50	Roller Specification:	1850*700
Dimension:	530046006500	Total Weight（kg）:	54000
Width（mm）:	6400
Highlight:	Bentonite Producing Plant Wet Pan Mill , Bentonite Producing Equipment Wet Pan Mill

Bentonite Producing Plant Machinery Wet Pan Mill For Bentonite Producing Equipment

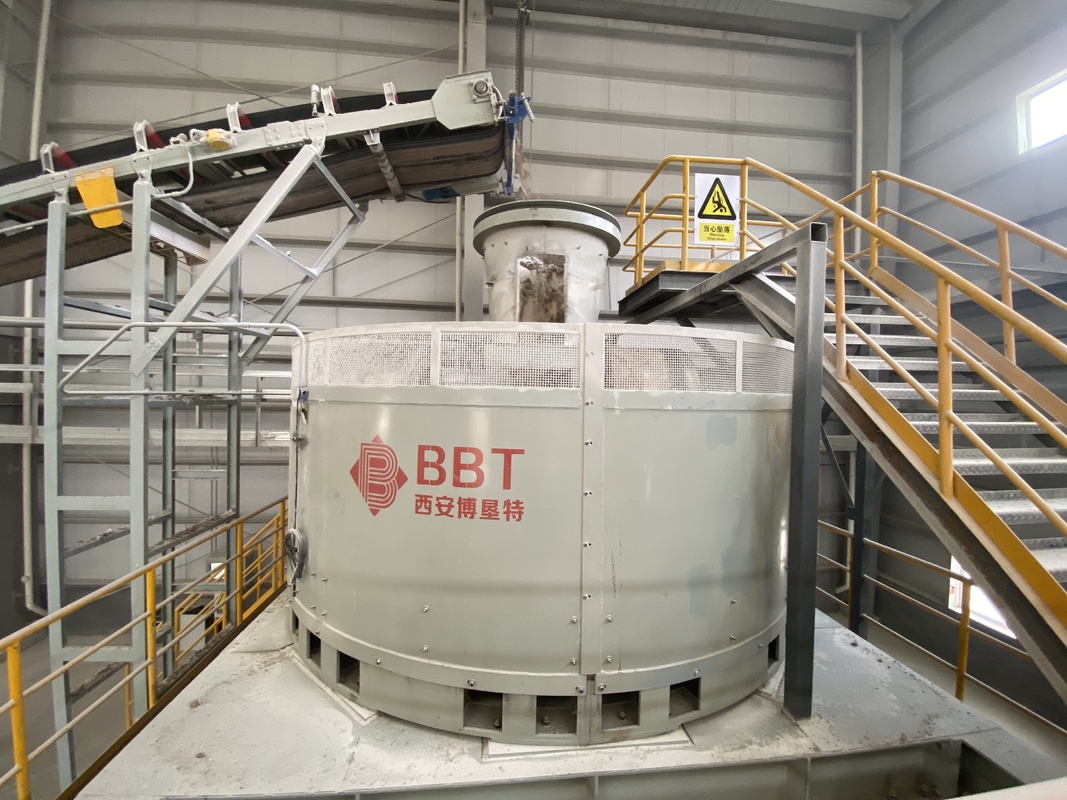

The wet pan mill is used in the bentonite factory

Bentonite producing plant machinery wet pan mill for bentonite producing equipment

Wet Pan Mill Raw Material Preparation in bentonite producing factory

Bentonite Producing Plant Machinery Wet Pan Mill For Bentonite Producing Equipment 0

Bentonite Producing Plant Machinery Wet Pan Mill For Bentonite Producing Equipment 1

Bentonite Producing Plant Machinery Wet Pan Mill For Bentonite Producing Equipment 2

Wet pan mill of technical parameters:

No.	Item	TWPM185	TWPM200
1	Roller size	1850700mm diameterwidth	2000900mm diameterwidth
2	Rotate speed for main shaft	≥13 rpm	≥13 rpm
3	Motor Power	90+2.2+2.2+1.5kw	142kw
4	Effective diameter of rollers	1850mm	2000mm
5	Rotating speed	≥29rpm	≥29rpm
6	Diameter for screen hole	Customized building	Customized building
7	Production capacity	40-50 m³/h	60-90 m³/h
8	Total weight of equipment	65200 kg	70000 kg
9	Dimensions	530046006500mm	670065006700mm

Wet Pan Mill Raw Material Preparation in bentonite producing plant

Bentonite Producing Plant Machinery Wet Pan Mill For Bentonite Producing Equipment 3

Bentonite Producing Plant Machinery Wet Pan Mill For Bentonite Producing Equipment 4

Bentonite Producing Plant Machinery Wet Pan Mill For Bentonite Producing Equipment 5

Tag:

Steel Wet Milling Machine,

Materials Wet Grinding Machine,

Materials Processing Gold Grinding Mill
