Dual-rotor Hammer Crusher Roller Crusher For Clay Brick Factory Crushing Machinery

Large Image : Dual-rotor Hammer Crusher Roller Crusher For Clay Brick Factory Crushing Machinery

Product Details:

Place of Origin:	CHINA
Brand Name:	BBT
Certification:	ISO9001
Model Number:	2PC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 13000-16000/set
Packaging Details:	hammer crusher by common packaging
Delivery Time:	10-15days
Payment Terms:	L/C, T/T
Supply Ability:	10 set per month

Contact Now

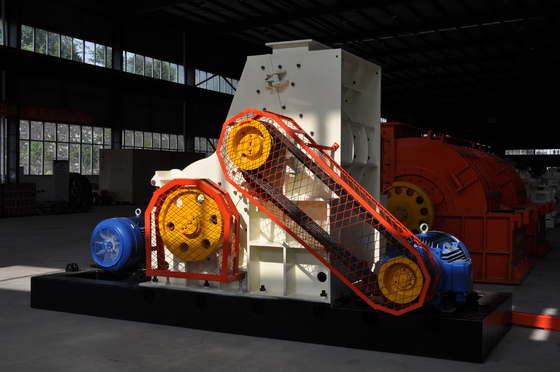

Dual-rotor Hammer Crusher Roller Crusher For Clay Brick Factory Crushing Machinery

Description

Item:	Dual-rotor Hammer Crusher Roller Crusher For Clay Brick Factory Crushing Machinery	Capacity:	80-160m3/hr
Power:	160+160kw	Material:	Clay, Mud, Soil
Brick Type:	Solid And Hollow	Output Size:	3mm
Material Feeding Size:	200mm
Highlight:	Hammer Crusher Roller Crusher , Dual-rotor Roller Crusher , Clay Brick Factory Roller Crusher

BBT Dual-rotor hammer crusher roller crusher for clay brick factory crushing machinery

Equipment performance Dual-Rotor Hammer Crusher with 2 models

- The equipment is made of full-steel structure with 2 motors

- It is designed as upper and lower rotor, and then the material hitting distance is longer.

- The casing is opened by hydraulic top, which is convenient and quick to replace the wearing parts.

- The body is equipped with a sealing strip to reduce dust at maximum. .

- The equipment designed without sieve plate, so that the leakage effect is good, and not blocked by the raw material.

- The hammer head and sieve plate are made of high chromium alloy, which improves the service life and reduces the replacement frequency.

Hammer Crusher

Dual-rotor Hammer Crusher Roller Crusher For Clay Brick Factory Crushing Machinery 0

Double tooth hammer crusher machine of technical parameters:

Specification Model	Capacity (m³/hr)	Power Requirement (kw)	Material Feeding size(mm)	Material Granularity(mm)
2PC-1200*1400	90-150	160+160	300	3
2PC-800*900	70-90	90+90	300	3

Dual-rotor hammer crusher using in the production line for raw material preparation, clay, stone, mineral and so on
