TCNL1045 Clay Brick Box Feeder Machine Efficiently Supply Clay Raw Material for Solid and Hollow Types Brick

TCNL1045 Clay Brick Box Feeder Machine Efficiently Supply Clay Raw Material for Solid and Hollow Types Brick
Basic Properties
Place of Origin: CHINA
Brand Name: BBT
Certification: ISO9001
Model Number: TCNL1045
Trading Properties
Minimum Order Quantity: 1
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 10 set box feeder per month
Tags:

Clay Brick Plate Feeding Machine

Automatic Clay Brick Box Feeder

Brick Plant Plate Feeder Machine
Product Summary
TCNL1045 clay brick box feeder machine CLAY BRICK MAKING PRODUCTION BOX FEEDER MACHINERY Full auto red clay brick box feeder technical parameters: Item Specification Production capacity 10-50m3/hr Center distance between the driving and tensionomg sprocket 4500mm Chain travel track center distance ...
Product Custom Attributes
Highlight

Hollow Clay Brick Box Feeder Machine

,

Clay Brick Box Feeder Machine

,

Solid Clay Brick Box Feeder Machine

Name:
TCNL1045 Clay Brick Box Feeder Machine
Function:
Supply Clay Raw Material Feeder Machinery
Place:
Clay Brick Making Factory
Brick Type:
Solid And Hollow Types Brick
Capacity:
20-60m3/hr
Main Parts:
Steel , Roller ,motor
Product Description
Detailed Specifications & Features

TCNL1045 clay brick box feeder machine

CLAY BRICK MAKING PRODUCTION BOX FEEDER MACHINERY

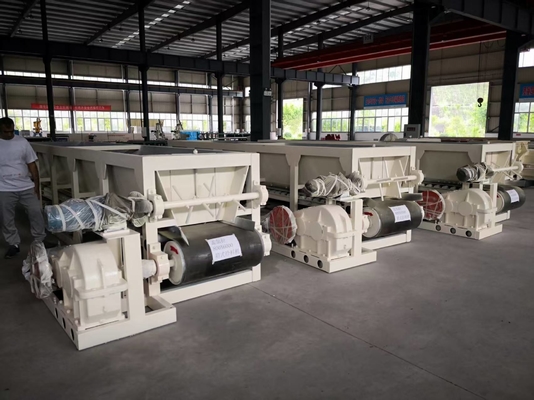

TCNL1045 Clay Brick Box Feeder Machine Efficiently Supply Clay Raw Material for Solid and Hollow Types Brick 0

Full auto red clay brick box feeder technical parameters:

Item Specification
Production capacity 10-50m3/hr
Center distance between the driving and tensionomg sprocket 4500mm
Chain travel track center distance 1175mm
Weight 6200kg
Dimensions 6015*2500*1750 mm
Power 4+4kw



TCNL1045 Clay Brick Box Feeder Machine Efficiently Supply Clay Raw Material for Solid and Hollow Types Brick 1

Clay brick box feeder with plate type box feeding machinery

TCNL1045 plate feeder is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China. The machine is reasonable in structure, stable in operation, low in failure rate, and easy to use and maintain. This product is widely used in mining, building materials, metallurgy and other industries to achieve uniform feeding and batching, and can also be used in other occasions where similar sharp block materials are uniformly fed.

Clay brick box feeder machinery price with large capacity brick making plant equipment

TCNL1045 Clay Brick Box Feeder Machine Efficiently Supply Clay Raw Material for Solid and Hollow Types Brick 2

TCNL1045 Clay Brick Box Feeder Machine Efficiently Supply Clay Raw Material for Solid and Hollow Types Brick 3

Working principle and structural characteristics

The power of the plate feeder is driven by the motor of the transmission device, and after being decelerated by the reducer, the power is transmitted to the driving shaft. At that time, the two sprockets mounted on the drive shaft rotate with the drive shaft. In addition, the two chains meshing with the head and tail sprockets also move forward with the rotation of the driving sprocket and the tail wheel, and the chain plate is installed on the chain to move synchronously with the chain. The function of the chain plate is to afford the full weight of the material. With the movement of the chain, the chain plate also completes the process of transporting the material.

TCNL1045 Clay Brick Box Feeder Machine Efficiently Supply Clay Raw Material for Solid and Hollow Types Brick 4

TCNL1045 clay brick box feeder machine
