Clay Brick Box Feeder Machine for Brick Production Line

Large Image : Clay Brick Box Feeder Machine for Brick Production Line

Product Details:

Place of Origin:	CHINA
Brand Name:	BBT
Certification:	ISO9001
Model Number:	TCNL1045

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	box feeder machinery by container sea shipment
Delivery Time:	10 days
Payment Terms:	L/C, T/T
Supply Ability:	10 set box feeder per month

Contact Now

Clay Brick Box Feeder Machine for Brick Production Line

Description

Name:	Clay Brick Box Feeder Machine For Brick Production Line	Bok Function:	Supply Clay Raw Material Feeder Machinery
Place:	Clay Brick Making Factory	Brick Type:	Solid And Hollow Types Brick
Capacity:	20-60m3/hr	Main Parts:	Steel , Roller ,motor
Highlight:	Clay Box Feeder Machine , Bricks Making Machinery Box Feeder Machine , Semi Automatic Box Feeder Machine

Clay Brick Box Feeder Machine for Brick Production Line

Clay brick box feeding machine of description:

This clay brick box feeder machine is specially designed for continuous and stable feeding in clay brick production lines.

It features a sturdy structure, reliable operation, low energy consumption, and easy maintenance.

Suitable for various brick making plants, it ensures uniform material supply, improves production efficiency, and matches well with different brick making equipment.

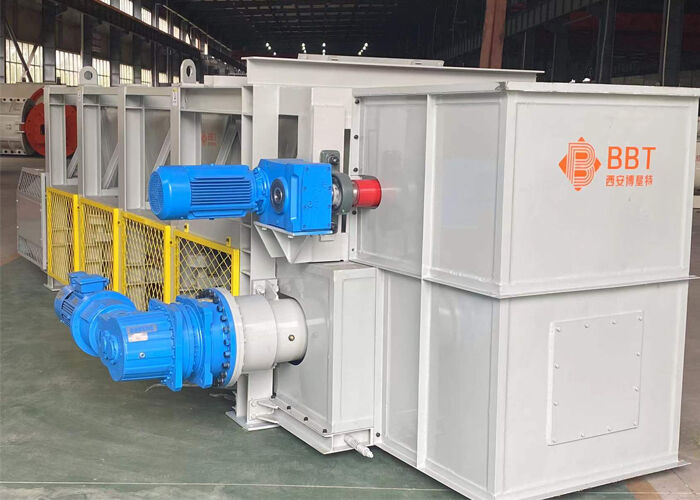

Clay Brick Box Feeder Machine for Brick Production Line 0

Full auto red clay brick box feeder technical parameters:

Item	Specification
Production capacity	10-50m3/hr
Center distance between the driving and tensionomg sprocket	4500mm
Chain travel track center distance	1175mm
Weight	6200kg
Dimensions	601525001750 mm
Power	4+4kw

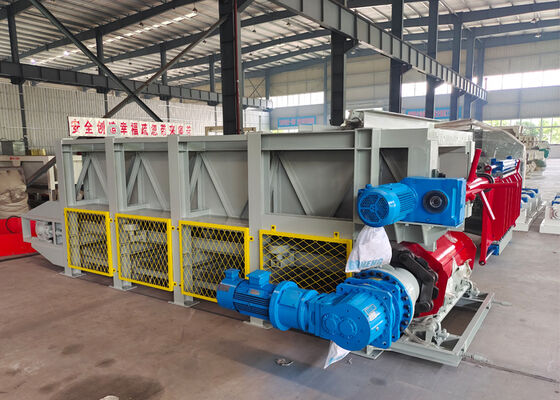

Clay Brick Box Feeder Machine for Brick Production Line 1

Working Principle and Structural Characteristics:

The plate feeder is driven by a motor. After being decelerated by the reducer, power is transmitted to the driving shaft, making the sprockets rotate.

The chains meshed with the sprockets move forward synchronously, driving the chain plates to run steadily.

The chain plates bear the full weight of the materials and complete the stable conveying of materials during operation.

Clay brick box feeder with plate type box feeding machinery of processing:

Clay Brick Box Feeder Machine for Brick Production Line 2

Clay Brick Box Feeder Machine for Brick Production Line 3

Clay Brick Box Feeder Machine for Brick Production Line 4
