Mixing Clay Raw Materials TWGD3300 Double Shaft Extruding Mixer For Clay Brick Making Line Machinery
Mixing Clay Raw Materials TWGD3300 Double Shaft Extruding Mixer For Clay Brick Making Line Machinery
Basic Properties
Place of Origin:
China
Brand Name:
bbt
Certification:
ISO9001
Model Number:
MDE
Trading Properties
Minimum Order Quantity:
1 set
Payment Terms:
L/C, T/T
Supply Ability:
10 set per mouth
Product Summary
BBT TWGD Model Double Shaft Extruding Mixer for Clay Brick Production Line The TWGD series double shaft extruding mixer is an innovative independently developed device, designed by integrating international advanced technology and domestic industry experience, keeping a leading edge in the brick ...
Product Custom Attributes
Highlight
Clay Raw Materials Double Shaft Mixer
,TWGD3300 Double Shaft Mixer
Item:
TWGD3300 Double Shaft Extruding Mixer For Clay Brick Making Line Machinery
Mixing Raw Materials:
Mixing Clay Raw Materials
Mixer Capacity:
20-30m3/hr
Stirrer Types:
Paddle Mixer
Additional:
Milling
Raw Materials:
Clay ,mud,soil 1 Sets
Product Description
Detailed Specifications & Features
BBT TWGD Model Double Shaft Extruding Mixer for Clay Brick Production Line
The TWGD series double shaft extruding mixer is an innovative independently developed device, designed by integrating international advanced technology and domestic industry experience, keeping a leading edge in the brick machinery field.
It is professional raw material processing equipment, perfectly applicable to sintered brick production lines that take clay, shale, coal gangue, sludge and other materials as raw materials. This machine integrates material stirring, extruding and kneading functions to fully blend raw materials with water, effectively enhancing material plasticity and molding performance for subsequent brick forming.
Core Advantages:
1.High Efficiency & Wear Resistance
Equipped with high wear-resistant alloy spiral blades, it delivers high mixing efficiency with a compact footprint for space-saving installation.
2.Low Noise & Stable Transmission
Adopts reducer driving structure to ensure stable shaft rotation, low operating noise and reliable running performance.
3.Optimized & Adjustable Structure
Featured with an upgraded rotor design, the minimum gap between rotor and mixing chamber is adjustable down to 0mm, realizing more uniform mixing results.
TWGD3300 Double Shaft Extruding Mixer Clay Raw Material Mixer for Brick Production Line
Brick mixing machine technical parameters:
| Specification Model | Capacity (m³/hr) | Power Requirement (kw) | Rotate Speed(t/m) | Exterior Dimension (mm) |
| TWGD3300 | 22-26 | Y6-45 | 35 | 5170*1470*870 |
| TWGD3600 | 23-31 | Y6-55 | 35 | 5480*1520*930 |
| TWGD4000 | 28-41 | Y6-75 | 35 | 5500*1520*980 |
| TWGD5000 | 33-47 | Y6-110 | 35 | 5800*1600*1200 |
| TWGD4100 | 37-41 | Y6-75 | 35 | 5170*1470*870 |

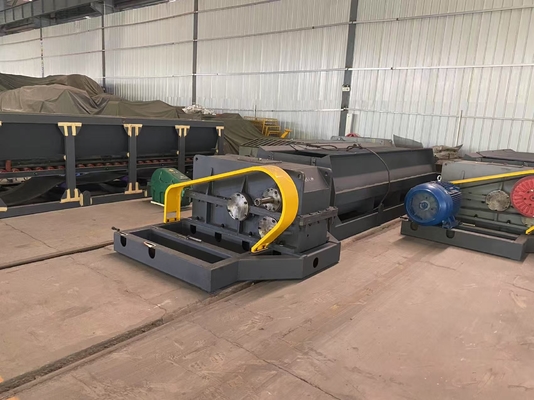

BBT TWGD model double shaft extruding mixer for clay brick making line machinery
