TCNL Series Automatic Plate Box Feeder for Clay Brick Production Line

Large Image : TCNL Series Automatic Plate Box Feeder for Clay Brick Production Line

Product Details:

Place of Origin:	CHINA
Brand Name:	BBT
Certification:	ISO9001
Model Number:	TCNL model

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	box feeder machinery by container sea shipment
Delivery Time:	10 days
Payment Terms:	L/C, T/T
Supply Ability:	10 set box feeder per month

Contact Now

TCNL Series Automatic Plate Box Feeder for Clay Brick Production Line

Description

Name:	TCNL Series Automatic Plate Box Feeder For Clay Brick Production Line	Working Function:	Supply Clay Raw Materials
Production Capacity:	10-50 M3/hour	Brick Type:	Solid And Hollow Blocks
B.Center Distance Between The Driving And Tensioning Sprocket:	4500 Mm	Chain Travel Track Center Distance:	1175 Mm
Power:	8 Kw
Highlight:	TCNL Series Box Feeder , Clay Brick Making Box Feeder , TCNL Series Plate Feeder

TCNL Series Automatic Plate Box Feeder for Clay Brick Production Line

Clay Brick Box Feeding Machine of Usage and Characteristics:

The plate type box feeder is a key feeding machine for hard materials in the fired brick production line. It can ration and evenly feed processed materials to other equipment at a fixed rate, and is also suitable for feeding raw materials and other supplementary materials.

Equipped with a chain feeding structure and a gear locking device, the machine features strong driving force and no slippage during operation. The feeding plate is made of 16 Mn steel plate, which effectively prevents material abrasion to the plate.

The machine mainly consists of a motor, reducer, driving roller, driven roller and conveying chain plate. Power is transmitted from the belt pulley to the reducer, driving the roller to run, and the materials are fed to downstream equipment via the conveying chain.

This machine is mainly used for constant feeding before grinding or after aging, making it a key piece of equipment in the whole production line. It can work with a bulldozer to store and continuously feed clay.

The clay feeder includes four functional parts: storage, driving, conveying and crushing. It is mainly divided into belt type box feeder and steel plate type box feeder.

As a core feeding equipment, the box feeder balances and rations the input materials. By adjusting the height of the baffle and the speed of the conveyor belt, the feeding volume can be precisely controlled. It can also crush large soft clay lumps during feeding.

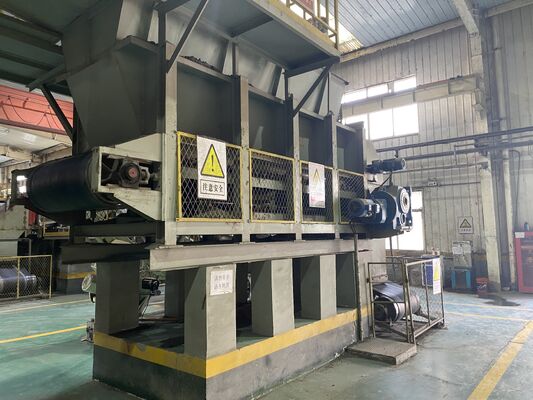

CLAY BRICK MAKING PRODUCTION BOX FEEDER MACHINERY TCNL Series Automatic Plate Box Feeder for Clay Brick Production Line 0

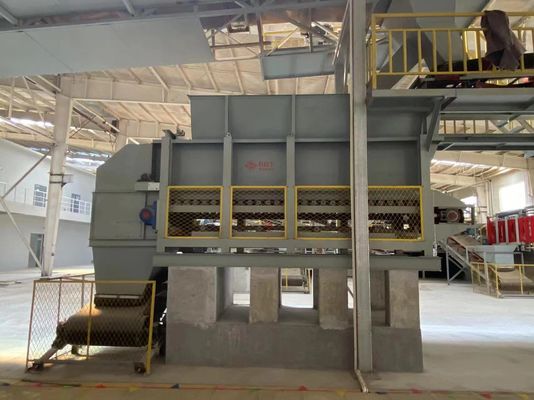

TCNL Series Automatic Plate Box Feeder for Clay Brick Production Line 1

Full auto red clay brick box feeder technical parameters:

Item	Specification
Production capacity	10-50m3/hr
Center distance between the driving and tensionomg sprocket	4500mm
Chain travel track center distance	1175mm
Weight	6200kg
Dimensions	601525001750 mm
Power	4+4kw

TCNL Series Automatic Plate Box Feeder for Clay Brick Production Line 2

TCNL Series Automatic Plate Box Feeder for Clay Brick Production Line 3

TCNL Series Automatic Plate Box Feeder for Clay Brick Production Line 4

TCNL series plate feeder clay brick making box feeder machinery
