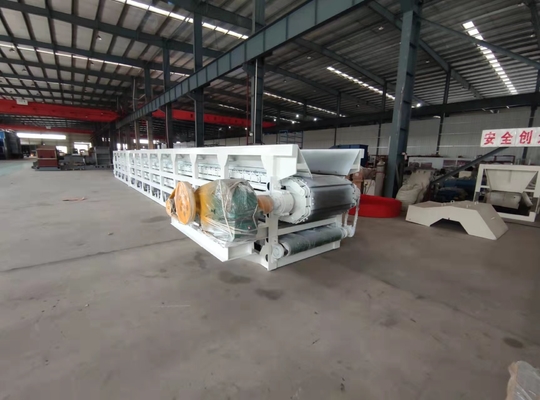

TCNL model brick box feeder machine
TCNL model Chain steel type box feeder
TCNL4.5/1000 plate feeder is a new product developed by our company on the basis of absorbing the advanced experience of similar products abroad, and it occupies a leading position among similar products in China. The machine is reasonable in structure, stable in operation, low in failure rate, and easy to use and maintain. This product is widely used in mining, building materials, metallurgy and other industries to achieve uniform feeding and batching, and can also be used in other occasions where similar sharp block materials are uniformly fed.
Brick box feeder of main performance
Production capacity: 10-50 m3/h
Center distance between the driving and tensioning sprocket: 4500 mm
Chain travel track center distance: 1175 mm
Weight: 6200kg
Dimensions: 6015*2500*1750 mm
Power: 4kw
Optional
1. Transmission direction selection: right drive/left drive;
2. Whether it is equipped with a mud stick.
Clay brick box feeding machinery working principle and structural characteristics
The power of the plate feeder is driven by the motor of the transmission device, and after being decelerated by the reducer, the power is transmitted to the driving shaft. At that time, the two sprockets mounted on the drive shaft rotate with the drive shaft. In addition, the two chains meshing with the head and tail sprockets also move forward with the rotation of the driving sprocket and the tail wheel, and the chain plate is installed on the chain to move synchronously with the chain.
The function of the chain plate is to afford the full weight of the material. With the movement of the chain, the chain plate also completes the process of transporting the material.
The gate can be raised and lowered manually to control the amount of material discharged, the scraper at the bottom can clean the raw materials stuck on the chain plate, and the mud stick is driven by the motor and decelerated by the reducer to make the material run more uniformly and smoothly.
Box feeder structural characteristics
The plate feeder is mainly composed of the following components:
Transmission system: electric motor, reducer, driving shaft, driven shaft, sprocket, chain plate.
Other devices: silo gate, scraper, mud stick, rack, silo, guard.
Brick box feeder machine technical parameters:
| Production capacity | Center distance | Chain travel track center distance | Weight | Dimensions | Power |
| 10-50 m3/h | 4500 mm | 1175 mm | 6200kg | 6015*2500*1750 mm | 4kw |
