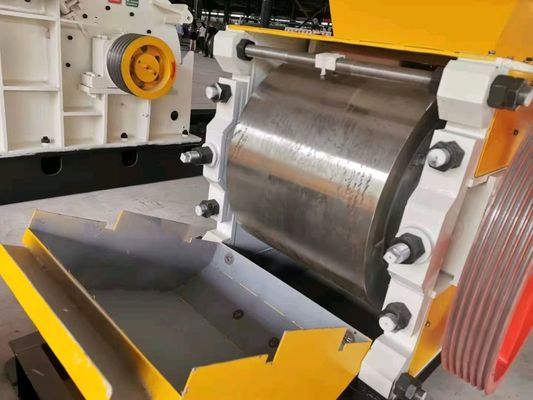

Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter

Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter
Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter
Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter

Large Image :  Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter

Product Details:
Place of Origin: China
Brand Name: BBT
Certification: ISO9001
Model Number: GS1080
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 16000USD
Packaging Details: clay bricks fine roller crusher by container sea shipment
Delivery Time: 10~115 days
Payment Terms: T/T
Supply Ability: 5 sets per month
Contact Now

Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter

Description
Features: High Crushing Efficiency, Low Energy Consumption, Adjustable Discharging Size, Easy Maintenance, Etc. Material Feeding Size: 200mm
Weight: 7000kg Required Power: 110+75
Roller Diameter: 400mm Keyword: Mine Double Roll Crusher
Hardness Of Roll: ≥57HRC Feeding Granularity: 500mm
Materials Crusher: Steel Brick Raw Material: Clay Soil Mud Shale
Exterior Dimension: 1650*1748*1520mm Feature: Low Power Consumption
Discharging Size: 2-10mm Roller Length: 250mm
Highlight:

clay brick roller crusher machine

,

double rolling crusher for brick making

,

roll mill crusher with warranty

Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter

Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter 0

Roller Crusher Machine for Clay Brick Production
High-performance double rolling crusher designed for clay brick making plants, featuring precision crushing and improved material plasticity.

High Fine Grinder Roller Crusher
Custom-built for fine crushing of brick raw materials to achieve optimal particle composition and enhanced plasticity. Ideal for materials with moisture content ≤25% and maximum feed size below 20mm.

Operating Specifications:
  • Suitable crushing ratio: 1:4-6
  • Maximum feed size: 20mm
  • Excessive moisture or oversized feed reduces equipment performance
GS1080 Model Technical Specifications:
Parameter Specification
Capacity 35–50 m³/hr
Power 55+75(90) kW
Weight 14800 kg
Overall Dimension (L×W×H) 6200×4000×1700 mm



Modular roller ring and hub design with high-strength bolt connection for easy maintenance. Manganese steel construction provides exceptional wear resistance, strength, and repairability.



Roller of technical datas:
Component Specification
Roll Surface Thickness ≥140 mm
Roll Gap ＜1.5 mm
Roll Hardness ≥53 HRC
Roll Dimensions (Diameter × Width) 1000×800 mm

Complete Clay Brick Production Solutions
XI'AN BBT CLAY TECHNOLOGIES CO.,LTD provides comprehensive automatic clay brick making equipment and systems:
Production Line Components
  • Raw Material Processing: Belt conveyors, box feeders, roller crushers, fine grinders, jaw crushers, wet pan mills, mixers.
  • Brick Molding: Vacuum extruders, automatic brick cutting systems.
  • Automation Systems: Brick loading/unloading machines, stacking machines, robotic setting machines.
  • Drying & Firing: Tunnel kilns, combustion systems, dryer equipment.
  • Project Services: Complete brick plant design and technical support.

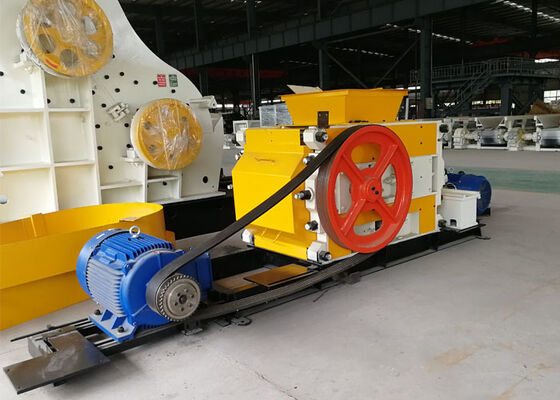

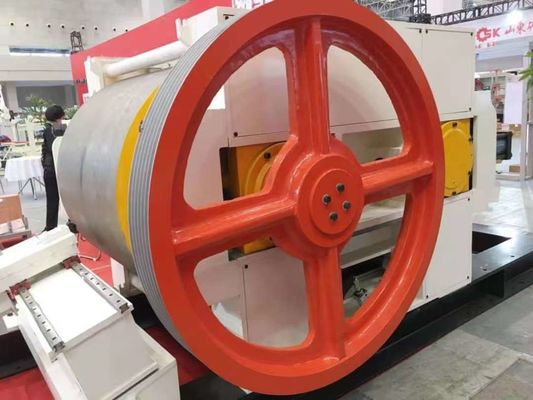

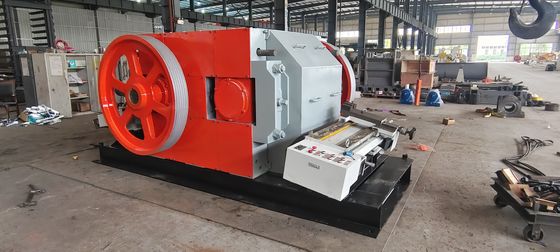

Production & Delivery of High Fine Crushing Roller Crusher

Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter 1

Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter 2

 Automatic Roller Crusher Machine for Clay Brick Making | 500mm Feed Size, 400mm Roller Diameter 3
