2026 new technical design clay brick box feeding machine with belt type for brick making project
clay brick box feeding machine
,belt type brick making machine
,box feeder machine with warranty

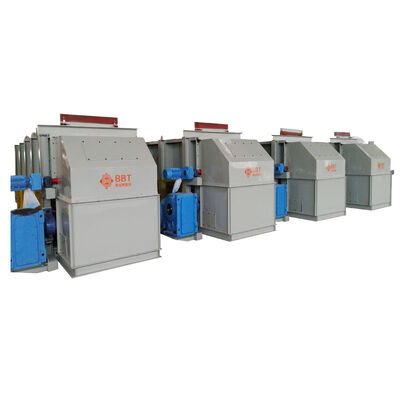

BBT supply 2026 new technical design clay brick box feeding machine with belt type for brick making project
The belt box feeders are a uniform quantitative materials feeding equipment, by adjusting the fixed discharge end, to control the feeding quantity of raw materials (such as clay, coal, gangue, bentonite and other minerals materials).
The belt box feeders are composed of a frame housing part, a conveying part and a toggle part.
The conveying part is powered by the motor to drive the reducer to reduce the speed and increase the torque, and the reducer drives the active drum to rotate and drive the conveyor belt to run.
The conveying part is powered by the motor, which drives the reducer to reduce speed and increase torque. The reducer drives the active roller to rotate and drives the conveyor belt to run. The toggle part is driven by a reduction motor, the toggle shaft rotates, and the material bar will evenly discharge the mud.
The belt conveyor belt without belt interface, belt operation process in the belt uniform force does not exist uneven force caused by belt cracking; Secondly, annular conveyor belt transport balance, the use of small elongation. The nylon material of the conveyor belt has the characteristics of thin belt body, high strength, impact resistance, adhesion between layers, excellent flexibility and long service life.
BBT supply clay brick making plant box feeder machine
The box feeder of technical datas:
| Technical Parameters | TCNB800 | TCNB1000 | TCNB1200 | |
| Production capacity | m3/h | 15-50 | 50-80 | 80-110 |
| Driving drum diameter | mm | 500 | 500 | 500 |
| Belt width | mm | 800 | 1000 | 1200 |
| Center distance of drum | mm | 4500 | 4500 | 4550 |
| Powered drum power | Kw | 5.5 | 7.5 | 7.5 |
| Breaker shaft power | Kw | 3.0 | 4.0 | 5.5 |
| Approximate weight | Kg | 4,800 | 5,700 | 6,100 |
BBT supply full auto clay brick making line machinery and equipment
TCNL series of Chain full steel type box feeder
TWGD series of double shaft mixer
GS series of roller crusher
TRA series of double tooth roller crusher
TWJH series of front grid extruding mixer
TWPM series of wet pan mill
QTQG series of cutter
EV series of vacuum extruder
Robot setting machine
Brick machine spare parts
BBT provide full automatic clay brick making project design, construction and technical supporting.
