The wet pan mill clay bricks raw materials pan mill edge runner mill
wet pan mill for clay bricks
,edge runner mill raw materials
,wet pan mill with warranty
The wet pan mill clay bricks raw materials pan mill edge runner mill

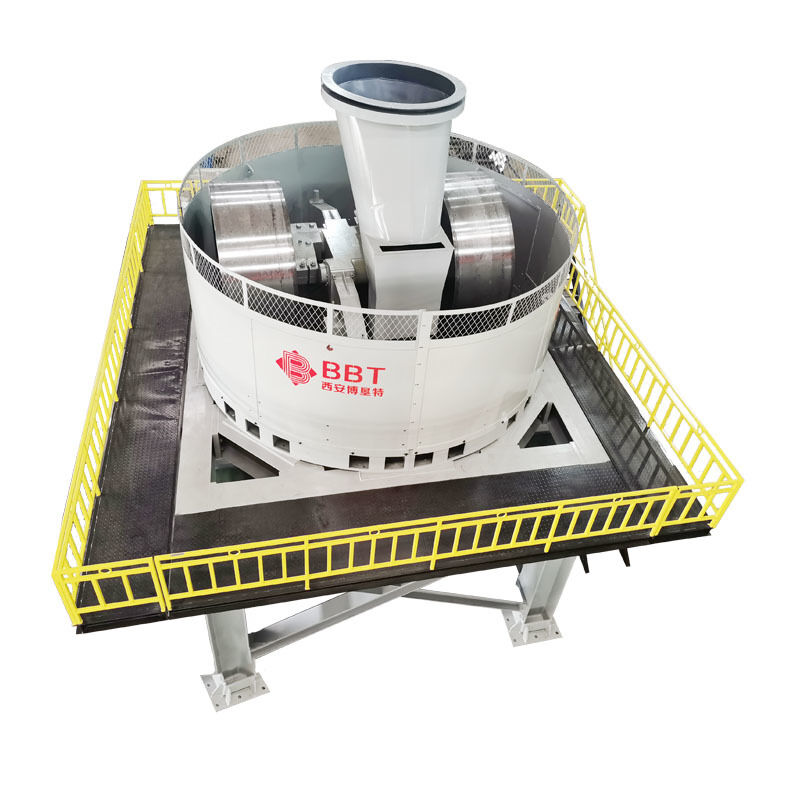

The wet pan mill is the most universal and best-performing machine for wet clays and other minerals grinding and crushing. The wet pan mill is commonly used as clay brick making machine and to process and grind other minerals and wastes.
The wet pan mill is mainly used for medium and fine crushing of materials, and can crush medium-hard clay, clinker, silica, coal gangue, fly ash, shale, sludge, coal slime, etc., mixing a variety of materials and other functions. The material particles crushed by the roller are approximately spherical, and the edges and corners are not sharp.
The wet pan mill is easy to maintain daily and the feeding size is not too strict. The equipment is self-heavy, the overall rigidity is strong, the impact resistance is strong, and the equipment operation is safe and stable.
The wet pan mill in auto brick making project
Wet Pan Mill Raw Material Preparation in bentonite producing factory
Wet pan mill manufacturing
Wet Pan Mill Raw Material Preparation in bentonite producing plant
Wet pan mill of technical parameters:
| Technical Parameters | PM160 | PM185 | PM200 | |
| Production capacity | t/h | 50-65 | 60-80 | 85-120 |
| Diameter and width of runners | mm | 1,600*700 | 1,850*700 | 2,000*900 |
| Weight of inner/outer runners | Kg | 5,700*6,500 | 8,500/12,750 | 12,000/15,000 |
| Required power | Kw | 55 | 98 | 142 |
| Approximate total weight | Kg | 46,000 | 54,000 | 70,000 |
| Total length | mm | 4,000 | 6,700 | 6,700 |
| Total width | mm | 4,000 | 6,400 | 6,500 |
| Total Height | mm | 6,200 | 6,460 | 6,700 |
