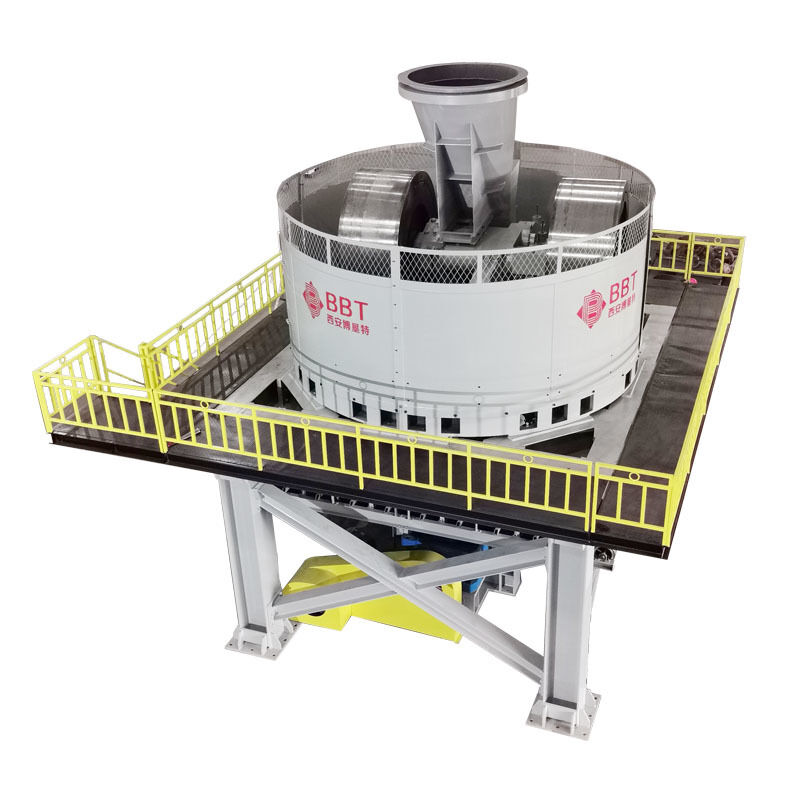

Clay brick making line raw materials mill wet pan mill block making equipment

Clay brick making line raw materials mill wet pan mill block making equipment
Basic Properties
Place of Origin: China
Brand Name: BBT
Certification: ISO9001
Model Number: TWPM-185
Trading Properties
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 10 sets per year
Tags:

Steel Wet Milling Machine

Materials Wet Grinding Machine

Materials Processing Gold Grinding Mill
Product Summary
Clay brick making line raw materials mill wet pan mill block making equipment The wet pan mill is the most universal and best-performing machine for wet clays and other minerals grinding and crushing. The wet pan mill is commonly used as clay brick making machine and to process and grind other ...
Product Custom Attributes
Highlight

clay brick making wet pan mill

,

wet pan mill block equipment

,

raw materials mill brick making

Wet Pan Mill:
Clay Brick Making Line Raw Materials Mill Wet Pan Mill Block Making Equipment
Model Choice:
TWPM185
Production:
40-50
Roller Specification:
1850*700
Dimension:
5300*4600*6500
Total Weight（kg）:
54000
Width（mm）:
6400
Product Description
Detailed Specifications & Features

Clay brick making line raw materials mill wet pan mill block making equipment

The wet pan mill is the most universal and best-performing machine for wet clays and other minerals grinding and crushing. The wet pan mill is commonly used as clay brick making machine and to process and grind other minerals and wastes.



The wet pan mill is mainly used for medium and fine crushing of materials, and can crush medium-hard clay, clinker, silica, coal gangue, fly ash, shale, sludge, coal slime, etc., mixing a variety of materials and other functions. The material particles crushed by the roller are approximately spherical, and the edges and corners are not sharp.



The wet pan mill is easy to maintain daily and the feeding size is not too strict. The equipment is self-heavy, the overall rigidity is strong, the impact resistance is strong, and the equipment operation is safe and stable.



The wet pan mill in auto brick making project

Clay brick making line raw materials mill wet pan mill block making equipment 0



Wet Pan Mill Raw Material Preparation in bentonite producing factory

Clay brick making line raw materials mill wet pan mill block making equipment 1



Wet pan mill manufacturing

Clay brick making line raw materials mill wet pan mill block making equipment 2



Clay brick making line raw materials mill wet pan mill block making equipment 3



Clay brick making line raw materials mill wet pan mill block making equipment 4



Wet Pan Mill Raw Material Preparation in bentonite producing plant

Clay brick making line raw materials mill wet pan mill block making equipment 5



Wet pan mill of technical parameters:

Technical Parameters   PM160 PM185 PM200
Production capacity t/h 50-65 60-80 85-120
Diameter and width of runners mm 1,600*700 1,850*700 2,000*900
Weight of inner/outer runners Kg 5,700*6,500 8,500/12,750 12,000/15,000
Required power Kw 55 98 142
Approximate total weight Kg 46,000 54,000 70,000
Total length mm 4,000 6,700 6,700
Total width mm 4,000 6,400 6,500
Total Height mm 6,200 6,460 6,700






BBT supply full automatic clay brick making machine and equipment :

TCNL series of Chain full steel type box feeder

TWGD series of double shaft mixer

GS series of roller crusher

TRA series of double tooth roller crusher

TWJH series of front grid extruding mixer

TWPM series of wet pan mill

QTQG series of cutter

EV series of vacuum extruder

Robot setting machine

Brick machine spare parts

BBT provide full automatic clay brick making project design, construction and technical supporting.



WELCOME TO CONTACT WITH BBT

XI’AN BBT CLAY TECHNOLOGIES CO.,LTD

We-chat: claybbt

Whats app: 0086 176 2908 6758

BBT web-site:

www. claybbt.com

www.claybricksmakingmachines.com

www.claybbt.ru

All videos of different model machines and production lines are available for viewing:

YouTube: https://www.youtube.com/@BBTChina

Facebook: https://www.facebook.com/bbt15/

Linkedin:https://www.linkedin.com/in/jrowlin/
